Πρίζα σύνδεσης οπτικών ινών DeLOCK 2 x SC/APC Simplex 20 m καλώδιο

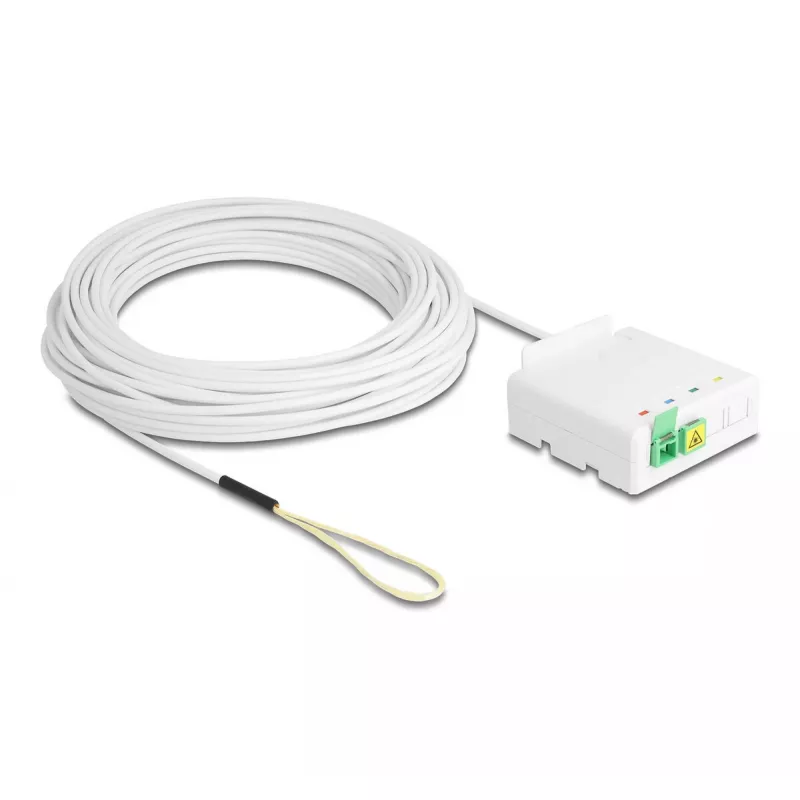

The DeLOCK Optical Fiber Connection Box 2 x SC/APC Simplex 20 m Cable is a pre-assembled FTTH connection set designed for quick and secure installation of fiber optic networks in buildings. The product includes a connection box prepared for wall and DIN rail mounting and a 20 m G.657.A1 drop cable wound on a reel inside a cardboard dispenser box, with the cable already terminated and routed into the connection box for immediate use.

Advantages

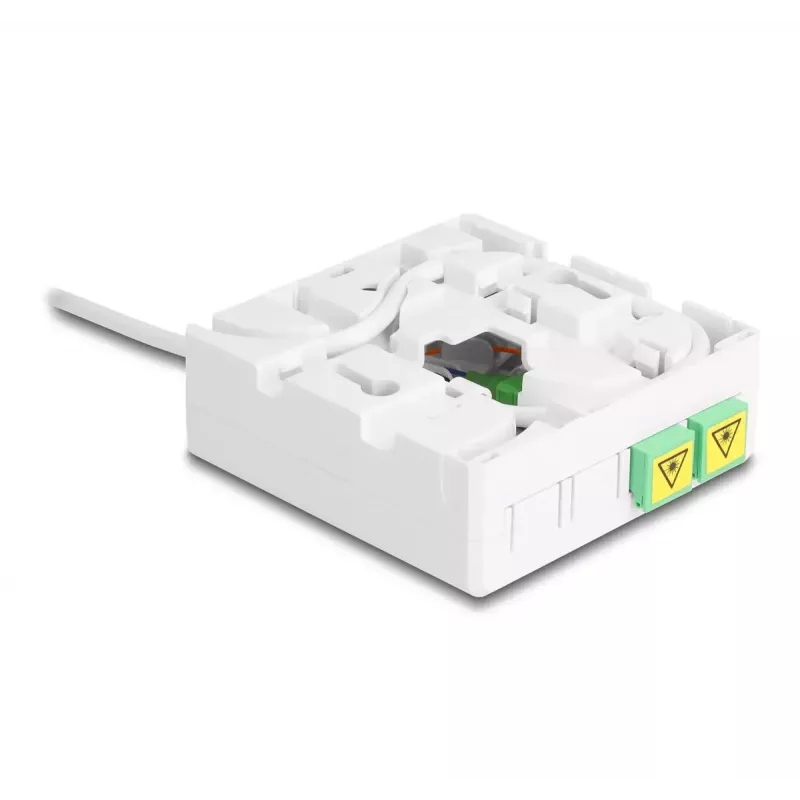

The connection box supports fastening to flush-mounted and cavity wall boxes and features integrated clips for horizontal and vertical mounting on a 35 mm DIN rail. The included 20 m G.657.A1 drop cable is pre-assembled with 2 x SC/APC Simplex terminations and is supplied on a reel in a closed cardboard box that functions as a dispenser for controlled cable pull-out during installation. This configuration reduces installation time and helps maintain fiber integrity.

Suitable for

• FTTH subscriber connections in residential and small commercial buildings
• Indoor fiber terminations and short-distance patching
• Wall-mounted or DIN-rail-mounted distribution points

Key specifications

• Connectors: 2 x SC/APC Simplex
• Drop cable length: 20 m
• Fiber type: G.657.A1
• Mounting: wall (flush-mounted and cavity wall boxes) and 35 mm DIN rail (horizontal and vertical)
• Manufacturer: DELOCK, MPN: 85932, EAN: 4043619859320

How to use

Mount the connection box to a suitable flush-mounted or cavity wall box or clip it onto a 35 mm DIN rail using the integrated clips. Place the cardboard reel box where the cable run will begin and pull the required length of the pre-terminated 20 m drop cable out of the dispenser. Route the cable into the connection box and make the SC/APC terminations available at the internal adapter points for connection to customer or building equipment. Secure any excess cable inside the box according to site bend-radius requirements.

Recommendations

Handle the G.657.A1 fiber with standard fiber-optic precautions: avoid tight bends, protect connector endfaces from contamination, and perform endface inspection and cleaning before making final connections. Use the cardboard dispenser box to reduce stress on the cable during installation.
