Πρίζα εξόδου DeLOCK 62869 Μαύρο

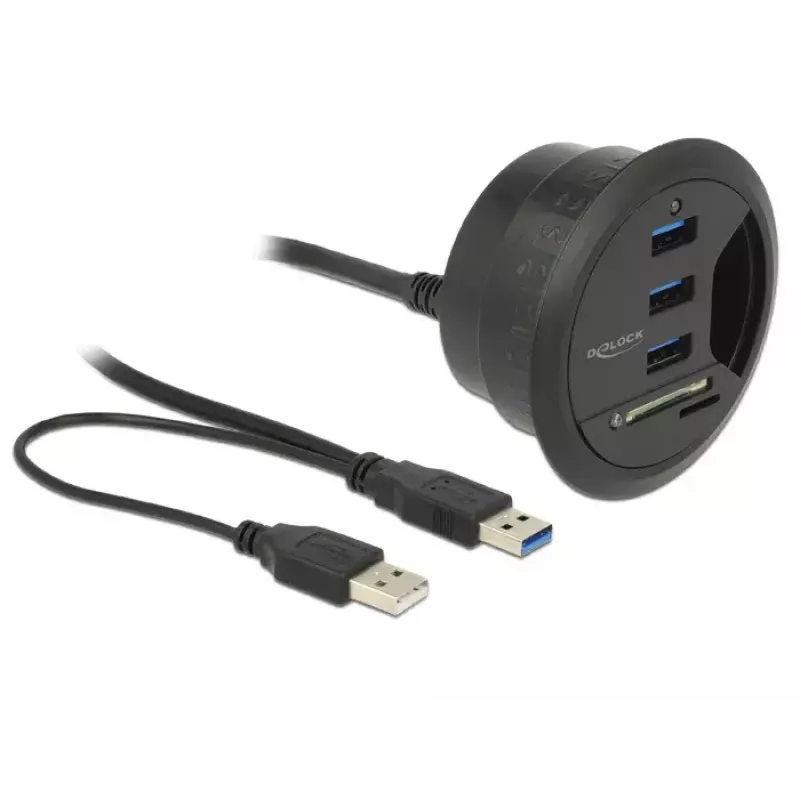

This hub by Delock is designed to be installed into an existing desk cut-out with a diameter of 60 mm or 80 mm to guide cables for monitor, keyboard and mouse while keeping the workspace organised. The unit combines three USB Type-A female ports and a dual-slot SD card reader, with data transfer and power supplied via one USB 3.0 Type-A male and one USB 2.0 Type-A male; the two cable ends may be up to 20 cm apart due to their fixed connection. The product is finished in black and matches desks where a compact in-desk outlet is required.

Advantages

The DeLOCK 62869 provides a compact in-desk solution that integrates multiple connection types in a single module. Installation into an existing 60 mm or 80 mm cut-out eliminates the need for external adapters on the desktop surface. By combining USB 3.0 and USB 2.0 input plugs it supports faster data transfer for compatible devices while maintaining backward compatibility. The dual-slot SD card reader adds direct media access without extra cables.

Suitable for

• Office desks where cables for monitor, keyboard and mouse are routed through a grommet hole
• Workstations that require additional USB-A ports accessible from the desk surface
• Users who need direct SD/microSD card access at their desk

Key specifications

• Product name: Socket outlet DeLOCK 62869 Black
• Brand: DELOCK
• MPN: 62869
• EAN: 4043619628698
• Colour: Black
• Mounting diameter: fits 60 mm or 80 mm desk cut-out

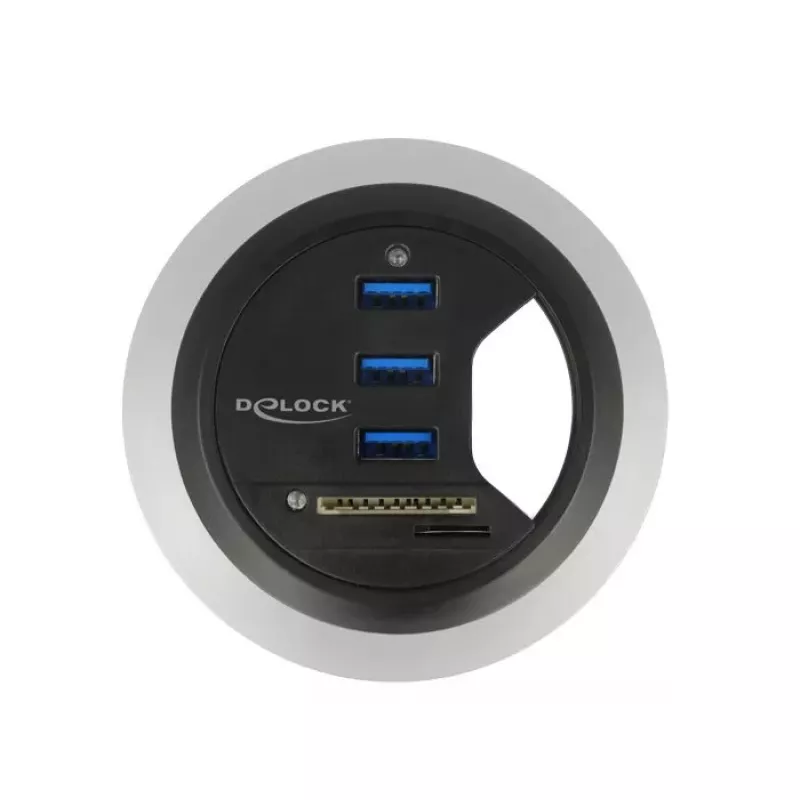

• Front ports: 3 × USB Type-A female, 1 × SD card reader with two slots
• Cable inputs: 1 × USB 3.0 Type-A male, 1 × USB 2.0 Type-A male (connected; max distance between free connectors 20 cm)
• Dimensions (approx.): 80 mm × 80 mm × 35 mm

How to use

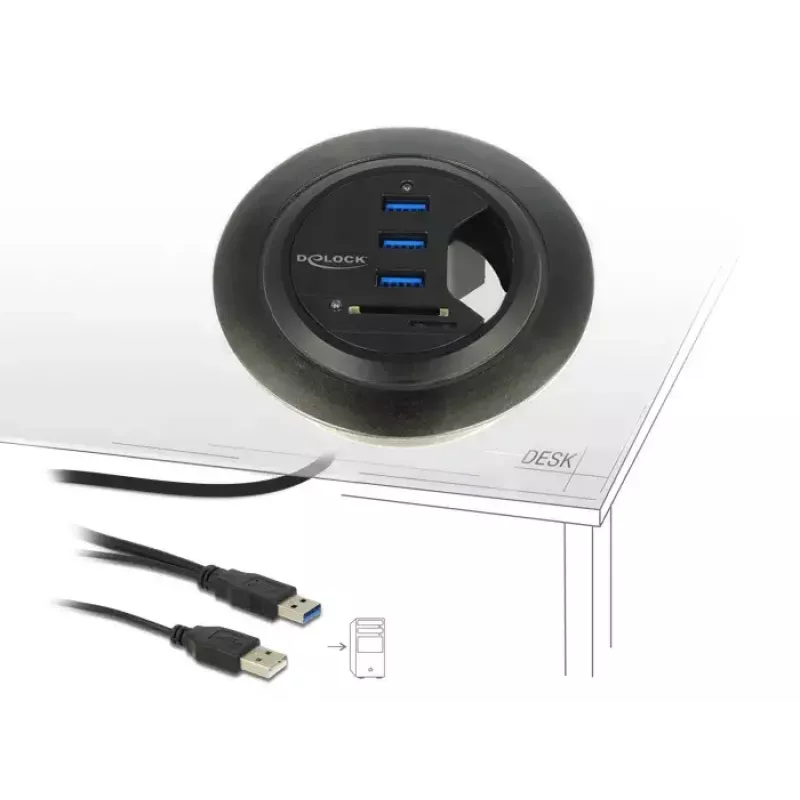

Insert the DeLOCK 62869 into an existing 60 mm or 80 mm grommet hole in the desk so the front panel sits flush with the desktop. Connect the USB 3.0 and USB 2.0 Type-A male plugs to the host computer(s) or power sources as required; observe the maximum separation of 20 cm between the two free connectors caused by their fixed linking cable. Use the three front USB-A ports for peripherals such as keyboard, mouse or USB drives and insert SD or microSD cards into the dual-slot reader for direct access.

Recommendations

Ensure the desk cut-out diameter matches 60 mm or 80 mm before installation and route the connected cables to avoid strain. For optimal data transfer to devices using the USB 3.0 port, connect the USB 3.0 Type-A plug to a USB 3.0 host port on your computer.
