Πρίζα δικτύου InLine 76842A 2 x RJ-45 Λευκό Καλώδιο δικτύου Cat 6a

Flexible mounting: Ideally suited for surface-mounted and flush-mounted installations in the office or industrial sector.
2x RJ45 sockets with LSA connection technology: Fast and secure installation with 8 insulation displacement connectors per socket.
Completely shielded housing: Minimization of interference for stable data transmissions in Cat.6A environments.

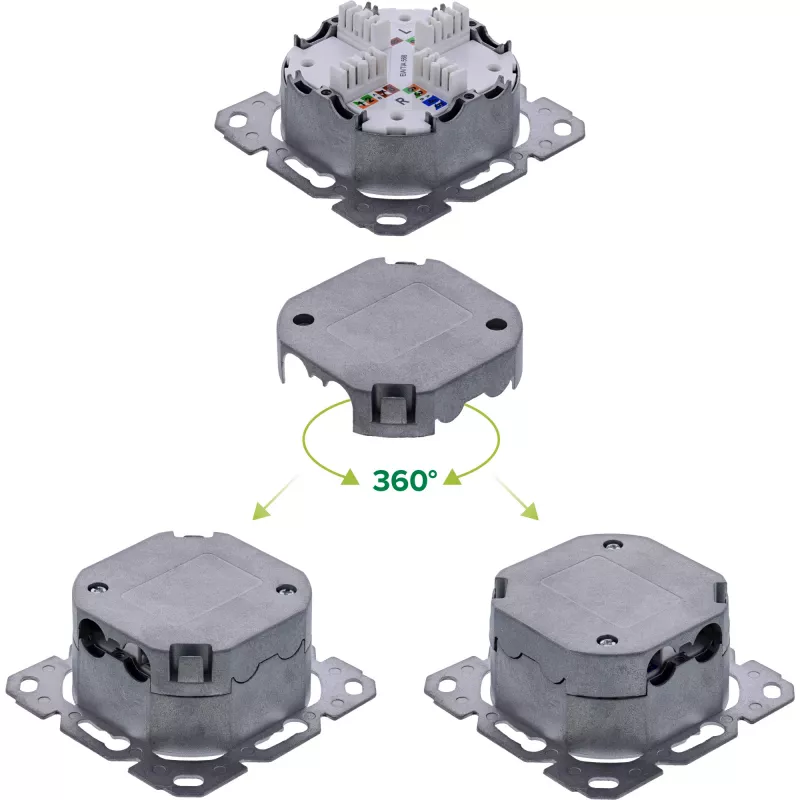

Variable cable entry: Cable entry optionally from the top, bottom, right or left - for maximum flexibility.
Inconspicuous design in RAL9010: Color-coordinated for modern room concepts and technical environments.

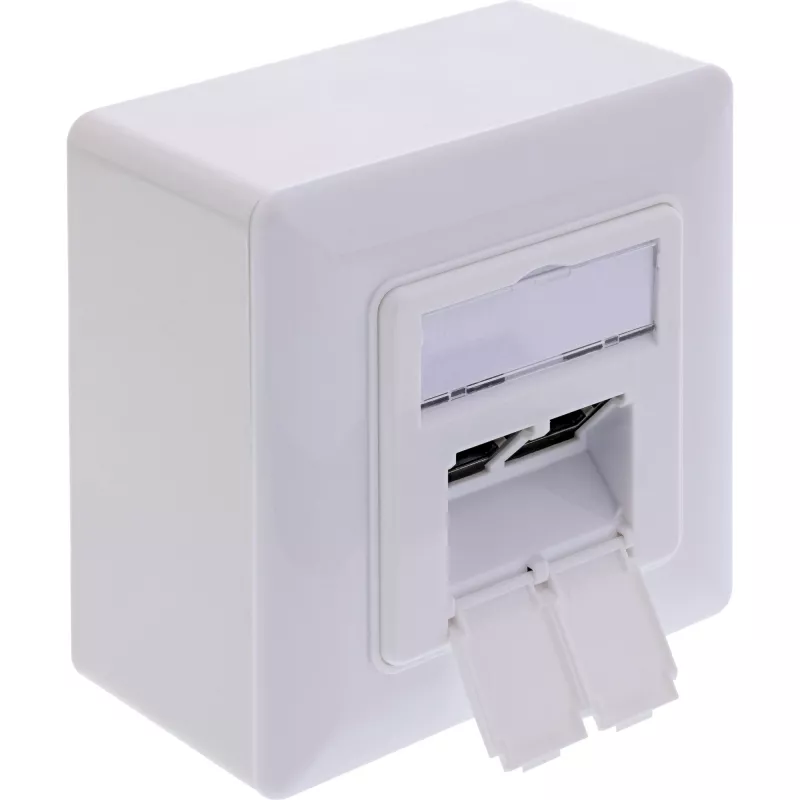

The InLine® Cat.6A junction box offers a professional solution for structured network cabling in offices, public facilities and industrial applications. With two RJ45 sockets and 8-pin LSA connection strips, the network socket can be installed quickly and reliably.

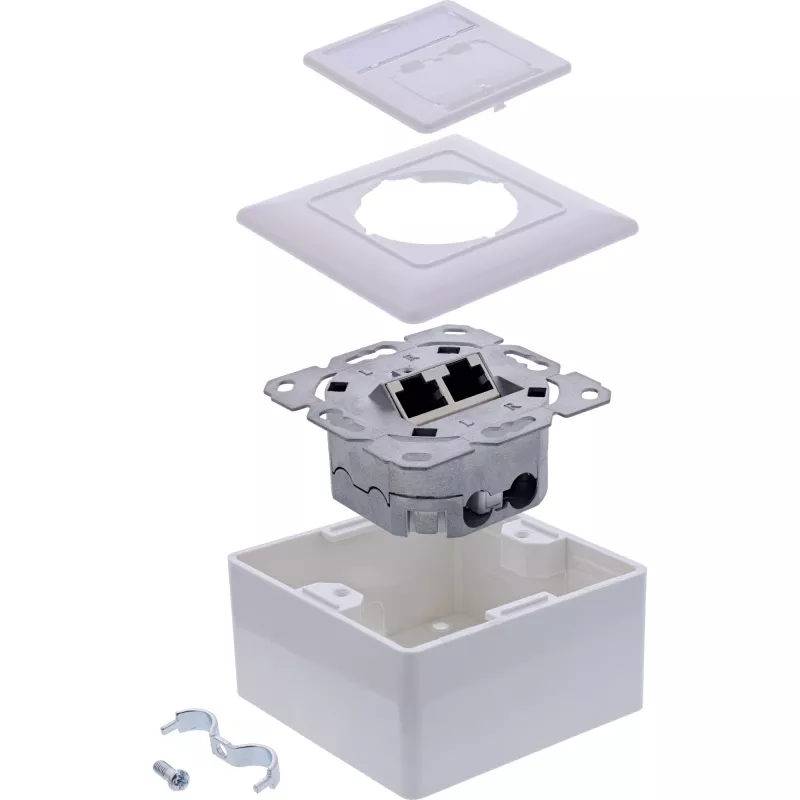

The special feature: The housing is designed so that installation is possible both as a surface-mounted and flush-mounted solution- ideal for flexible installation requirements in new buildings or existing properties. Cable access can be from above, below or from the side, allowing easy integration into existing cable ducts or installation systems.The fully shielded design ensures interference-free data transmission even in demanding network environments. The high-quality workmanship and discreet design in RAL9010 (white) make the connection box the first choice for installation projects with professional requirements.

Standard: ISO/IEC 11801, EN 50173, TIA/EIA 568
Compatible with: Cat.6A, Cat.6, Cat.5e
Mounting: screw fastening
Material: Plastic housing, halogen-free
Operating temperature: -10 °C to +60 °C
Dimensions (WxHxD): approx. 80 × 80 × 30 mm
Delivery incl. labeling field and dust protection caps

InLine 76842A. Width: 80 mm, Height: 41 mm, Depth: 80 mm. Package width: 85 mm, Package depth: 85 mm, Package height: 65 mm. Country of origin: Taiwan

How to use

Prepare the Cat 6a cable according to standard termination practices, ensuring correct pair alignment. Route the cable into the box via the chosen entry (horizontal or vertical). Terminate each conductor into the appropriate contact on the LSA terminal strips using a suitable punch-down tool. Secure the box in the desired mounting position (flush or surface) and connect patch cables to the RJ45 jacks for network devices.

Recommendations

For optimal performance, use certified Cat 6a cable and follow TIA/EIA wiring color codes when terminating. Ensure proper grounding of the shielded system and avoid tight bends or sharp kinks in the cable near the box.
