Πρίζα δεδομένων FTTH χωνευτή EFB Elektronik FTTH-OUTLET-SC-OM3 λευκή

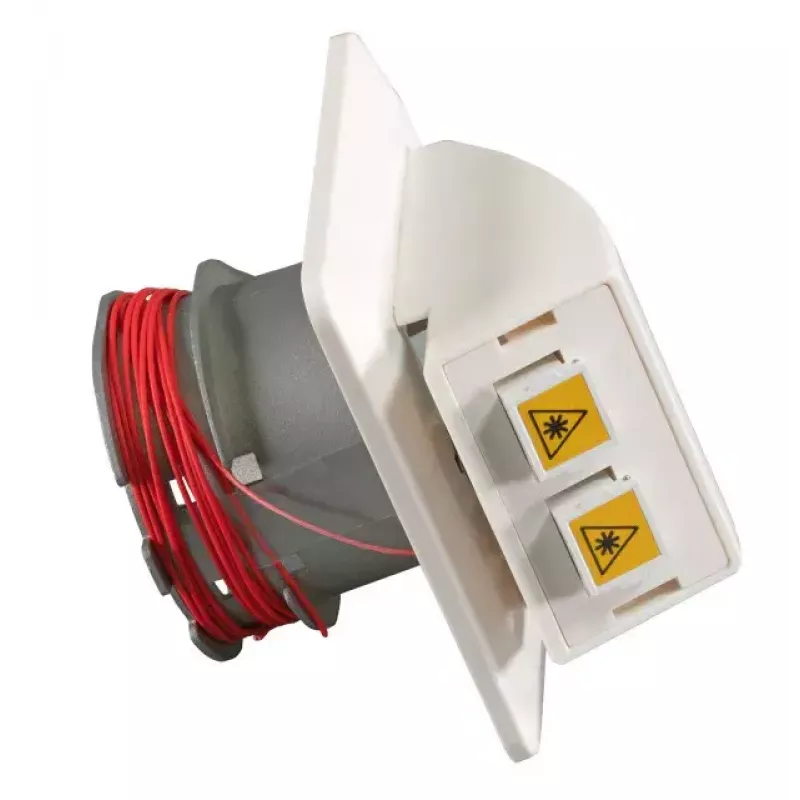

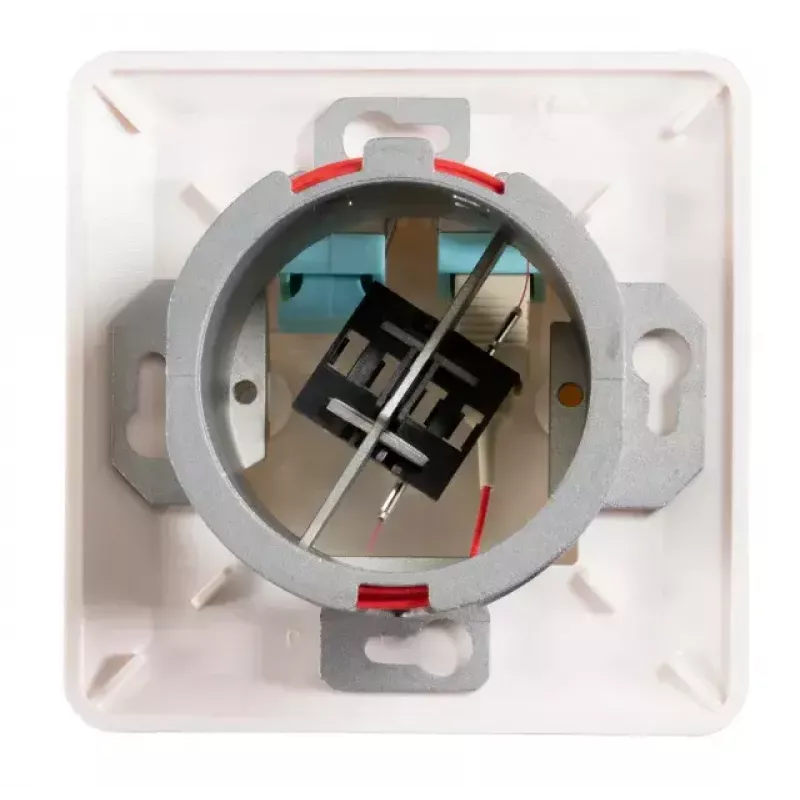

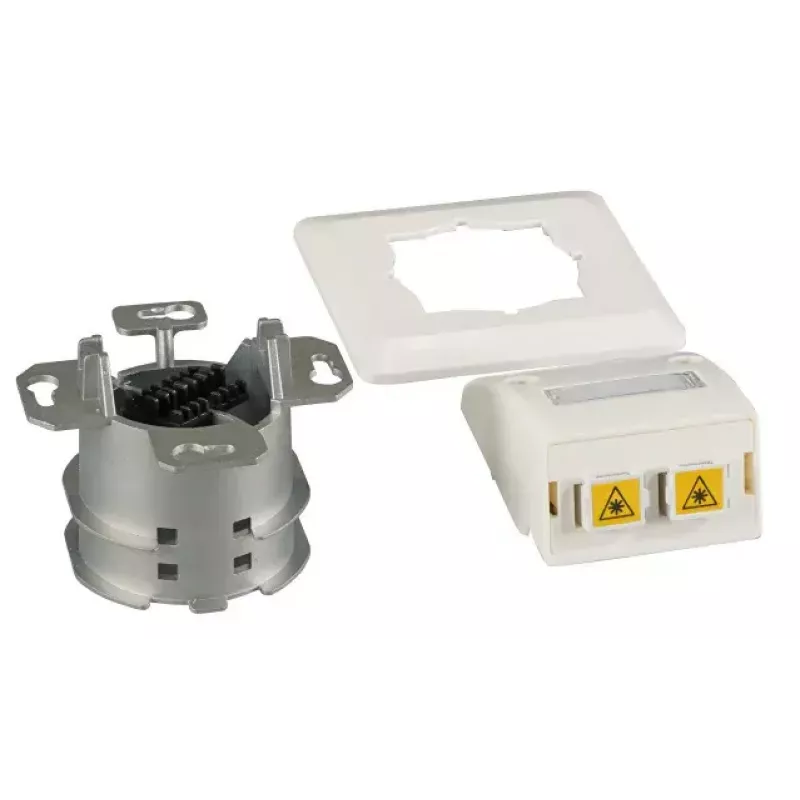

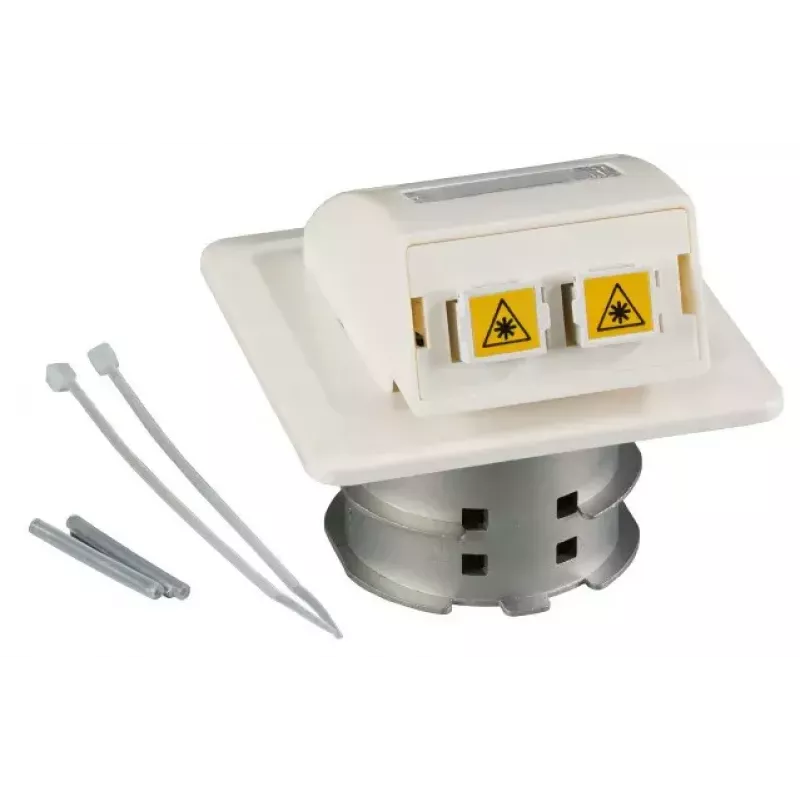

The EFB Elektronik FTTH-OUTLET-SC-OM3 is a flush-mounted fiber optical data outlet designed for FTTH installations. It has a white durable plastic housing and is intended to accommodate either two SC-Simplex adapters or two LC-Duplex adapters. The outlet includes couplings in OM3 class (with shutter) and provides integrated receptacles for excess fiber length and for splice protection (supports up to 4 crimp or 4 shrink protections). Its removable holder allows easier handling during pre-assembly of cables.

Advantages

The outlet combines an integrated excess-fiber chamber with a splice-protection holder to simplify termination and maintenance. Its shuttered OM3 coupling protects connectors from dust and ensures compliance with fiber optic installation standards. The compact 80 × 80 × 40 mm plastic housing supports neat flush mounting in residential and small-business environments, while the removable holder permits flexible installation workflows.

Suitable for

• FTTH fiber-to-the-home installations
• Indoor wall-mounted fiber outlets in apartments or offices
• Environments requiring OM3 multimode connections with SC or LC interfaces
• Small-scale fiber patching and splicing with limited space for splice protection

Key specifications

• Brand: EFB Elektronik
• Model / MPN: FTTH-OUTLET-SC-OM3
• EAN: 4049759211271
• Adapter support: 2 × SC-Simplex or 2 × LC-Duplex
• Coupling class: OM3 multimode with shutter

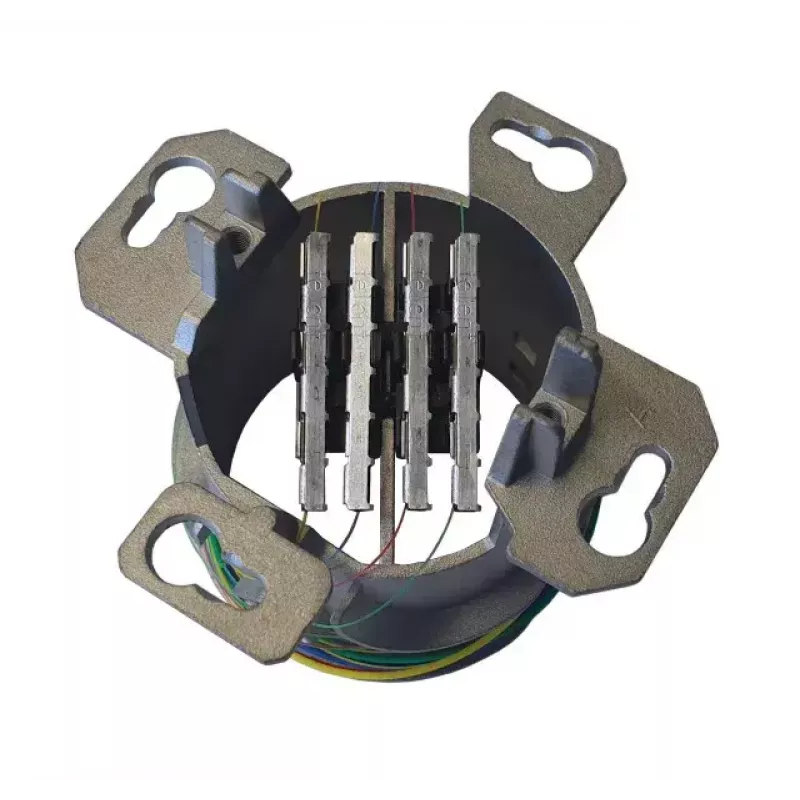

• Splice protection capacity: 4 × crimp or 4 × shrink
• Housing material and color: plastic, white
• Dimensions: 80 mm (W) × 80 mm (D) × 40 mm (H)

How to use

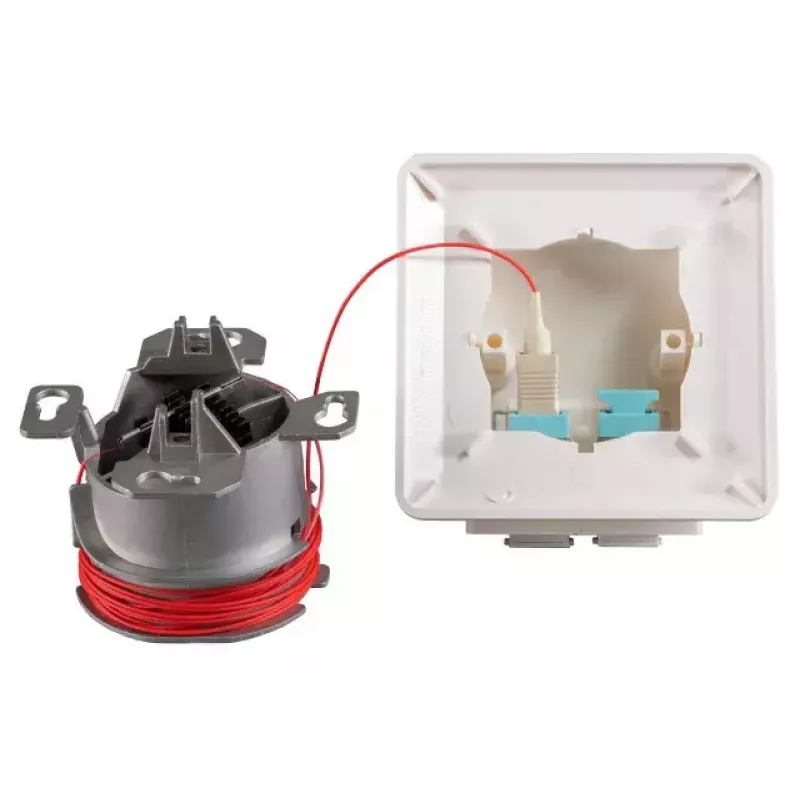

Mount the flush outlet into the prepared wall box and secure it according to local installation practices. Install the required adapters (SC or LC) into the front couplings. Route the incoming fiber into the integrated excess-length chamber, store the slack in the receptacle, and fix splices in the splice-protection holder using appropriate crimp or shrink protection sleeves. If pre-assembled cables require more space, remove the holder temporarily to facilitate routing, then refit it after completing the termination.

Recommendations

Use appropriate OM3 fiber patchcords and follow standard fiber-handling precautions: keep connectors clean, avoid tight bends, and secure the outlet in a dust-free indoor environment. For splicing, use compatible crimp or shrink protection sleeves and verify fiber performance after installation.
