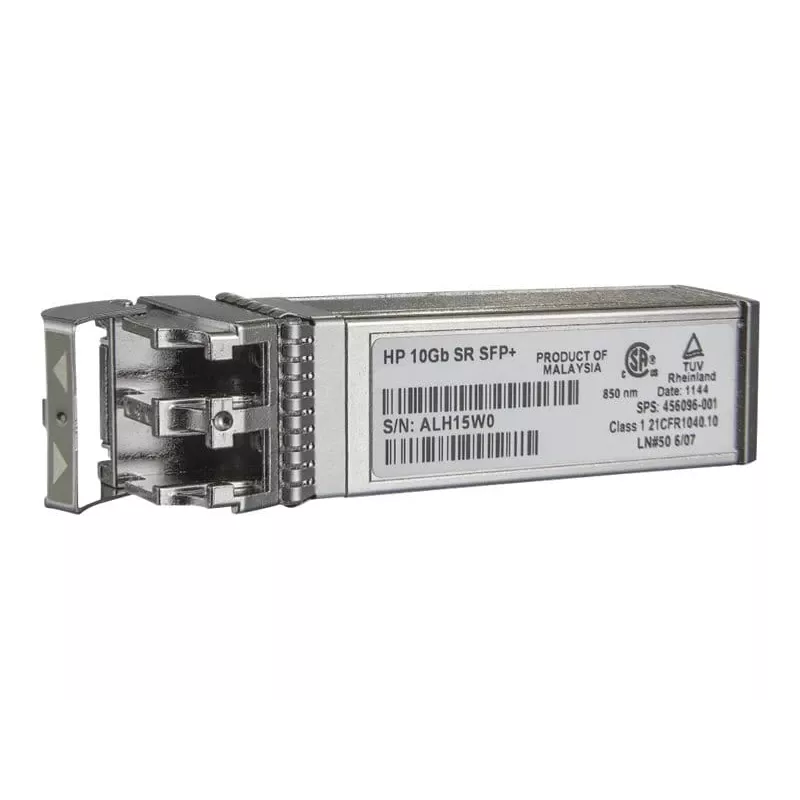

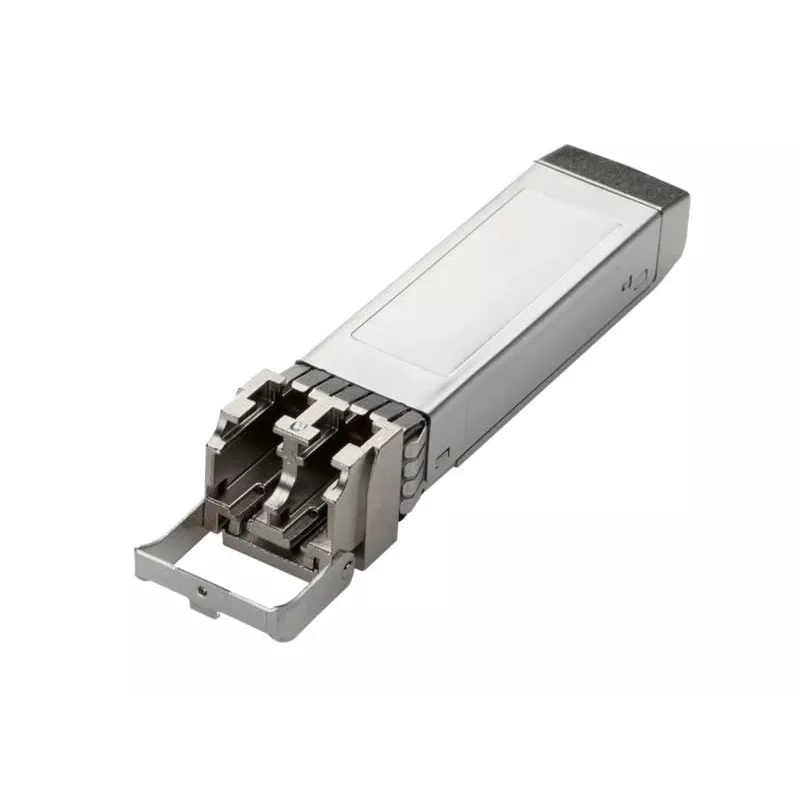

Πομποδέκτης SFP+ HPE BladeSystem c-Class 10Gb SR

A 10-Gigabit transceiver in SFP+ form-factor that supports the 10-Gigabit SR standard, providing 10-Gigabit connectivity up to 400m on OM4 multi-mode fiber. The module operates at an 850 nm wavelength and is designed for short-range high-speed Ethernet links over multimode fiber.

Advantages

The SFP+ form-factor enables compact installation in compatible network switches and servers while delivering 10G Ethernet performance. Support for OM4 multimode fiber allows link lengths up to 400 m, and backward compatibility with OM3 provides reliable transmission at up to 300 m. The 850 nm wavelength is standard for short-range multimode fiber applications.

Key specifications

• Form factor: SFP+
• Standard: 10GBASE-SR
• Data rate: 10 Gbps
• Wavelength: 850 nm
• Maximum reach on OM4: 400 m
• Maximum reach on OM3: 300 m

How to use

Install the transceiver into a compatible SFP+ port on a switch, router, or network adapter. Connect the multimode fiber cable (OM3 or OM4) using an appropriate connector (typically LC). Ensure proper link configuration in the network device and verify the optical budget and fiber condition to achieve the specified reach.

Recommendations

Use OM4 multimode fiber to achieve the full 400 m reach. Verify device compatibility with SFP+ modules and perform routine testing of fiber connectors and transceiver operation for reliable 10G links.
