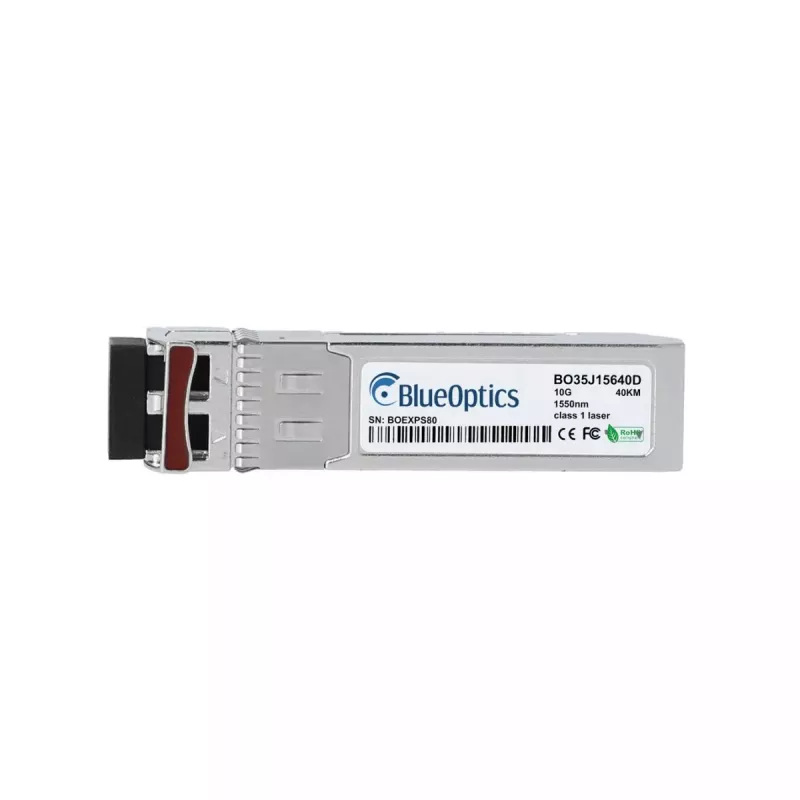

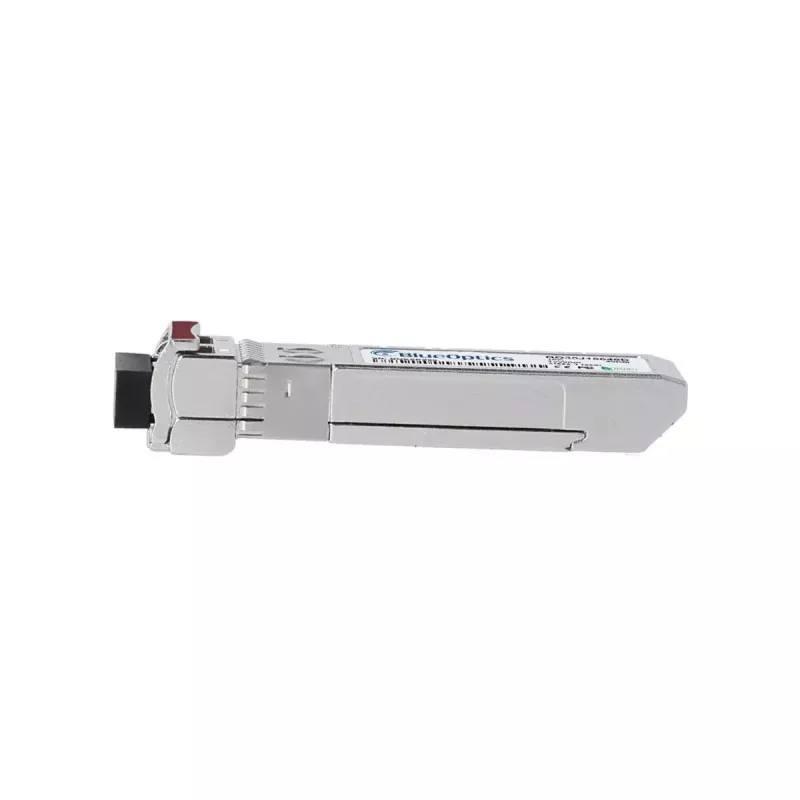

Πομποδέκτης SFP+ BlueOptics SPP-10E-ER-CDFD-BO 10000 Mbit/s

The BlueOptics SPP-10E-ER-CDFD-BO is an SFP+ fiber optic transceiver designed for 10 Gbit/s single-mode links. The module has a metal housing, a silver finish and a lightweight design (approximately 20 g). It supports LC duplex fiber connections and is intended for long-reach optical links with high availability and an MTBF of around 1,000,000 hours.

Advantages

The transceiver follows MSA-compliant SFP+ form-factor and electrical specifications, enabling interoperability with a wide range of networking hardware that supports compatible 10G SFP+ modules. Its metal enclosure and tested component selection contribute to robust thermal and mechanical stability. Integrated support for optical transmission over single-mode fiber and LC duplex connectivity allows simultaneous transmit and receive channels on separate fibers. Digital diagnostics (when supported by the host device) provide real-time monitoring of key operating parameters to aid remote maintenance.

Suitable for

• 10 Gbit/s Ethernet backbone and aggregation links
• Long-reach single-mode fiber connections between sites
• Integration into compatible switches, routers and storage systems with SFP+ ports
• Environments requiring digital diagnostics/monitoring support (host-dependent)

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Fiber type: single-mode (LC duplex connection)
• Housing: metal, silver colour
• Weight: approx. 0.02 kg
• Mean time between failures (MTBF): ~1,000,000 hours

How to use

Install the BlueOptics SFP+ transceiver into a compatible SFP+ port until it engages securely, and connect LC duplex single-mode fiber patch cords to the module's Tx and Rx ports following the device documentation. Ensure the host equipment supports 10G SFP+ modules and, if required, the digital diagnostics/DOM/DDM functions. Perform basic link validation after insertion by checking port status indicators and running any vendor-recommended diagnostics or network tests.

Recommendations

Use high-quality single-mode LC duplex patch cords and, where applicable, compatible patch panels to achieve optimal link performance. Verify host compatibility with the module and enable digital diagnostics on the host system to monitor supply voltage, optical output and input power, laser bias current and module temperature when supported. Protect the transceiver from mechanical shocks during handling and avoid contaminating fiber connectors to maintain signal quality.
