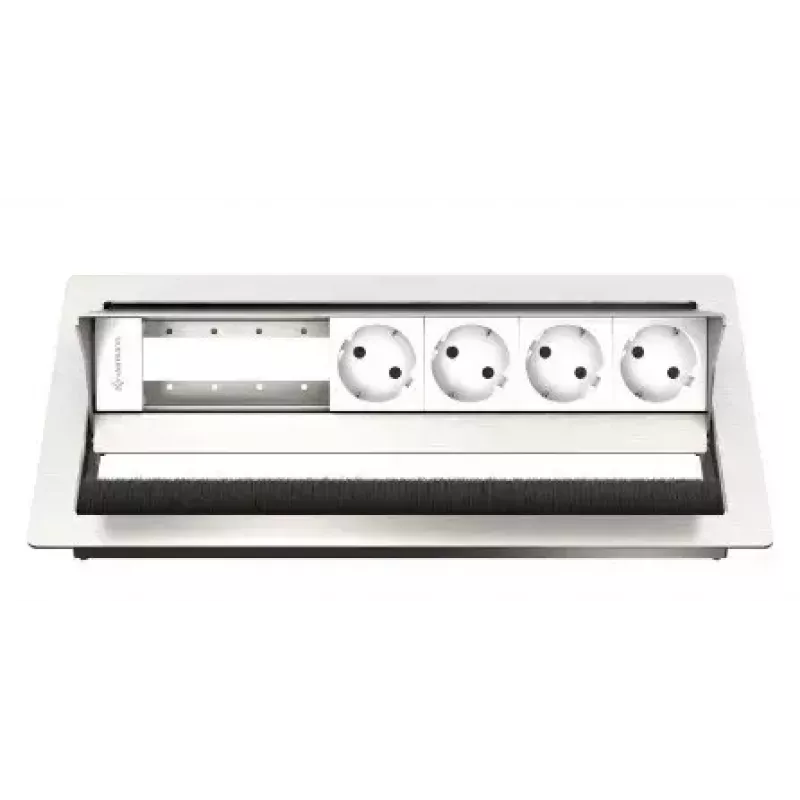

Πολύπριζα επιτραπέζια Type F Kindermann 7492000064

Desktop casing for six insets in stainless steel, pre-mounted with four mains sockets and two empty modules. The unit supports individual configuration using Konnect flex 45 adapter plates and is intended for flush or top mounting into desks with up to 40 mm thickness. Installation depth is 65 mm and the mains connection uses a 3-pin GST 18 plug. Dimensions: 340 mm (W) x 77 mm (H) x 190 mm (D). Suitable for Type F power connections.

Advantages

Quick mounting is enabled by a click mechanism that simplifies installation. Interfaces are level-mounted for a homogeneous appearance and allow seamless desktop integration. The casing is compatible with media control modules, USB chargers and other Konnect flex 45 modules, and supports easier mounting from above. Constructed from stainless steel for durability and stable performance.

Suitable for

Key specifications

How to use

Cut a mounting opening in the desk according to the unit dimensions and maximum desk thickness. Place the desktop casing into the opening and secure it using the integrated click mechanism for quick mounting. Install required Konnect flex 45 adapter plates into the six insets to configure power sockets, media controls or USB chargers as needed. Connect the mains via the 3-pin GST 18 plug to the building power supply and verify correct operation.

Recommendations

For safe and reliable installation, verify desk material and thickness before cutting the opening and have the mains connection performed by a qualified electrician. Use Konnect flex 45 adapter plates from the same manufacturer to ensure compatibility and level-mounted appearance.
