Outlet Box Type F Kindermann 7430000251

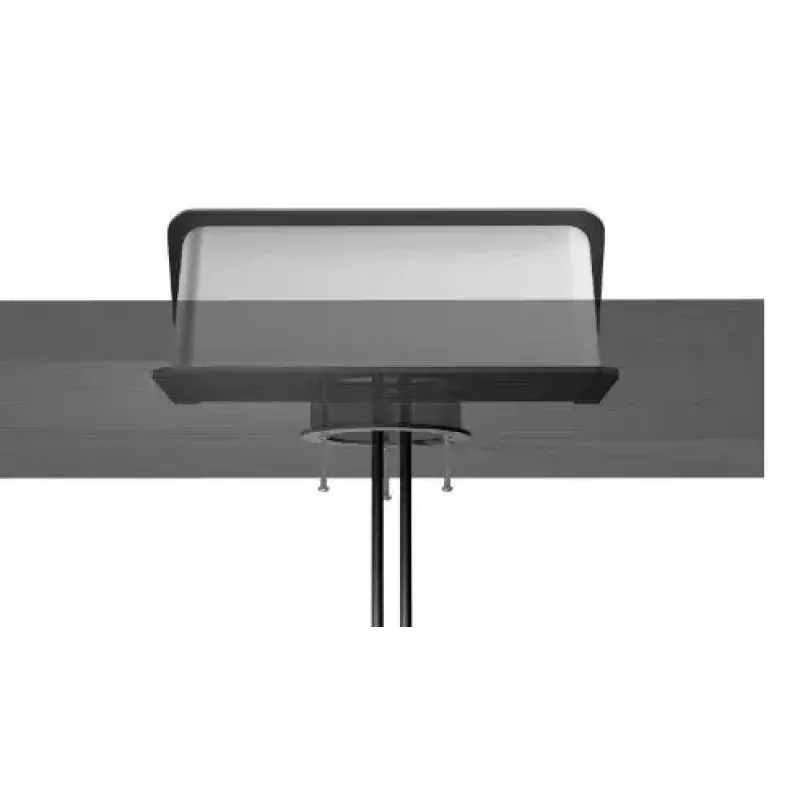

The Kindermann 7430000251 outlet box is an anodized aluminium desktop connection module designed to fit into a standard 80 mm diameter cut-out. The compact housing supports four compartments and is pre-configured with a 1 m GST18 (male) main power cable, leaving remaining space for individual configuration. The case accepts up to six half or three full adapter plates from the Konnect flex 45 click series and has a flush, plain surface for low-profile installation.

Advantages

The aluminium construction provides durability and a lightweight design while the anodized finish resists wear. Click-mount adapter plates allow fast, tool-free installation and reconfiguration. Pre-fitted GST18 main power cable simplifies installation by providing a ready power connection, and compatibility with Konnect flex 45 click plates and Neets media controls increases flexibility for multimedia and charging setups.

Suitable for

Key specifications

How to use

Cut an 80 mm diameter hole in the desktop at the desired location and insert the outlet box so that the flush surface sits level with the desk. Connect the pre-fitted 1 m GST18 power cable to the compatible power source. Install required Konnect flex 45 click adapter plates by aligning them and pressing until they click into place. Configure media controls, power outlets or USB chargers into the selected plate positions according to your setup requirements.

Recommendations

Ensure the GST18 cable connection and any additional modules are powered off during installation. Verify compatibility of Konnect flex 45 click plates and Neets controls before fitting. Allow sufficient internal clearance under the desk for the housing depth of 124 mm when planning installation.
