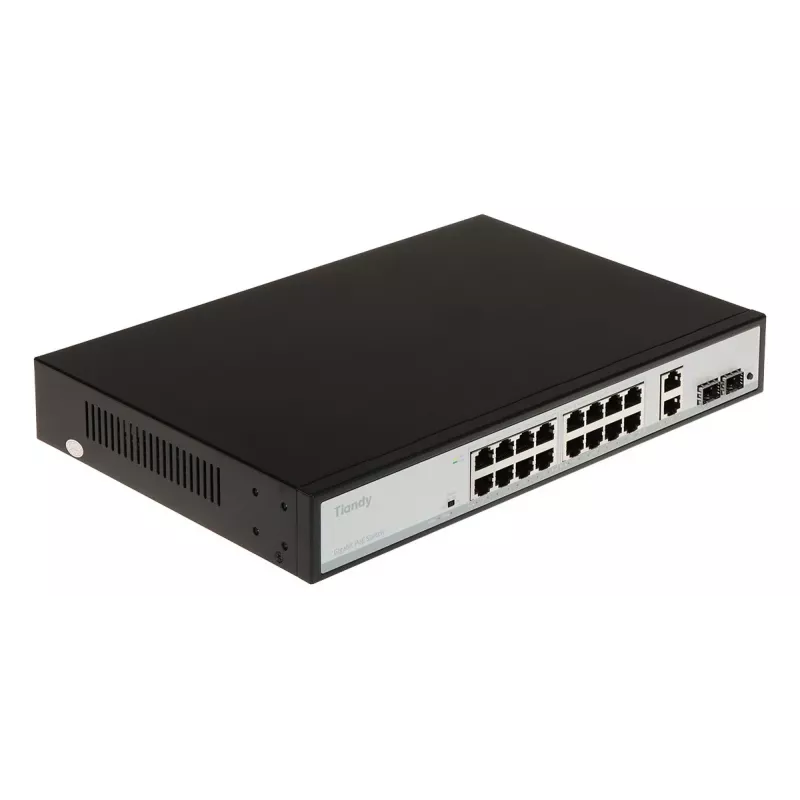

POE LANG SWITCH POE TC-P3S020 SPEC:G/1622/AT/180 16-Port SFP TIANDY

This 16-port Gigabit PoE+ switch delivers a substantial 180W power budget, enabling simultaneous power and data transmission to IP cameras, VoIP phones, and wireless access points. With 16 IEEE 802.3af/at PoE ports and two additional Gigabit SFP uplink slots, it provides flexible connectivity for expanding network infrastructure without the need for separate power injectors.

Advantages

The unmanaged design ensures plug-and-play simplicity, eliminating configuration overhead. Its 36 Gbps switching capacity and 26.78 Mpps forwarding rate guarantee smooth traffic handling even under load. The rugged metal housing supports desktop or rack mounting, and the internal power supply simplifies deployment.

Suitable for

• Small to medium business networks requiring PoE for endpoints
• Surveillance systems with multiple IP cameras
• VoIP phone deployments
• Wireless access point installations
• Network expansion in offices or retail environments

Key specifications

• 16× 10/100/1000 Mbps PoE+ ports (IEEE 802.3af/at)
• 2× Gigabit SFP uplink ports
• Total PoE power budget: 180W
• Switching capacity: 36 Gbps
• Forwarding rate: 26.78 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9KB
• Internal AC power supply (100-240V)
• Desktop or rack-mountable
• LED indicators for power, link/activity, and PoE status

Recommendations

Ideal for integrators and IT administrators seeking a reliable, high-power PoE switch for edge deployments. Pair with Cat5e or better cabling for optimal performance. Ensure adequate ventilation when rack-mounting.
