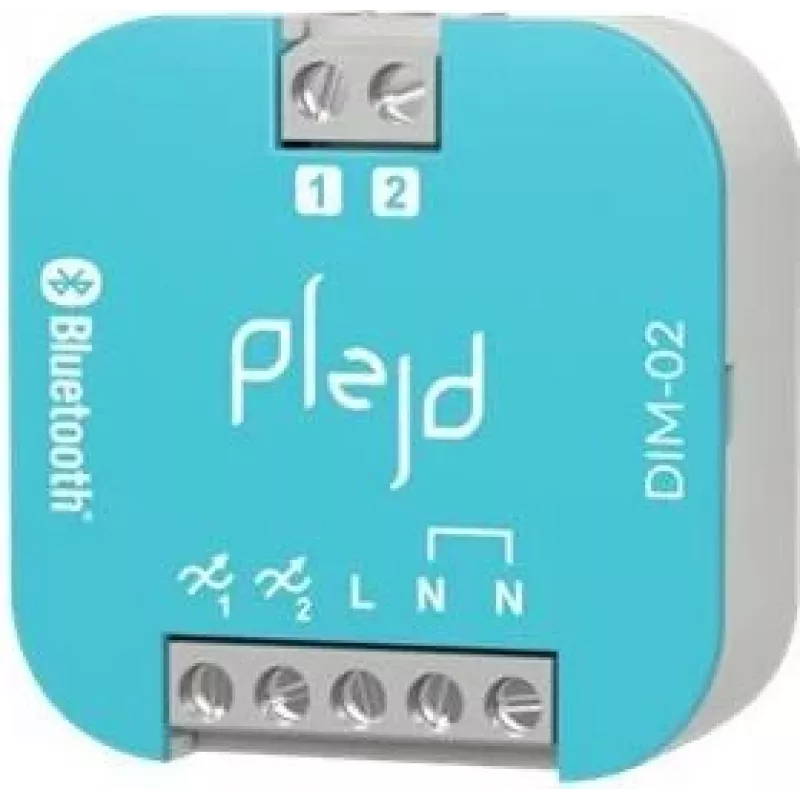

PLEJD DIM-02 2-κάναλο ασύρματο dimmer, 2x100VA, Bluetooth Mesh, ράγα DIN

The PLEJD DIM-02 is a universal 2-channel dimmer for DIN rail mounting that delivers smooth, flicker-free control for LED, halogen, and incandescent lighting up to 100VA per channel. Its dual-channel design allows independent control of two lighting zones from a single compact module, saving valuable space in the distribution board. The dimmer integrates seamlessly into the Plejd Bluetooth mesh ecosystem, enabling wireless dimming, scheduling, and scene control via the Plejd app or connected push buttons—no additional hubs or gateways required.

Advantages

Automatic load detection selects the optimal dimming principle (leading or trailing edge) for flicker-free performance across a wide range of dimmable light sources. Overload, short-circuit, and over-temperature protection safeguard both the dimmer and connected luminaires. Standby power consumption below 0.5W contributes to energy efficiency. The Plejd mesh technology ensures robust communication with other Plejd devices, even in large installations, providing reliable wireless control without extra infrastructure.

Suitable for

• Residential lighting control for living rooms, bedrooms, and kitchens
• Commercial spaces such as offices, restaurants, and retail areas
• Retrofit projects where existing wiring limits new cable runs
• Integration with Plejd smart home systems for app-based control
• DIN rail installations requiring a compact, modular dimming solution

Key specifications

• 2 channels, each rated up to 100VA (total 200VA)
• Input voltage: 230V AC, 50Hz
• Dimming principles: leading edge (RL) and trailing edge (RC), auto-detected
• Wireless connectivity: Plejd Mesh (Bluetooth)
• Protection features: overload, short circuit, over-temperature
• Standby power consumption: < 0.5 W
• Operating temperature: -20 to +45 °C
• IP rating: IP20
• Module width: 2 DIN modules
• Certifications: CE

Recommendations

For optimal performance, ensure the dimmer is installed by a qualified electrician and that all connected loads are compatible with the selected dimming principle. Use the Plejd app to configure channels, set scenes, and perform over-the-air firmware updates.
