Πλάκα VESA με σφαίρα RAM Mounts RAM-2461U

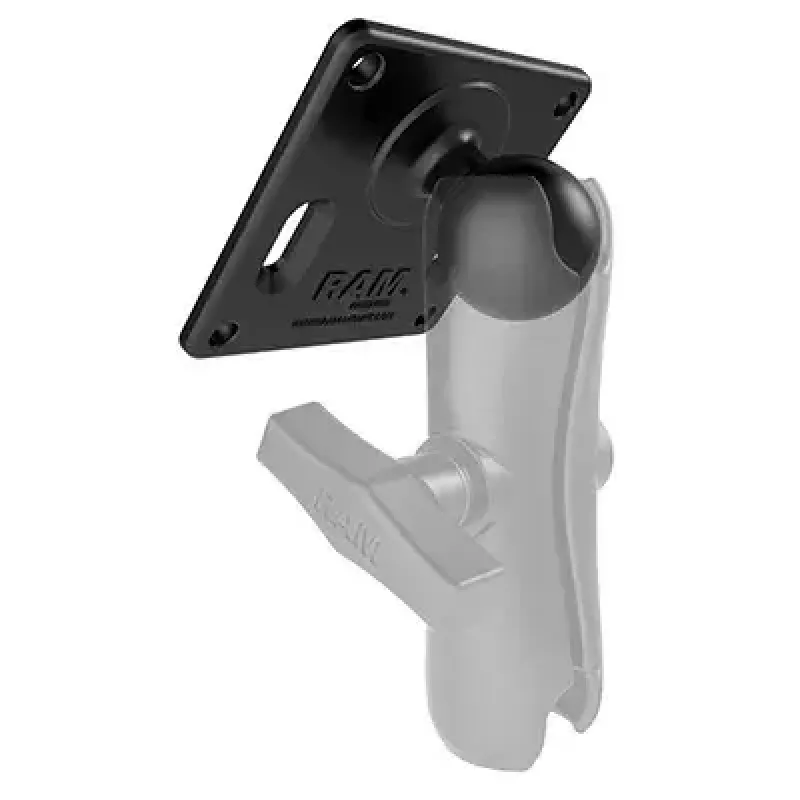

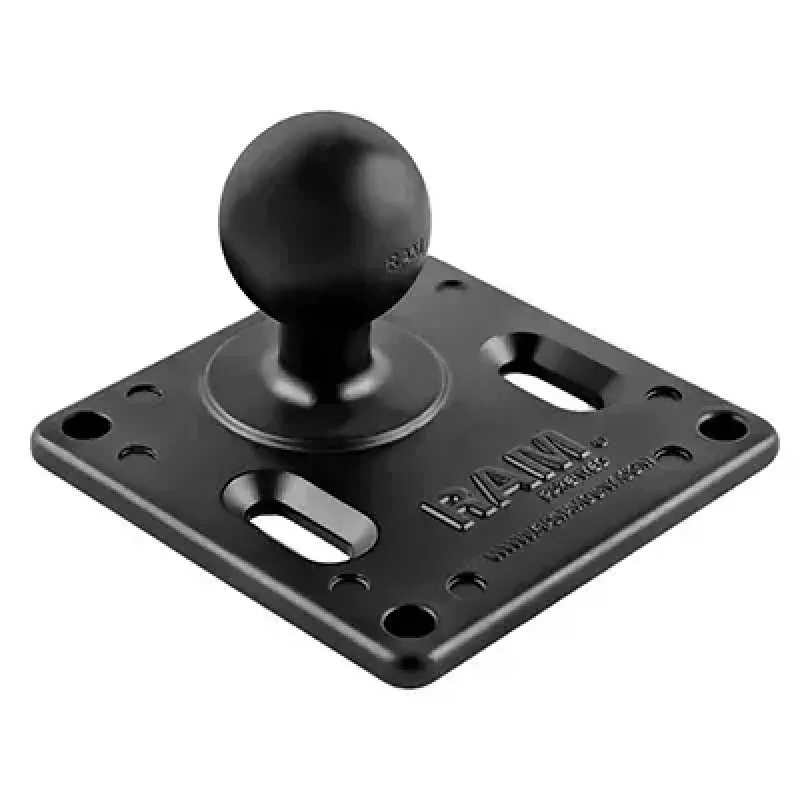

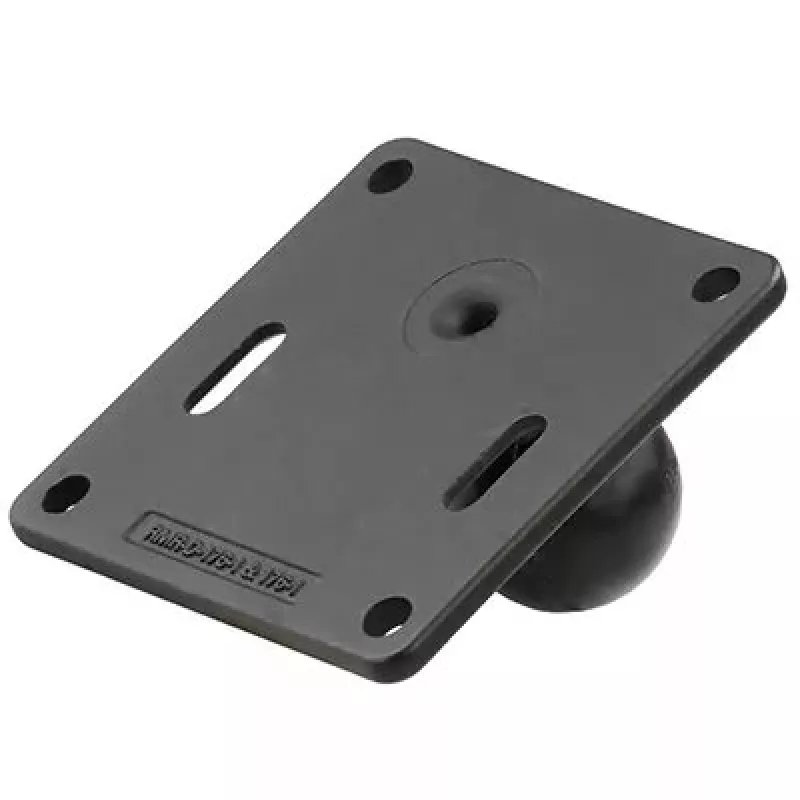

The RAM-2461U VESA plate with ball from RAM Mounts is a compact 75 x 75 mm mounting plate with an integrated 1.5" rubber ball designed to work with RAM 1.5" diameter double-socket arms. Constructed from durable aluminium with a black finish, the plate provides a secure interface for attaching compatible displays or devices using a 75 mm x 75 mm VESA hole pattern. The rubber ball is offset 0.88" from the center of one edge to match the socket geometry of RAM double-socket arms.

Advantages

The aluminium construction offers strength while keeping the weight low, and the black finish provides corrosion resistance and a professional appearance. The integrated 1.5" rubber ball ensures compatibility with RAM 1.5" double-socket arms for flexible positioning, and the compact 75 x 75 mm VESA pattern makes the plate suitable for small displays and devices. The lightweight design simplifies installation without compromising stability.

Suitable for

• Mounting small monitors or displays with 75 x 75 mm VESA pattern
• Attaching devices to RAM 1.5" diameter double-socket arms
• Vehicle, boat, or workstation mounting where compact, secure VESA interfaces are required

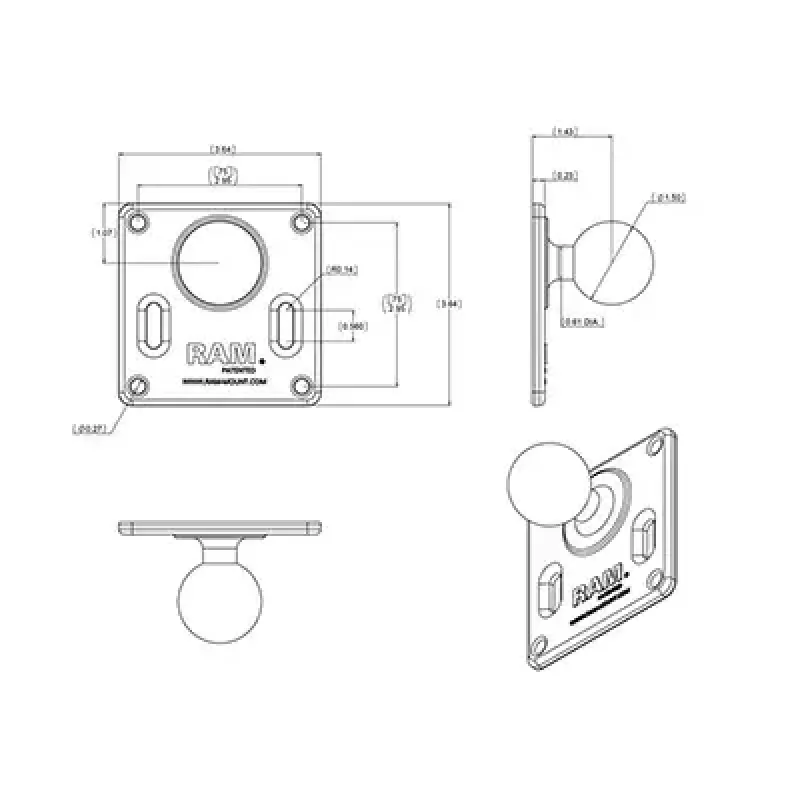

Key specifications

• VESA pattern: 75 mm x 75 mm
• Ball diameter: 1.5" (3.81 cm)
• Ball offset: 0.88" from center of one edge
• Material: aluminium
• Product colour: Black
• Weight: 0.1814 kg
• Compatible with: RAM 1.5" dia. ball double-socket arms

How to use

Align the plate’s 75 x 75 mm VESA holes with the corresponding mounting holes on your display or device and fasten using appropriate VESA screws. Insert the 1.5" rubber ball into the socket of a RAM 1.5" diameter double-socket arm and secure the arm’s clamp or tightening mechanism according to the arm manufacturer’s instructions. Adjust the device position by loosening the arm, positioning the display, then re-tightening to lock the angle.

Recommendations

Use the plate only with compatible RAM 1.5" diameter double-socket arms and VESA-compliant devices. Select correct screw size and length for your device to avoid damage. Periodically check and re-tighten the arm’s fasteners and the VESA screws after installation to ensure continued secure mounting.
