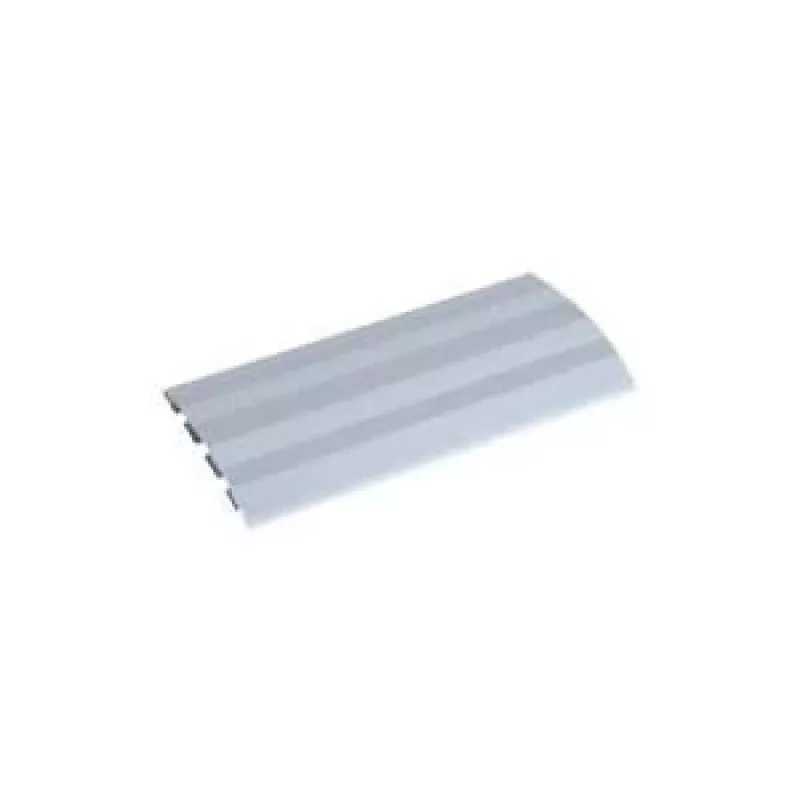

Πλάκα γεφύρωσης αλουμινίου Bachmann BRIDGE, πάχος 9 mm, πλάτος 146 mm

The Bachmann BRIDGE aluminium bridge plate is a compact, durable plate designed for cable routing and small transition applications. Made from anodised aluminium with a rippled surface, the plate combines lightweight strength with corrosion resistance. With a 9 mm material thickness and a 146 mm width, this bridge plate provides a low-profile solution for routing power and data cables while offering slip reduction and secure attachment options.

Advantages

The anodised aluminium construction ensures resistance to corrosion and a long service life with minimal maintenance. The rippled top surface reduces slipperiness underfoot and improves grip when installed in floor or walkway locations. A three-chamber internal layout allows separate routing of power and data cables to minimise interference. The plate can be installed using double-sided tape or mechanical fasteners, offering flexible mounting depending on the application.

Suitable for

• Protecting and routing cables across short floor transitions in offices, exhibition spaces or retail environments
• Covering small cable gaps at door thresholds and workstations
• Creating compact transition points in temporary or permanent electrical installations
• Use where a lightweight, corrosion-resistant plate is needed for low to moderate foot traffic

Key specifications

• Material: anodised aluminium with rippled surface
• Material thickness: 9 mm
• Width: 146 mm
• Internal layout: three separate chambers for cable segregation
• Surface finish: anti-slip rippled texture
• Mounting options: suitable for double-sided tape or screw fixing to floor

How to use

Position the bridge plate over the area where cables require protection or separation. Route power and data cables into separate chambers to maintain segregation. For temporary or low-load installations, apply appropriate double-sided tape to the underside and press firmly into place on a clean, dry surface. For permanent or higher-load installations, fix the plate with screws into suitable floor substrate using the recommended fixing accessories. Ensure the surface is level and cables are not pinched during installation.

Recommendations

Use the product in environments with low to moderate pedestrian traffic and avoid exposure to heavy mechanical loads. Verify the chosen fixing method is compatible with the floor material and local electrical installation guidelines. Keep power and data cables separated in their respective chambers to reduce the risk of interference.
