PATLITE χρωματικό module LR7-E-Y 70mm κίτρινο

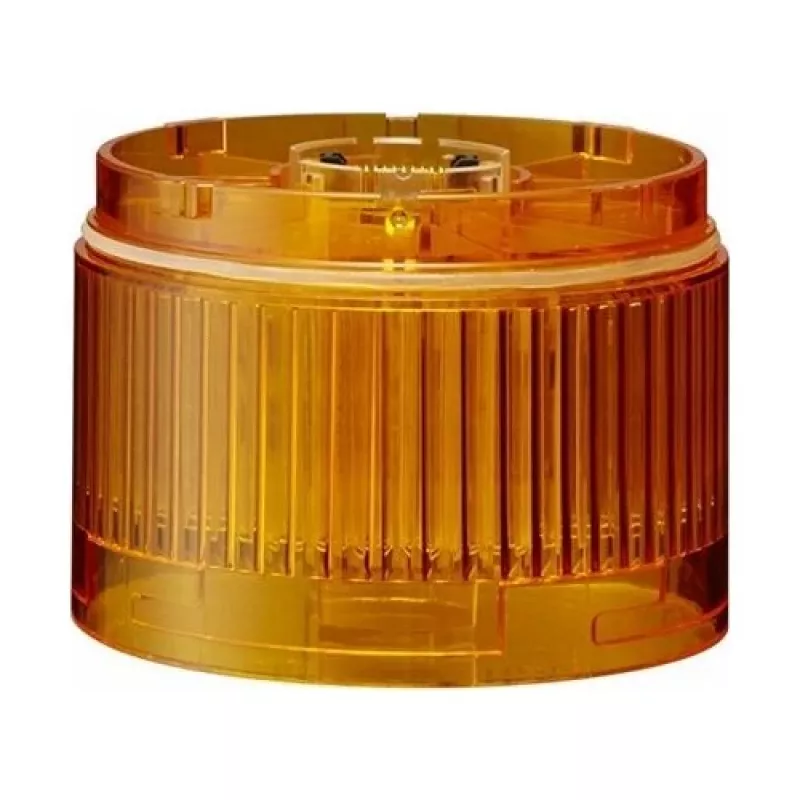

The PATLITE LR7-E-Y is a high-brightness LED color module from the LR7 series, designed for modular signal towers. This 70mm yellow module provides clear visual indication in industrial environments, with steady or flashing light functions controlled by the base unit. Its IP65 rating ensures dust and water resistance when assembled, making it suitable for demanding applications.

Advantages

High-brightness yellow LED ensures excellent visibility even in bright conditions. Modular and stackable design allows flexible configuration. IP65 protection for reliable operation in harsh environments. Long 50,000-hour LED lifespan reduces maintenance. Compatible with all PATLITE LR7 series base units and modules.

Suitable for

• Industrial automation and machinery status indication
• Production line signaling and alarm systems
• Warehouse and logistics equipment
• Process control panels

Key specifications

• Series: PATLITE LR7 Series
• Light Color: Yellow
• Module Diameter: 70 mm
• Operating Voltage: 24V DC
• Current Consumption: 35 mA
• Light Function: Steady / Flashing (controlled by base unit)
• Mounting Type: Modular, Stackable (Interlocking)
• Enclosure Rating: IP65 (when assembled)
• Operating Temperature: -20°C to +50°C
• Body Material: ABS Resin
• Lens Material: Polycarbonate
• Certifications: CE, RoHS, UL (cULus)

Recommendations

For a complete signal tower, pair this module with a PATLITE LR7 base unit and top cover. Ensure proper assembly to maintain IP65 rating.
