Patchpanel Lanview LVO231551 1U

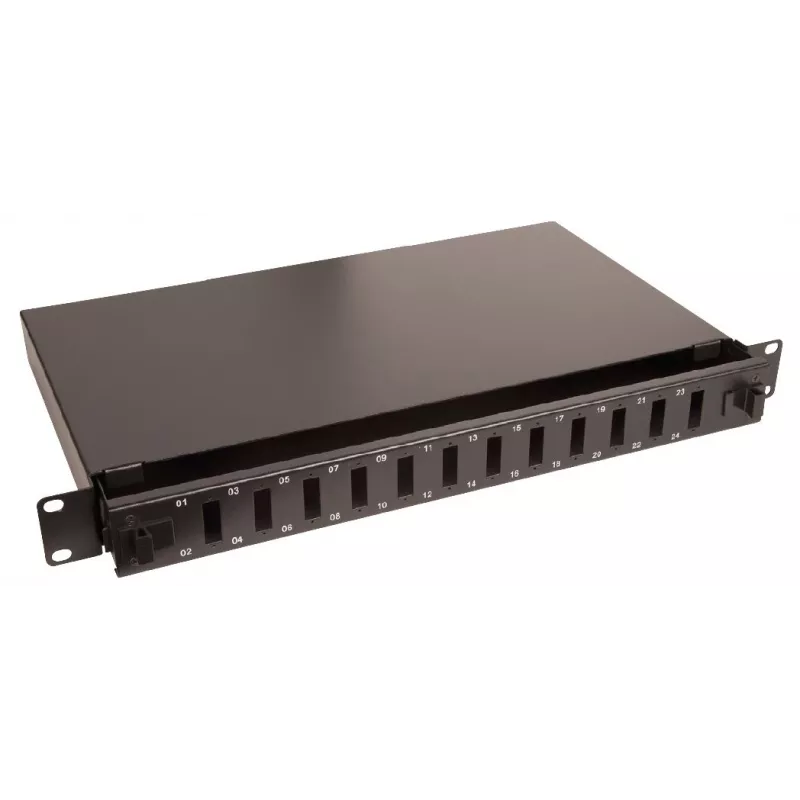

The Lanview LVO231551 is a 19" 1U patch panel for fiber optic installations, accommodating up to 12 SC Duplex or LC Quad adapters. Constructed from steel with a black finish, it includes rubber-coated strain relief suitable for blown-fibre and features fixtures for splice cassettes and cable management cutouts to secure cables with ties or Velcro straps.

Advantages

This 1U patch panel provides a compact, rack-mountable solution for organizing fiber connections, supporting both SC Duplex and LC Quad adapter configurations. The rubber-coated strain relief protects fiber during installation and operation, while the splice cassette fixtures and cable management cutouts help reduce cable stress and facilitate tidy routing. Multiple inlet options on the panel back side allow for PG screw connections and larger rectangular entries when required.

Suitable for

• Data center fiber distribution and patching
• Telecommunications racks and server cabinets
• FTTx aggregation points and fiber cross-connects
• Network rooms requiring mixed SC/LC adapter layouts

Key specifications

• Form factor: 19" 1U rack-mount patch panel
• Adapter capacity: up to 12 SC Duplex or LC Quad adapters
• Connector type: SC / LC (LC fiber optic connector type)
• Material: steel with black finish
• Back inlets: four Ø20 mm for PG screw connections and two rectangular 80 x 34 mm inlets with blank plates
• Strain relief: rubber-coated, suitable for blown-fibre
• Fixtures: splice cassette mounting and cable management cutouts for cable ties or Velcro straps
• Weight: 3.29 kg (product), package weight 3.7 kg

How to use

Mount the panel in a standard 19" rack occupying 1U of space. Install SC Duplex or LC Quad adapters into the front openings according to your patching requirements. Route incoming and outgoing fiber cables through the back inlets, secure them with the rubber-coated strain relief, and fasten fibers at the cable management cutouts using cable ties or Velcro straps. If required, fit splice cassettes into the provided fixtures for fiber splicing and organization.

Recommendations

When installing, verify adapter types (SC Duplex vs LC Quad) and prepare appropriate pigtails or jumper cables. Use the rectangular and Ø20 mm inlets to separate different cable entries and avoid sharp bends near the strain relief to maintain fiber performance.
