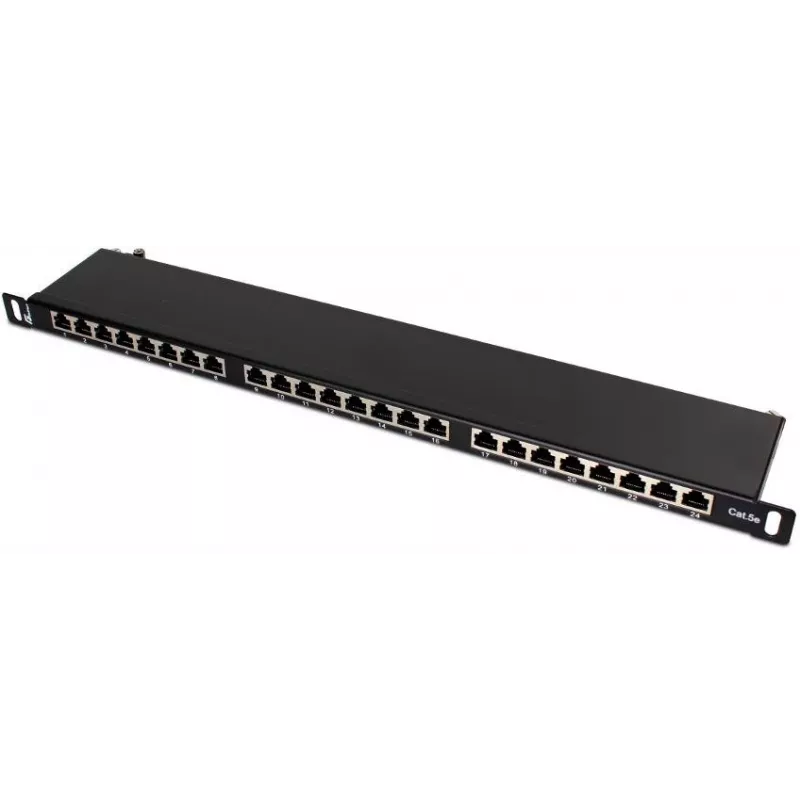

Patch panel FTP Cat.5e 24 Port 0.5U μαύρο GETFORT PGF-5EFTP24-B8

The GETFORT PGF-5EFTP24-B8 is a high-performance FTP (Foiled Twisted Pair) patch panel designed for Cat.5e networks. With 24 ports in a compact 0.5U form factor, it provides reliable connectivity and efficient cable management for 19-inch racks. Ideal for structured cabling in data centers, server rooms, and enterprise networks.

Advantages

Space-saving 0.5U design maximizes rack utilization. Shielded FTP construction reduces electromagnetic interference for stable data transmission. Color-coded wiring blocks support both T568A and T568B standards for easy termination. Durable SPCC steel housing ensures long-lasting performance.

Suitable for

• Data center cabling infrastructure
• Enterprise network closets
• Server room patching
• Telecommunications rooms
• Structured cabling systems requiring Cat.5e performance

Key specifications

• Product Type: Patch Panel
• Network Standard: Cat.5e
• Shielding Type: FTP (Foiled Twisted Pair)
• Number of Ports: 24
• Rack Unit Size: 0.5U
• Mounting Type: 19-inch Rack Mount
• Front Connector Type: RJ45 Female

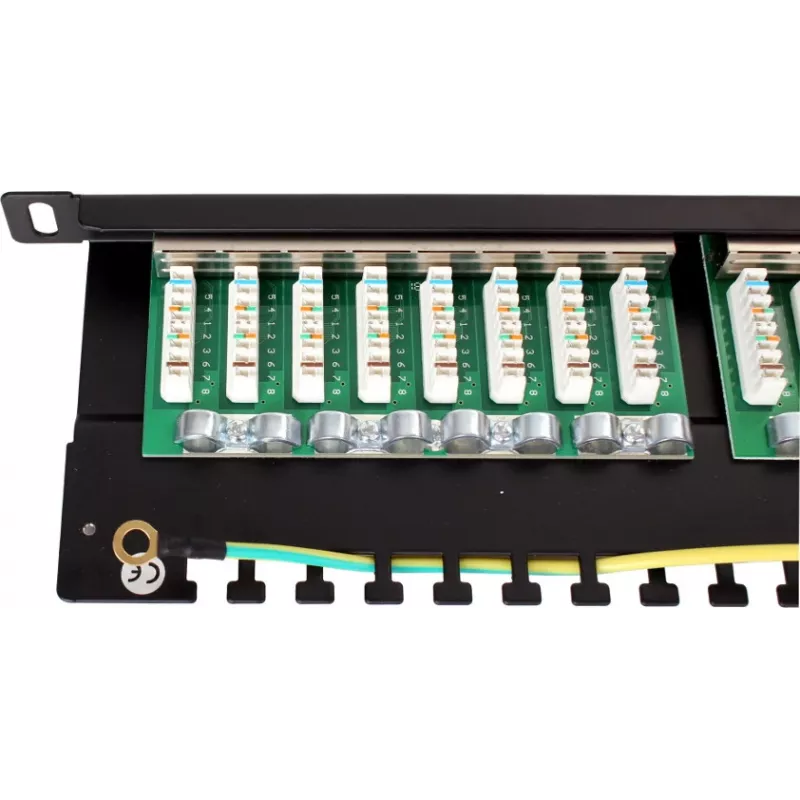

• Rear Termination Type: IDC (Insulation Displacement Connector)
• Wiring Standard: TIA/EIA-568-A & TIA/EIA-568-B
• Housing Material: SPCC Steel
• Grounding: Integrated Grounding Wire/Lug
• IDC Compatibility: 110-type and Krone compatible
• Port Labeling: Numbered 1-24
• RJ45 Mating Cycles: 750 cycles minimum
• IDC Termination Cycles: 200 cycles minimum
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -40°C to 70°C
• Humidity: 10% to 90% RH non-condensing
• Certifications: RoHS, CE
• Included Accessories: Cable ties, mounting screws

Recommendations

For optimal performance, use with Cat.5e or higher FTP cables and ensure proper grounding. Compatible with 110 and Krone punch-down tools.
