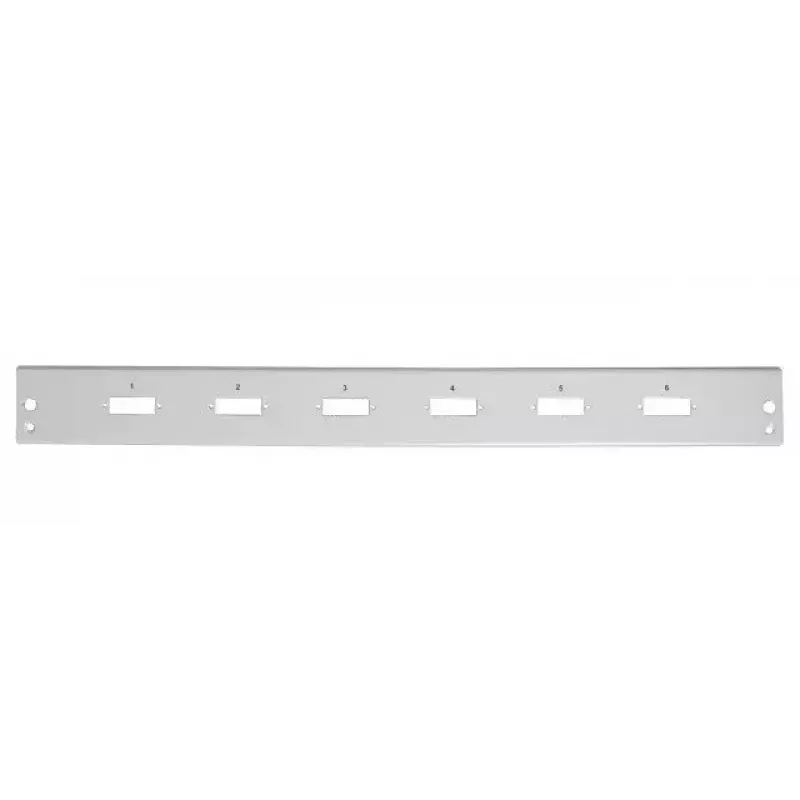

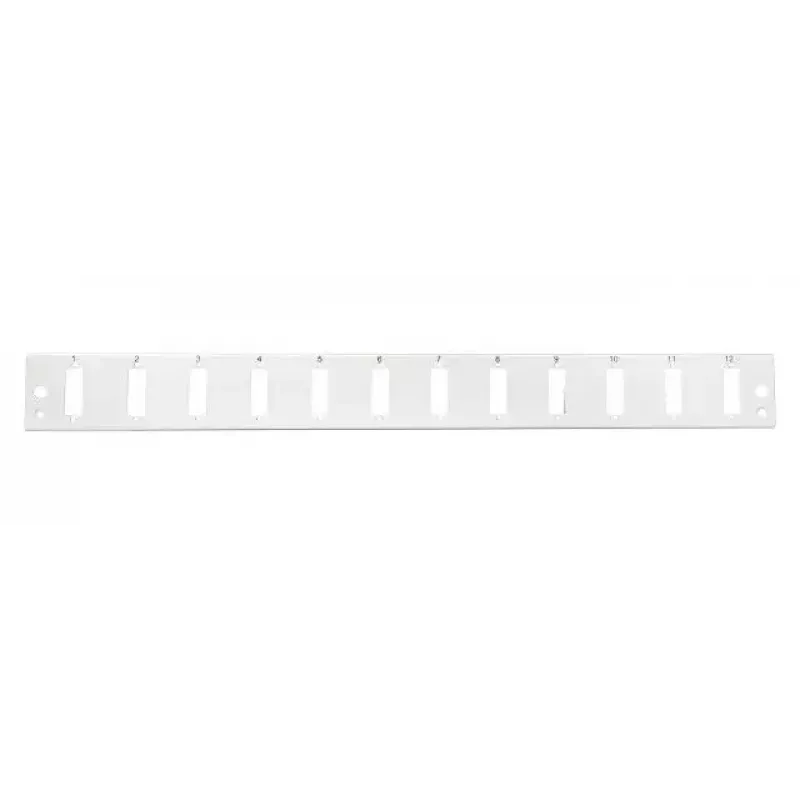

Patch Panel EFB Elektronik VSB-FP-12SC-D-H

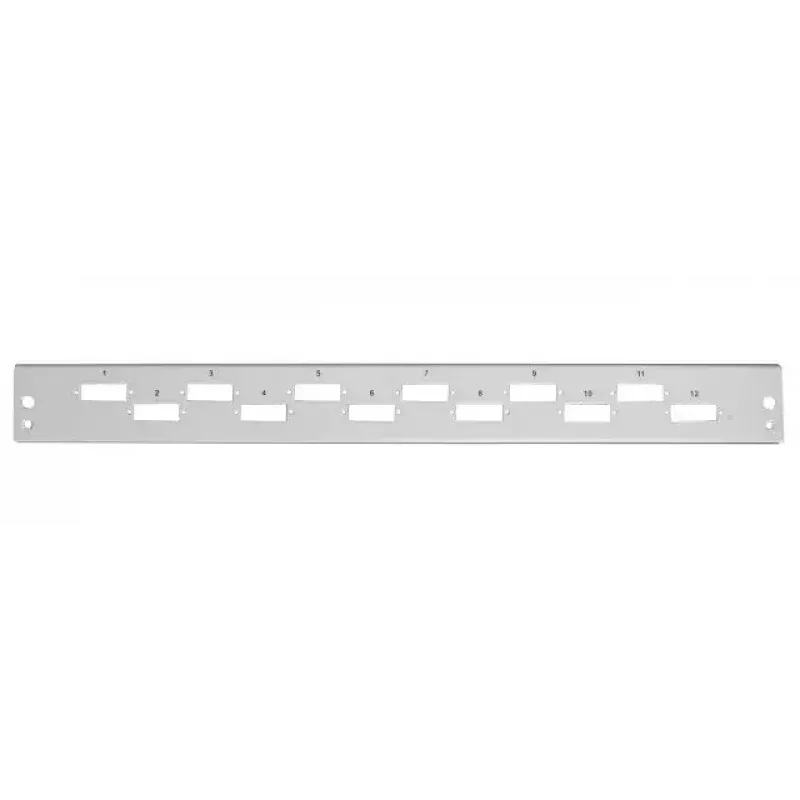

The EFB Elektronik VSB-FP-12SC-D-H is a 1U rack-mounted fiber patch panel front panel with SC duplex / LC quad breakouts, designed for standard 1U splice and breakout boxes. Breakouts are horizontally shifted to match enclosure layouts and simplify cable routing, supporting tidy fiber cable management in data centers and network cabinets.

Advantages

This front panel accommodates up to 12 SC connections while preserving space in a 1U rack unit. Horizontal breakout placement reduces cable bend and improves access to individual connectors. The design is compatible with standard splice and breakout boxes, enabling straightforward installation and maintenance of fiber links.

Suitable for

• Data centers and server rooms
• Telecommunications and network distribution racks
• Splice and breakout box installations requiring SC duplex / LC quad terminations
• High-density fiber management in 1U enclosures

Key specifications

• Form factor: 1U front panel
• Connector types: SC Duplex / LC Quad breakouts
• Max SC ports supported: 12
• Compatible with standard 1U splice and breakout boxes
• Breakout orientation: horizontally shifted
• Brand: EFB Elektronik, MPN: VSB-FP-12SC-D-H, EAN: 4049759228408

How to use

Install the front panel into a compatible 1U splice or breakout box following the enclosure manufacturer’s mounting instructions. Route incoming fiber cables to the horizontally shifted breakouts, perform splicing or connector termination as required, and secure fibers to avoid excessive bending. Verify connector polarity and test links after installation to confirm signal continuity.

Recommendations

Use appropriate fiber management accessories and splice trays within the 1U enclosure to maintain bend radii and protect splices. Follow standard fiber handling and safety procedures when terminating or testing connections.
