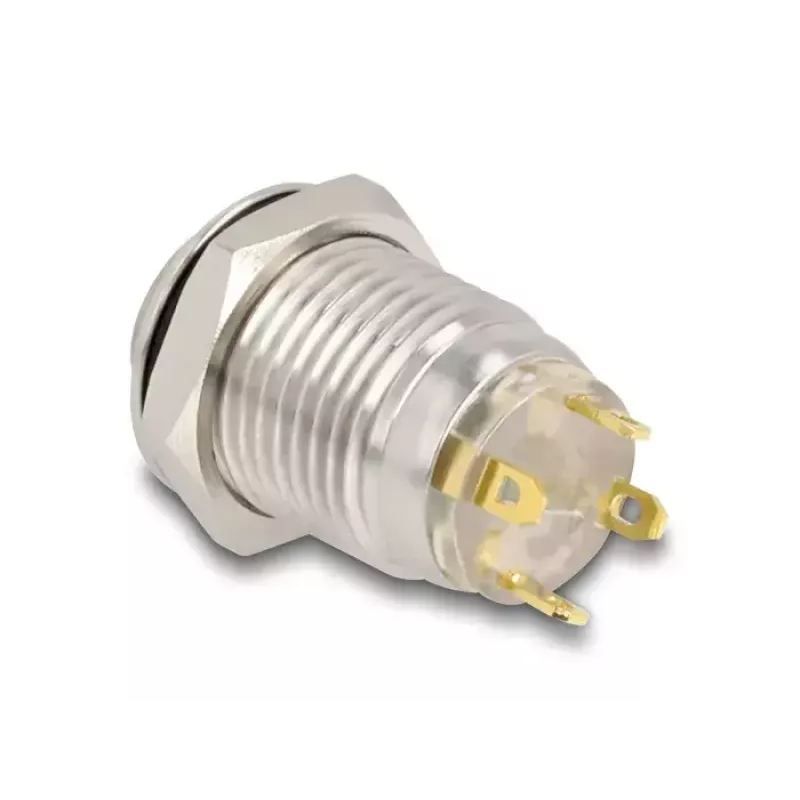

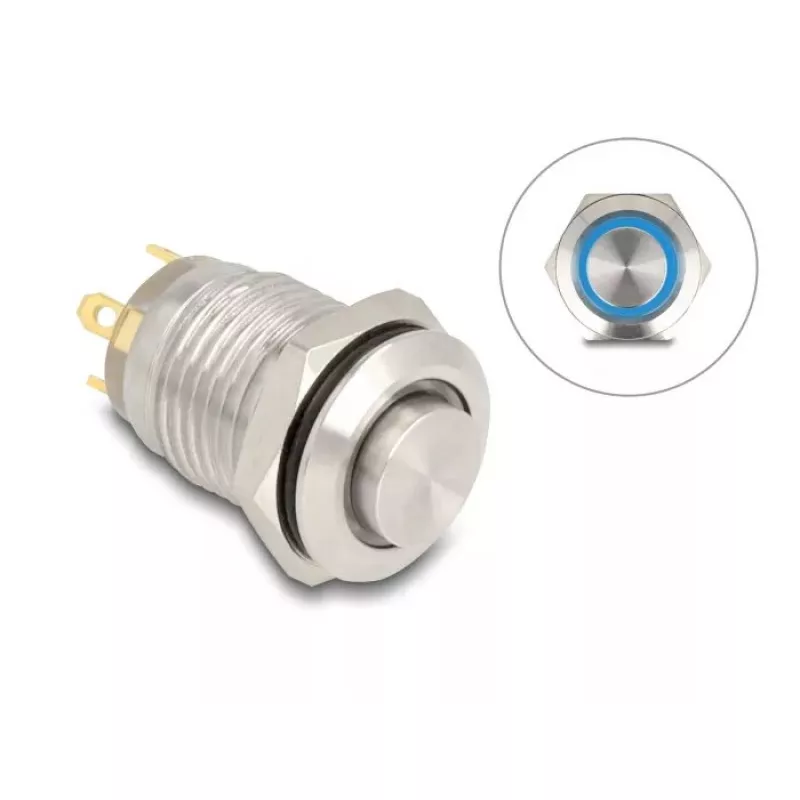

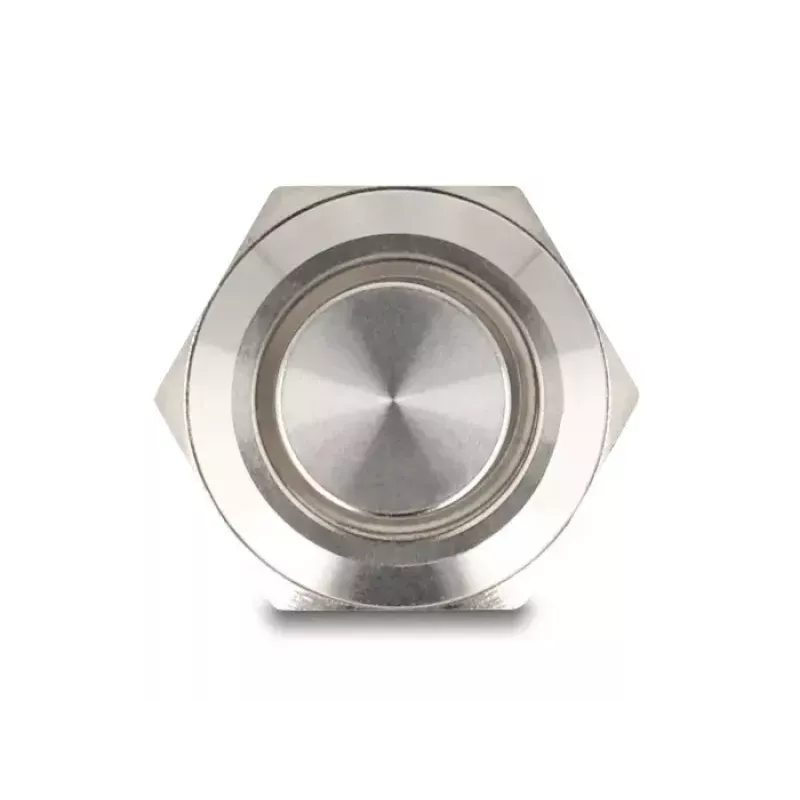

Πάνελ πλήκτρων DeLOCK 20984 ασημί 230V 3A

The DeLOCK 20984 push-button panel is a compact control element in a silver nickel and stainless steel housing designed for use in control panels, industrial equipment, automotive systems or consumer devices such as doorbells and timed lighting controls. It is rated for 230 V input voltage and a maximum switching current of 3 A, with a panel cutout width of 23 mm and a depth of 14 mm, providing a reliable push-button (momentary) operation.

Advantages

The push button features a durable metal construction combining nickel and stainless steel for corrosion resistance and a consistent appearance. It provides momentary (return-to-position) operation and offers both NO (normally open) and NC (normally closed) contact functionality to accommodate different switching needs. The compact dimensions make it suitable for tight panel layouts while supporting common mains voltage and moderate current loads.

Suitable for

• Control panels in industrial and building automation
• Control and regulation technology
• Automotive applications requiring momentary switches
• Consumer devices such as doorbells or hallway lighting with timers

Key specifications

• Model: DeLOCK 20984
• Operating voltage: 230 V
• Maximum current: 3 A
• Housing material: nickel and stainless steel
• Dimensions (W × D): 23 mm × 14 mm
• Contact types: NO (closer) and NC (opener)
• Operation: push button (returns to initial position)
• Brand: DELOCK
• MPN: 20984
• EAN: 4043619209842

How to use

Mount the push button into the appropriate panel cutout sized for a 23 mm width and secure it according to panel mounting instructions. Connect the supply and load wiring to the NO or NC contact terminals depending on whether a normally open or normally closed behaviour is required. Ensure the wiring and connected load do not exceed the specified 230 V and 3 A ratings. After installation, pressing the button will temporarily close or open the circuit and it will return to its initial position when released.

Recommendations

Use the DeLOCK 20984 push button within its specified electrical limits (230 V, 3 A) and in environments appropriate for nickel and stainless steel materials. Verify compatibility with your panel thickness and mounting method before installation and follow applicable safety and installation standards for mains-connected control devices.
