Πάνελ διαχείρισης καλωδίων Digitus DN-97669

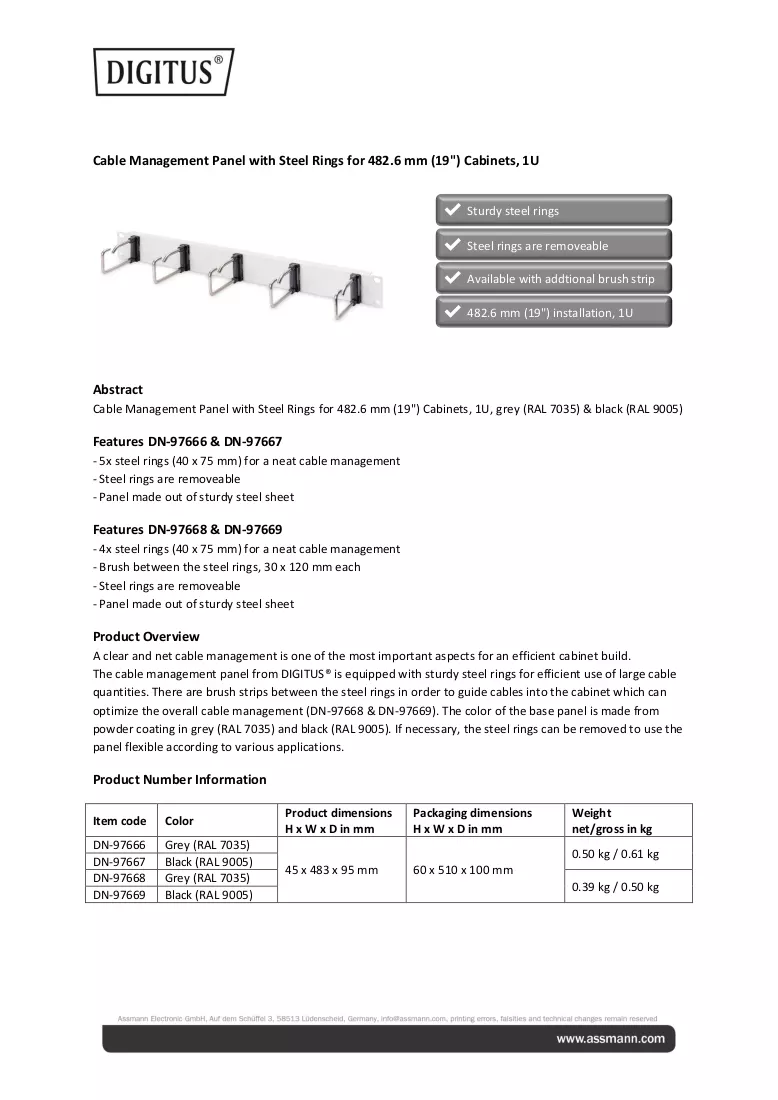

The DIGITUS Cable Management Panel DN-97669 is a 1U, 19" panel designed to keep cables organized in server and network cabinets. The panel features a sturdy steel sheet construction with four detachable steel brackets and a brush strip between the brackets to route cables into the cabinet while maintaining a neat appearance. The product is powder coated and available in light gray (RAL 7035) or jet black (RAL 9005); the supplied unit is black.

Advantages

The steel construction and powder coating ensure durability and resistance to wear. Four robust, removable steel brackets provide secure support for larger cable bundles, while the integrated brush strip prevents dust ingress and allows cables to pass through cleanly. The 1U height and 75 mm depth make the panel compatible with standard 482.6 mm (19") cabinets without occupying excessive rack space.

Suitable for

• Organizing network and server cables in 19" racks
• Managing larger cable bundles in data centers and server rooms
• Installing cable entry/exit points in network cabinets
• Retrofit or new cabinet installations requiring 1U cable management

Key specifications

• Model: DIGITUS DN-97669
• Rack compatibility: 482.6 mm (19")
• Height: 1U
• Depth: 75 mm
• Material: Steel sheet with powder coating
• Colour: Black (RAL 9005); also available in light gray (RAL 7035)
• Features: 4 steel brackets (detachable), brush management panel between brackets

How to use

Mount the panel into a free 1U position in a 19" cabinet using standard rack screws. Route cables through the brush strip openings and secure bundles with appropriate cable ties or fastening accessories to the steel brackets as needed. If required for your setup, dismantle individual steel brackets to adapt the panel layout to different cable routing scenarios, then reattach them securely.

Recommendations

Use appropriate fastening (cable ties, Velcro straps) and avoid overloading brackets beyond the capacity of the cabinet’s mounting and the bracket attachment points. Regularly inspect the brush strip and brackets for accumulated dust or wear and clean as part of routine cabinet maintenance.
