OWC Data Doubler Εσωτερικό Κιτ Τοποθέτησης Δίσκου για Mac Mini 2010

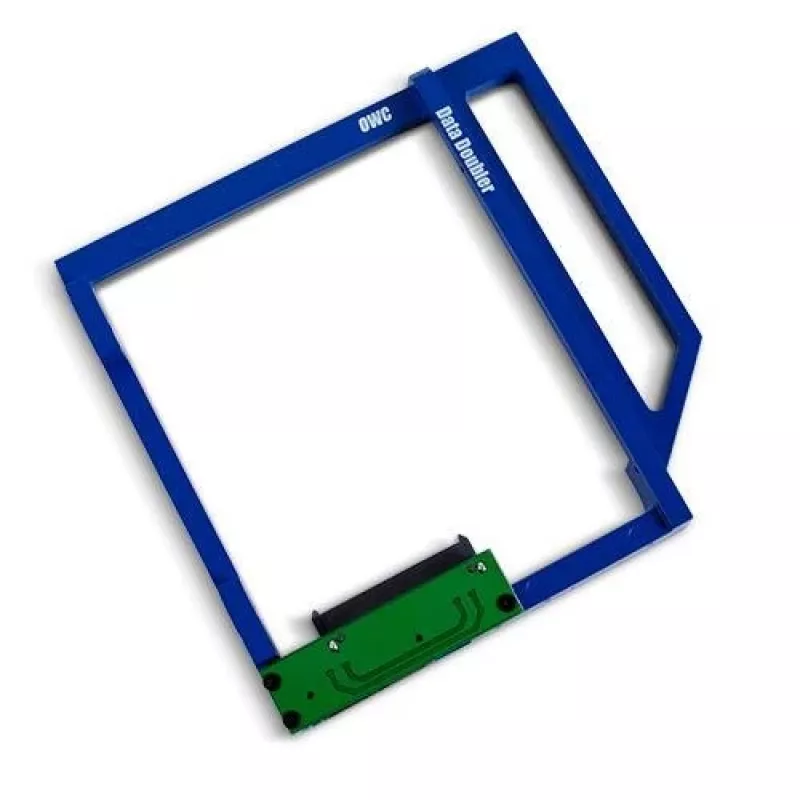

The OWC Data Doubler is a high-grade aluminum bracket that allows you to install a second 2.5-inch SATA HDD or SSD inside your Mac Mini (Mid 2010) by replacing the optical SuperDrive. This kit includes everything needed for a DIY upgrade, including the bracket, thermal sensor cable, installation tools, and mounting screws. It supports drives up to 9.5 mm height and enables software RAID via macOS Disk Utility. Perfect for expanding storage or boosting performance with an SSD.

Advantages

Add a second internal drive to your Mac Mini 2010 without external enclosures. Bootable drive support and software RAID capability. High-quality aluminum construction ensures durability and heat dissipation. Easy to install with included tools and instructions.

Suitable for

• Mac Mini (Mid 2010) models A1347 and Macmini4,1
• Users needing additional internal storage for media, backups, or dual-boot setups
• DIY enthusiasts comfortable with moderate installation difficulty

Key specifications

• Product Type: Internal Drive Mounting Kit
• Compatibility: Mac Mini (Mid 2010) A1347, Macmini4,1
• Drive Bay Location: Optical Drive Bay (replaces SuperDrive)
• Supported Drive Type: 2.5-inch SATA I/II/III HDD or SSD
• Max Drive Height: 9.5 mm
• Interface: SATA (SATA II 3.0Gb/s via Mac mini's port)
• Purpose: Add a second internal 2.5" SATA drive
• Bootable Drive Support: Yes
• RAID Support: Software RAID via macOS Disk Utility
• Material: High-grade aluminum bracket
• Included Components: Data Doubler bracket, thermal sensor cable, installation tools, mounting screws
• Installation Difficulty: Moderate (DIY, requires opening Mac mini)
• Hot-Swap Support: No (internal installation)
• Power Source: Internal Mac mini power
• Operating System Support: macOS

Recommendations

For best performance, pair with an OWC SSD. Ensure your Mac Mini is powered off and follow the included installation guide carefully. This kit is not compatible with Mac Mini models from other years.
