Οθόνη προβολής Elite Screens Spectrum 2,13 m (84 ίντσες) 16:9

The Elite Screens Spectrum motorized projection screen (2.13 m / 84") with a 16:9 aspect ratio provides a viewable area of 186 cm × 104.6 cm. The Matte White screen material offers a 160° wide viewing angle, standard 4-black masking borders and is durable and easy to clean. Available diagonal sizes range from 84" to 128" and aspect ratios include 4:3, 16:9 and 16:10. The unit ships fully assembled with a 3-prong power connection for plug-and-play use and is suitable for home theater and presentation environments.

Advantages

The electric operation and synchronous motor deliver quiet, reliable movement with low power consumption and extended operational life. Control options include an IR remote, detachable 3-way wall switch and a built-in 5–12 V trigger port (RJ-45) for synchronized Drop/Rise with the projector. Installation is simplified by a durable casing for wall or ceiling mounting, an included bubble leveler and an adjustable vertical limit switch to set drop and rise positions. The product is AMX- and CRESTRON-certified and comes with a 2-year parts and labor premium warranty (3-year warranty for Government, Education, Military and House of Worship purchases).

Suitable for

• Home theater viewing
• Business presentations and conference rooms
• Classrooms and lecture halls
• Places of worship and public venues

Key specifications

• Model: Elite Screens Spectrum (Electric84H)
• Diagonal: 2.13 m (84")
• Aspect ratio: 16:9 (also available in 4:3 and 16:10)
• Viewable area (W×H): 186 cm × 104.6 cm
• Screen material: Matte White, 160° viewing angle, 4-black masking borders
• Weight: 8.4 kg
• Controls: IR remote, detachable 3-way wall switch, built-in 5–12 V trigger (RJ-45), low-voltage IR/RF receivers
• Power: Ships with 3-prong power connection, plug & play
• Certifications: AMX, CRESTRON
• Warranty: 2-year parts & labor (3-year for Government/Education/Military/House of Worship)

How to use

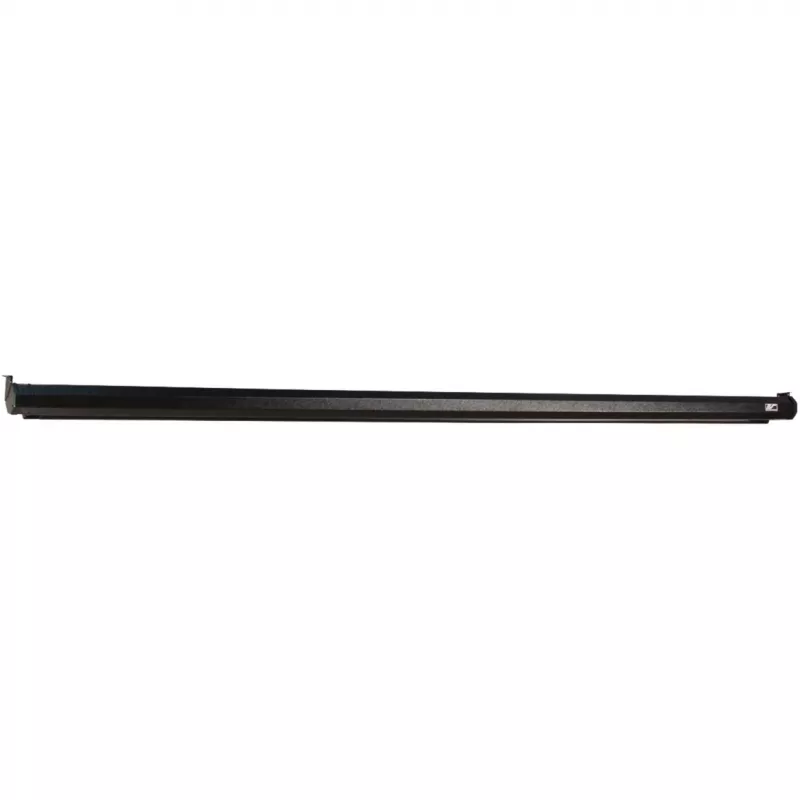

Mount the casing on a wall or ceiling using appropriate fixings (in-ceiling trim kit and L-brackets available as options). Connect the 3-prong power cord and use the included bubble leveler to ensure correct alignment. Operate the screen with the IR remote or the detachable 3-way wall switch, or connect the projector to the built-in 5–12 V trigger (RJ-45) to synchronize drop/rise with the projector's power cycle. Adjust the built-in vertical limit switch to set desired stop positions for drop and rise.

Recommendations

For best image quality, position the projector to match the 16:9 aspect ratio and center the projected image on the 186 cm × 104.6 cm viewable area. Regularly clean the Matte White surface with a soft, dry cloth and avoid abrasive cleaners. Use certified control accessories (optional IR/RF remotes, ZR800D, wireless trigger or in-wall switch) for full compatibility and reliable operation.
