Οθόνη LCD 22 inch AG Neovo TX-2202A WHITE — 1920x1080 Full HD

The TX-2202A White touch screen monitor utilises PCAP multi-touch technology, which is minimally affected by contamination. It offers 10-point multi-touch capability for an accurate and responsive touch experience, including responsiveness to latex gloves. Featuring a medical-grade power supply and versatile connectivity options (such as DisplayPort, HDMI, and VGA inputs), the TX-2202A White is ideal for uses like medical carts or information kiosks in healthcare settings. The screen is further enhanced by its IP65 and IK08 ratings, metal casing, and an edge-to-edge 7H tempered glass design, ensuring durability for continuous use in clinical environments.

10-Point PCAP Touch Screen
The TX-2202A White touch screen incorporates PCAP touch technology, offering a 10-point multi-touch capability that remains unaffected by contamination. This results in a fast, accurate, and responsive touch experience, comparable to that of smartphones and tablets, and is responsive even when wearing latex gloves.

Enhanced Safety with Medical-grade Power Supply
Compliance with IEC/EN 60601-1 standards for power supplies ensures the safety of staff and patients in clinical settings by preventing electric shocks and reducing energy-related and heat-related hazards.

Front IP65 Dust and Water Protection
The TX-2202A White’s multi-touch monitor features a front-sided IP65 rating, protecting against dust and liquid spills, making it ideal for high-traffic public areas.

Impact-Resistant Against Vandalism
With an IK08 rating and a metal casing, the touch display is protected against impacts and acts of vandalism, ensuring a long service life in high-traffic areas.

Ergonomic Monitors with Flexible Mounting

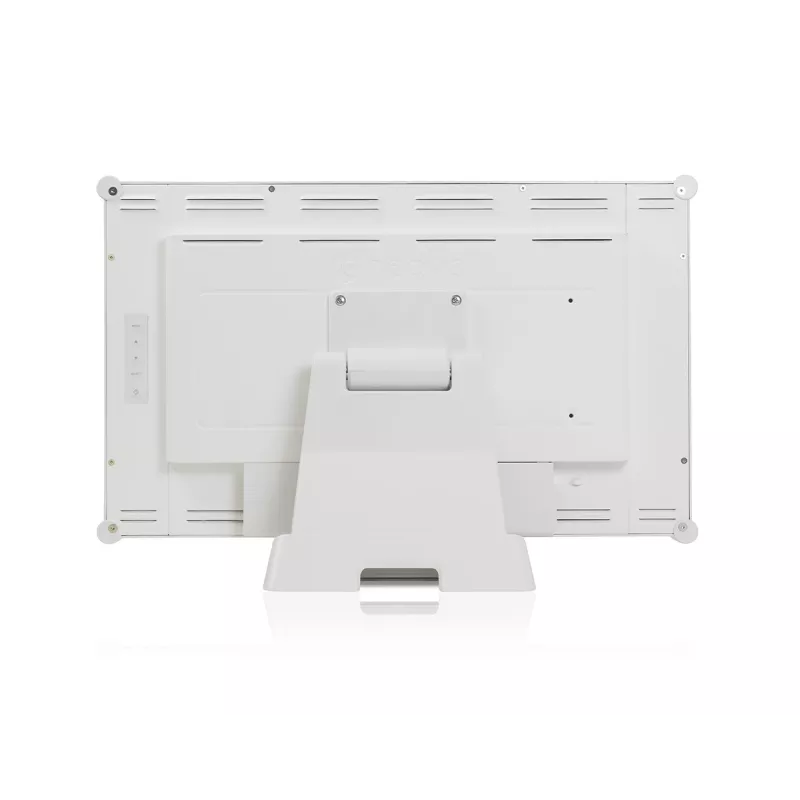

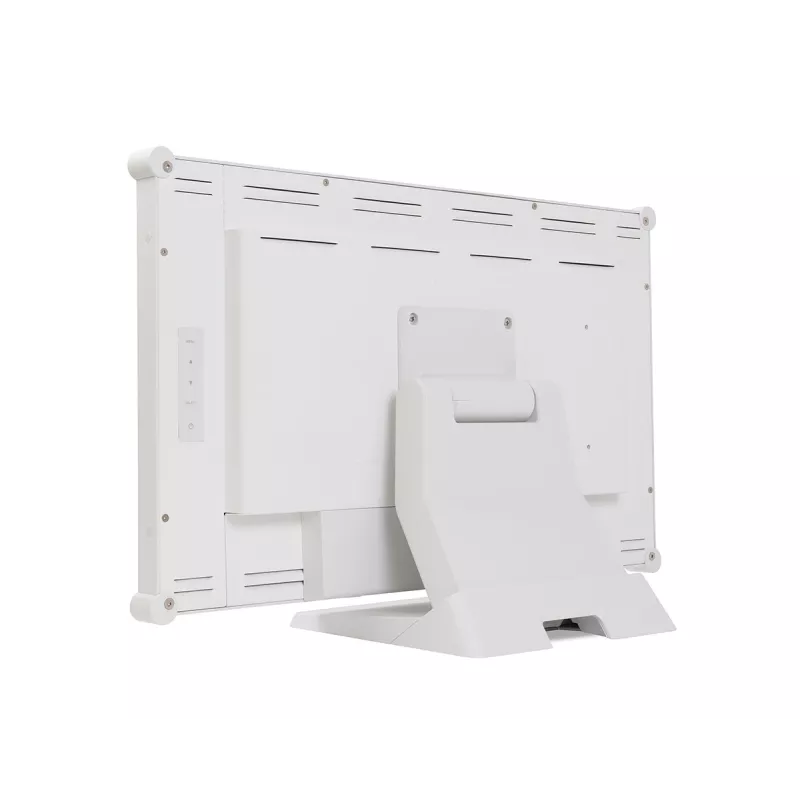

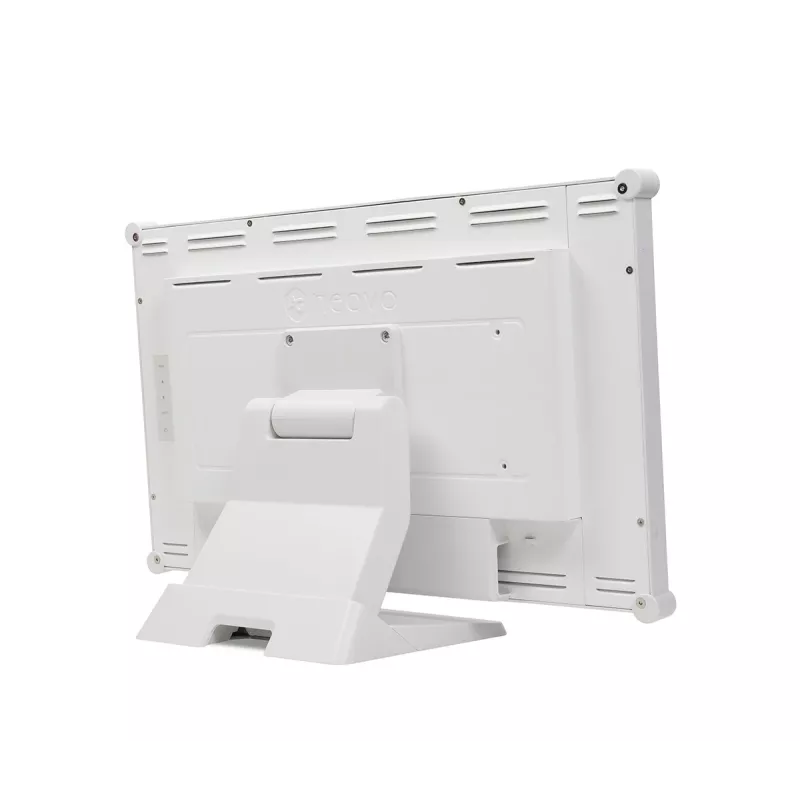

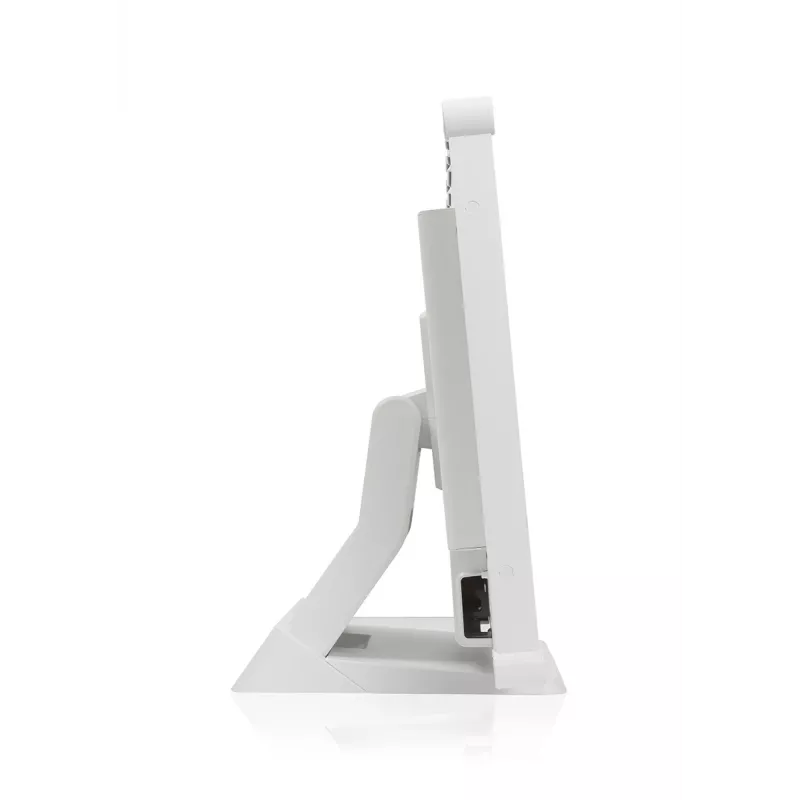

The TX-2202A White 22” 10-point touch screen monitor is VESA compatible, offering various mounting options, including desk, wall, or monitor arm mounting. The included ergonomic stand allows for a wide tilt range of -2 to 180 degrees, enhancing ergonomics during use.

Seamless integration
Touch support is compatible with various operating systems, including Windows, Linux, macOS, and certain Android versions. This allows for greater flexibility in choosing your operating system.

Versatile Connectivity

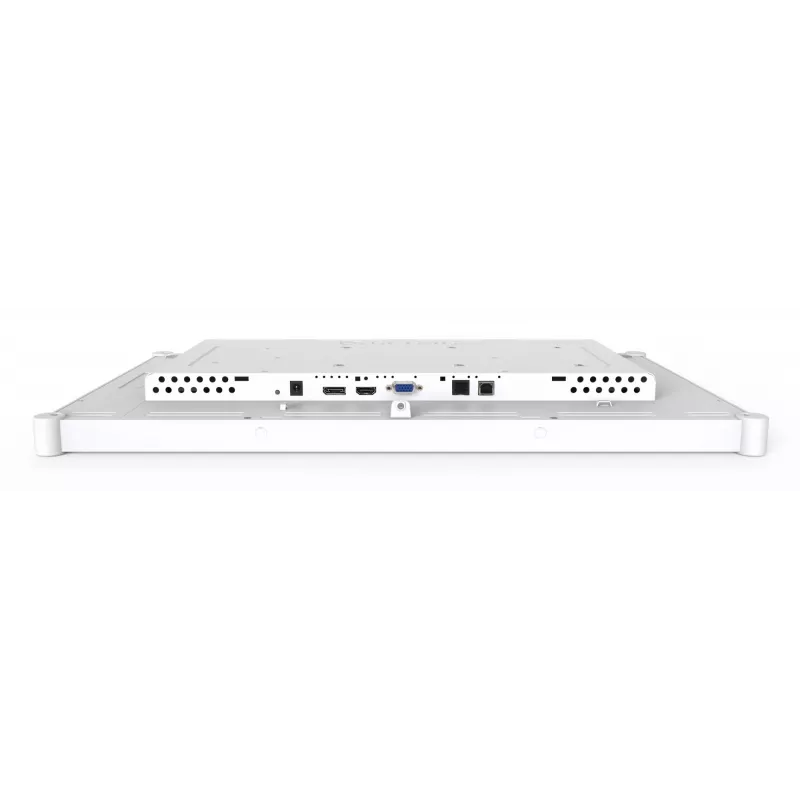

The TX-2202A White offers a range of connectivity options, making it easy for users to connect their devices, such as high-performance PCs or media players, using DisplayPort, HDMI, or VGA inputs.

How to use

Place the AG Neovo TX-2202A on a stable desk or mount it according to the manufacturer’s instructions for multi-monitor arrangements. Connect the monitor to a compatible PC or media source using the available video input on the unit and select the 1920x1080 output resolution in the source device settings for optimal image quality. Adjust display settings such as brightness, contrast and input selection through the monitor’s on-screen menu to match the ambient light and viewing preferences.

Recommendations

For consistent visual results, use the monitor at its native 1920x1080 resolution and allow a brief warm-up time after powering on. Position the screen at eye level and maintain appropriate viewing distance to reduce eye strain during extended use. For multi-monitor installations, verify input and mounting compatibility before setup.
