Οθόνη Hikvision DS-KD-INFO

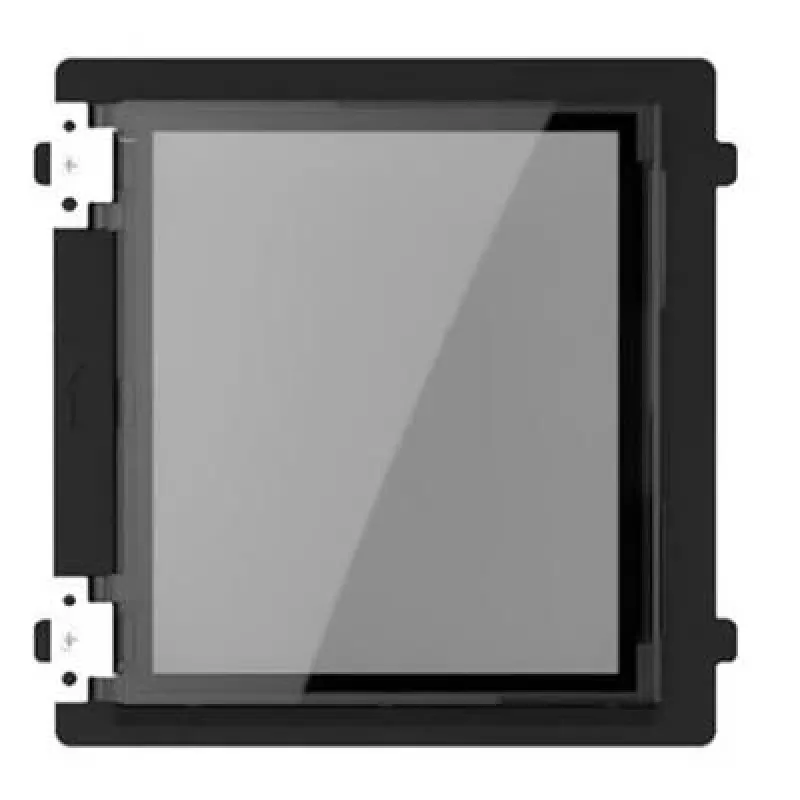

The Hikvision DS-KD-INFO is a compact black display accessory designed to integrate with Hikvision intercom systems. Sized to fit standard installations, the unit measures 94.4 mm in width, 98.4 mm in height and 33.8 mm in depth, and operates on a 12 V DC power supply. As part of the Pro Series, the display offers an updated user interface that works with door stations and connected cameras, providing live video viewing and the option to store messages and captured images. The device supports wireless networks and is intended to complement existing Hikvision control systems for improved monitoring and interaction.

Advantages

The DS-KD-INFO display provides a compact footprint and straightforward integration with Hikvision intercom products, enabling live feed viewing from door stations and connected cameras. Its 12 V DC operation ensures compatibility with common low-voltage installations, while Pro Series software enhancements deliver a more user-friendly interface and the ability to store messages and snapshots. Wireless network support simplifies connectivity where wired connections are restricted.

Suitable for

• Residential intercom upgrades and expansions
• Small office entry monitoring
• Integration with existing Hikvision door stations and cameras
• Sites requiring compact, low-voltage display accessories

Key specifications

• Color: black

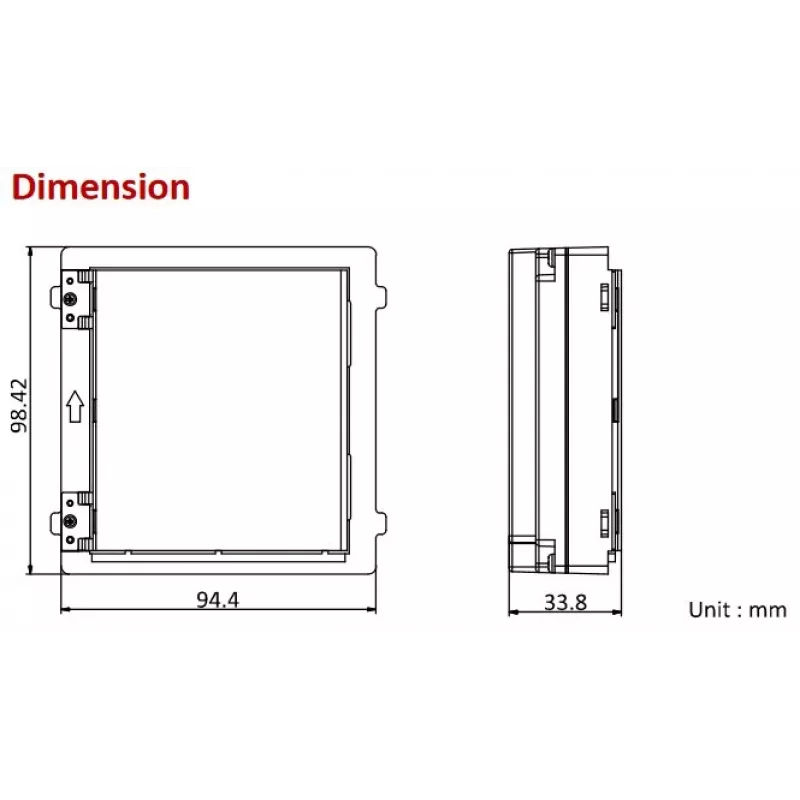

• Dimensions (W×H×D): 94.4 mm × 98.4 mm × 33.8 mm
• Power supply: 12 V DC
• Compatibility: designed for use with Hikvision intercom and camera systems
• Network: supports wireless connectivity
• User interface: Pro Series enhanced, supports live feed viewing and message/image storage

How to use

Install the DS-KD-INFO display in a suitable indoor location near the intercom master station or within reach of the door-station network. Connect the unit to a 12 V DC power source and pair it with the existing Hikvision system following the manufacturer’s connection and network setup procedures. Use the Pro Series interface to select camera or door-station feeds, view live video, and access stored messages or captured images. If using wireless networking, ensure a stable Wi‑Fi connection and proper signal strength for reliable video streaming.

Recommendations

Place the display away from direct sunlight and sources of heat to maintain screen visibility. For optimal performance, use a stable 12 V DC power supply and keep firmware updated to benefit from interface improvements and compatibility with other Hikvision devices.
