Οπτικό ανακλασίμετρο με CCTV tester CS-R8-80H

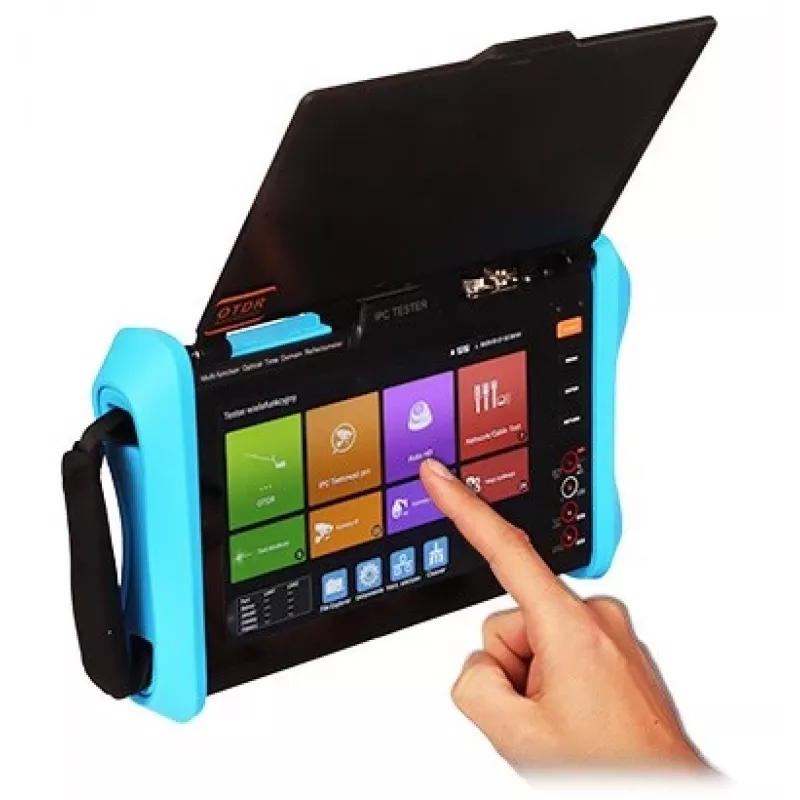

The CS-R8-80H is a professional optical reflectometer (OTDR) combined with a CCTV tester, designed for field technicians and network installers. It integrates multiple testing functions including OTDR, VFL, OPM, OLS, and CCTV video testing, making it an all-in-one solution for fiber optic and surveillance system maintenance.

Advantages

Combines OTDR and CCTV tester in one portable device, saving time and equipment costs. Features a 5-inch IPS touchscreen for easy operation, long battery life of up to 10 hours, and supports multiple video formats including AHD, TVI, CVI, and CVBS. The built-in VFL with 10mW output helps locate fiber breaks quickly.

Suitable for

• Fiber optic network installation and maintenance
• CCTV system testing and troubleshooting
• Telecommunications and data center technicians
• Field service engineers

Key specifications

• OTDR Wavelengths: 1310nm / 1550nm
• Dynamic Range: 28dB / 26dB
• Event Dead Zone: 1m
• Attenuation Dead Zone: 5m
• Test Range: Up to 80km
• VFL Output Power: 10mW (650nm)
• OPM Wavelength Range: 850/1300/1310/1490/1550/1625nm
• OPM Measurement Range: -70 to +10dBm
• OLS Wavelengths: 1310nm / 1550nm
• OLS Output Power: -5dBm
• CCTV Video Input: AHD, TVI, CVI (up to 8MP), CVBS
• CCTV Power Output: DC 12V/3A
• Display: 5-inch IPS Touchscreen, 800x480 pixels
• Internal Storage: 8GB (supports SD card)
• Battery: 7.4V 5200mAh Li-ion, up to 10 hours
• Cable Test: RJ45 TDR, UTP/STP, Continuity, Short, Open, Cross

Recommendations

For optimal performance, use with standard SC/APC or SC/UPC connectors. The device is compatible with most fiber optic cables and CCTV cameras. Ensure battery is fully charged before field use.
