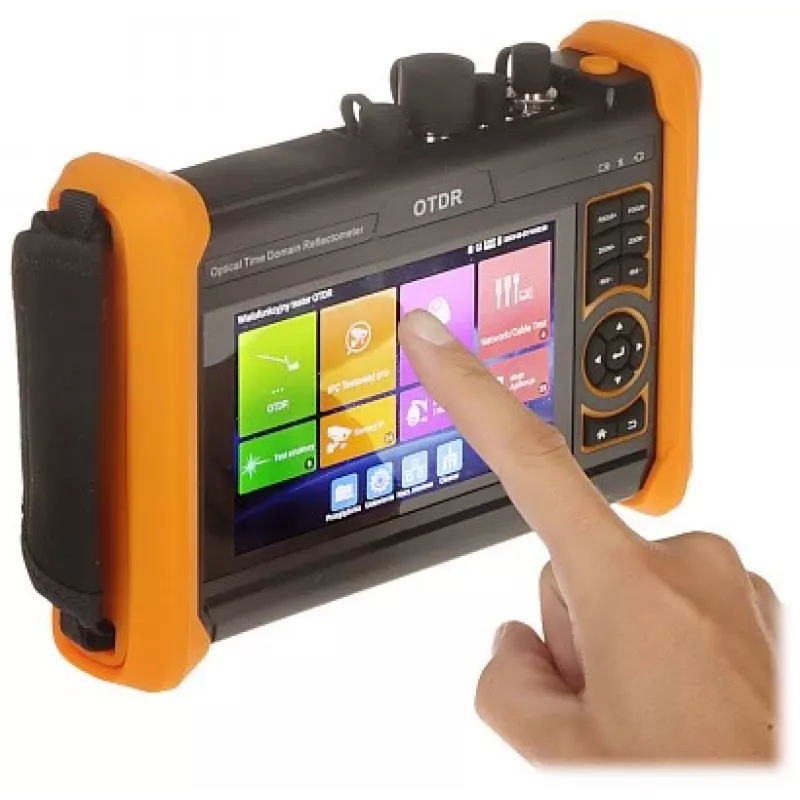

Optical Time Domain Reflectometer (OTDR) με CCTV-Tester CS-R3-50H Delta Tester

The CS-R3-50H is a professional multifunction OTDR and CCTV tester designed for field technicians and network engineers. It combines high-performance optical fiber testing with comprehensive CCTV and IP camera diagnostics, making it an essential tool for installation, maintenance, and troubleshooting of fiber optic and surveillance systems.

Advantages

All-in-one solution: OTDR, OPM, OLS, VFL, CCTV tester, IP camera tester, TDR cable tester, and HDMI monitor. Large 7-inch IPS touchscreen with 1920x1200 resolution for clear viewing. Long battery life up to 16 hours for all-day fieldwork. Supports up to 8MP/4K video formats and H.265/H.264 IP cameras.

Suitable for

• Fiber optic network installation and maintenance
• CCTV system setup and troubleshooting
• IP camera configuration and testing
• Copper cable testing (RJ45)
• PTZ camera control via RS485

Key specifications

• OTDR: 1310/1550 nm, dynamic range 28/26 dB, event dead zone ≤1.5 m, attenuation dead zone ≤8 m, range 0-80 km
• CCTV: AHD/TVI/CVI/CVB up to 8MP/4K, IP camera H.265/H.264, ONVIF, RTSP
• PoE output: 12V/3A (24W max), DC output: 12V/3A and 5V/2A
• OPM: -70 to +10 dBm, OLS: 1310/1550 nm, VFL: 10 mW
• TDR: RJ45, length, short, open, cross, impedance
• HDMI input/output up to 4K
• Battery: 7.6V 7800mAh Li-ion, up to 16 hours
• Storage: 8GB SD card (expandable)
• Connectivity: Wi-Fi, USB, RJ45
• PTZ control: RS485, multiple protocols

Recommendations

Ideal for professional technicians requiring a versatile, portable tester for both fiber optics and CCTV systems. The CS-R3-50H streamlines field work by replacing multiple devices with one rugged unit.
