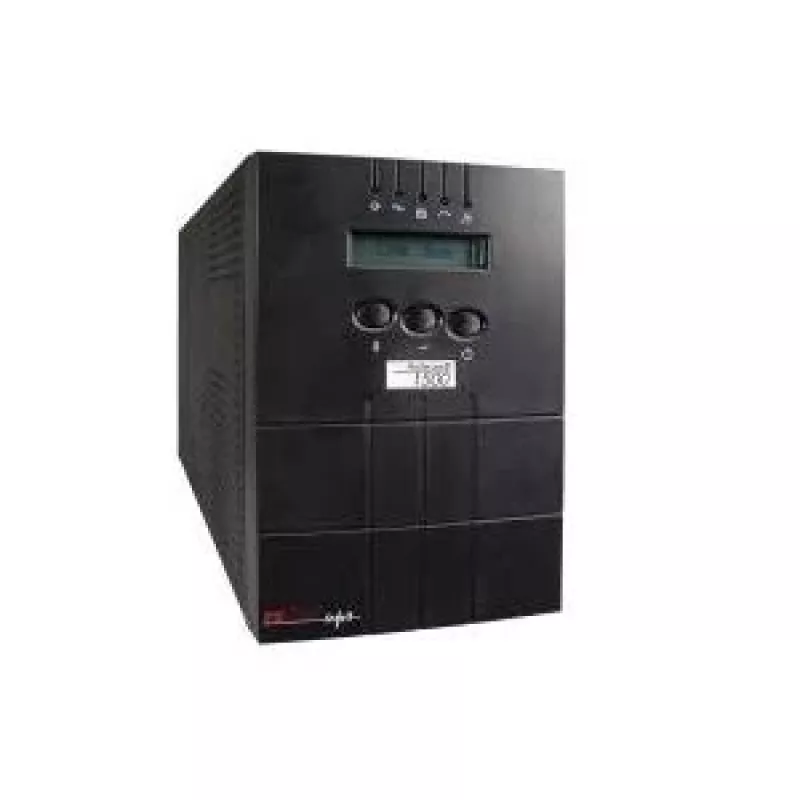

Online UPS ROLINE ProSecure III 1000

The ROLINE ProSecure III 1000 is an online double-conversion UPS designed to provide continuous, stable power for essential computer systems and servers. With a nominal output voltage of 230 V, pure sine-wave output (<3% THD) and a high-efficiency design (95% typical), this UPS protects equipment from power failure, sags, surges, under/over voltage, switch transients, line noise, frequency variation and harmonic distortion. The unit includes an LCD front panel, battery remaining time display and supports hot-swappable batteries for extended runtime.

Advantages

The UPS uses true on-line double-conversion technology and a fully digitized microprocessor control to deliver continuous clean power. It offers power factor correction, short-circuit and overload protection, automatic diagnostics with battery check, advanced battery management (ABM) and automatic charging even when the UPS is switched off. Communication options include USB and RS-232 ports with monitoring software, and surge protection is provided for network/fax/modem lines.

Suitable for

• Small and medium servers
• Critical workstations and network equipment
• Storage devices and external arrays requiring clean power
• Office IT infrastructure and communication equipment

Key specifications

• Model: ROLINE ProSecure III 1000 (MPN: 19.40.1062, EAN: 7611990130221)
• Topology: Online double-conversion UPS
• Nominal output voltage: 230 V
• Output waveform: Pure sine wave <3% THD
• Efficiency: 95% (typical)
• Weight: 14 kg
• Dimensions (W x H x D): 238 x 152 x 420 mm
• Color: Black
• Display: LCD front panel, multiple language support
• Interfaces: USB, RS-232
• Features: Hot-swappable battery, cold start (DC start), EPO, ABM, power factor correction
• Software: UPS management software for Windows (NT/2000/XP/7/8/Server 2003/2008/2012 x86/x64), Mac OS X (Intel) and Linux

How to use

Install the UPS on a stable, well-ventilated surface and connect the incoming AC mains to the input. Attach critical equipment to the battery-backed outlets and non-critical loads to segmented receptacles if required. Configure communication by connecting a USB or RS-232 cable to a monitoring host and install the supplied UPS management software on your server or workstation. When batteries are depleted, follow the LCD prompts for hot-swappable battery replacement or consult the battery replacement warning on the display.

Recommendations

Place the UPS in a dry environment with ambient temperature within the manufacturer’s specified range, avoid blocking ventilation, periodically test the battery runtime, and keep the management software updated to ensure reliable monitoring and orderly shutdowns during extended outages.
