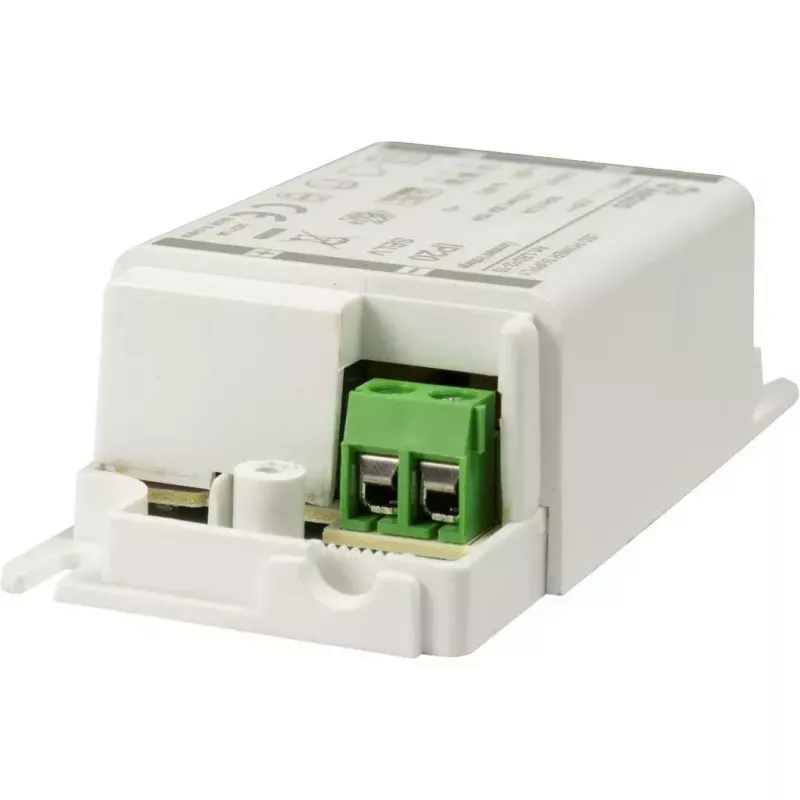

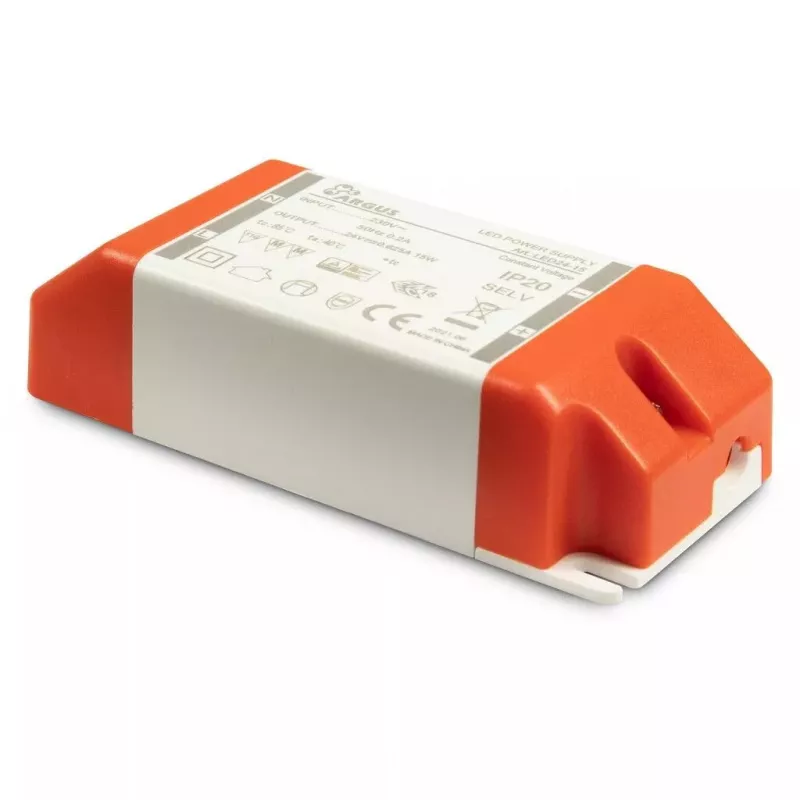

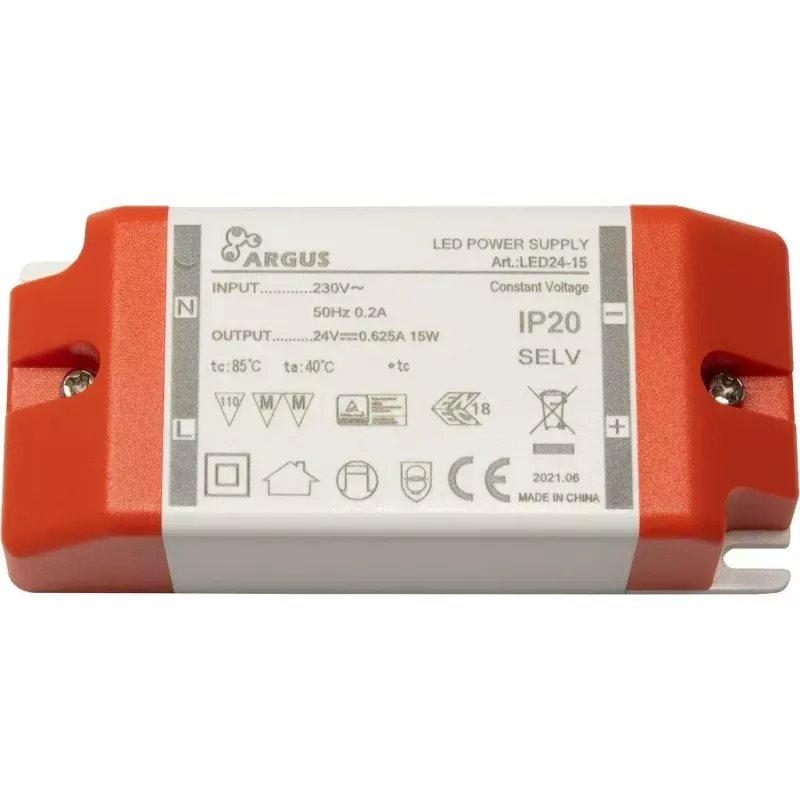

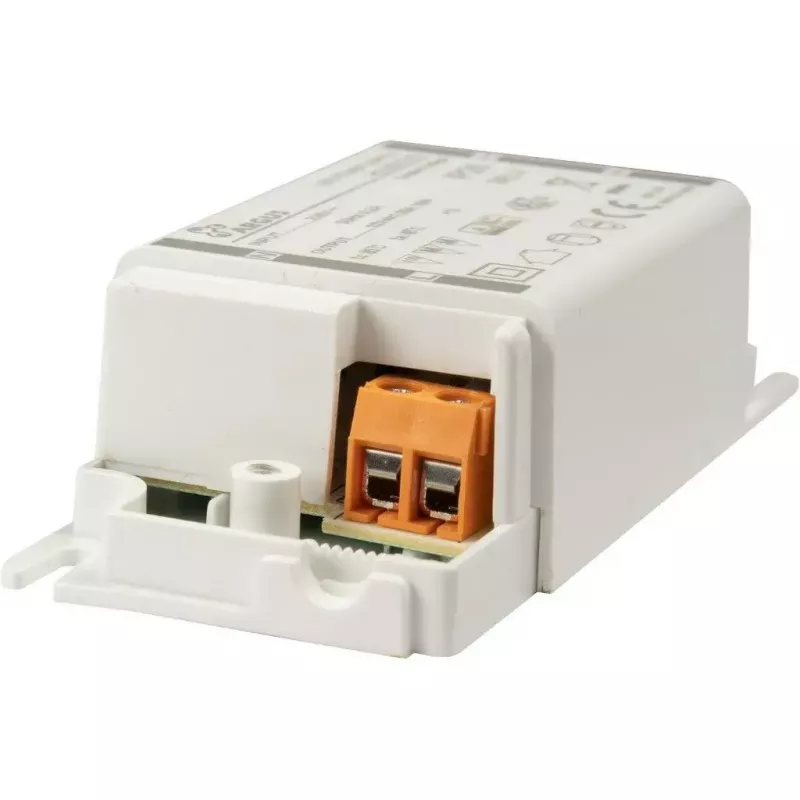

Οδηγός LED Inter-Tech LED24-15

The Inter-Tech LED24-15 is a 15W LED driver delivering a 24V DC output at 625mA. Designed for LED lighting applications, it supports an AC input of 207–253V at 50/60Hz and draws 0.2A. The compact IP20-rated unit measures 40 x 90 x 24 mm and has an MTBF/lifetime of 100,000 hours, providing a durable power source for compatible LED fixtures.

Advantages

The LED Driver Inter-Tech LED24-15 offers five built-in protective circuits to safeguard connected LEDs and circuitry from common electrical faults. Its compact dimensions facilitate installation in confined spaces, and the certified IP20 protection class suits indoor installations. The specified lifetime (100,000 hours) and stable 24V/625mA output contribute to reliable, long-term operation.

Suitable for

• Indoor LED strip lighting and LED modules requiring 24V DC
• Residential and commercial downlights, signage, and accent lighting
• Installations where compact power supplies are needed

Key specifications

• Model: Inter-Tech LED24-15 (MPN: 88882205, EAN: 4260455647007)
• Output: 24V DC, 625 mA, 15 W
• Input: 207–253V AC, 50/60 Hz, 0.2 A
• Protection class: IP20
• Dimensions: 40 mm (W) × 90 mm (D) × 24 mm (H)
• Lifetime / MTBF: 100,000 hours

How to use

Mount the LED24-15 in a dry, ventilated indoor location compatible with its IP20 rating. Connect the AC mains input to the designated input terminals following local electrical codes and ensure power is off during installation. Connect the LED load to the 24V DC output, observing correct polarity and the maximum output current (625 mA). After secure connections, restore power and verify the LED load operates within specified voltage and current limits.

Recommendations

The driver is intended for indoor installations only; avoid exposure to moisture or direct outdoor conditions. Use with LED fixtures and modules rated for 24V DC and ensure combined load does not exceed 15 W or 625 mA. If in doubt, consult a qualified electrician for safe installation.
