OBO Bettermann Vertr Τερματικό έλασμα δαπέδου BEB 200 FS (7083203)

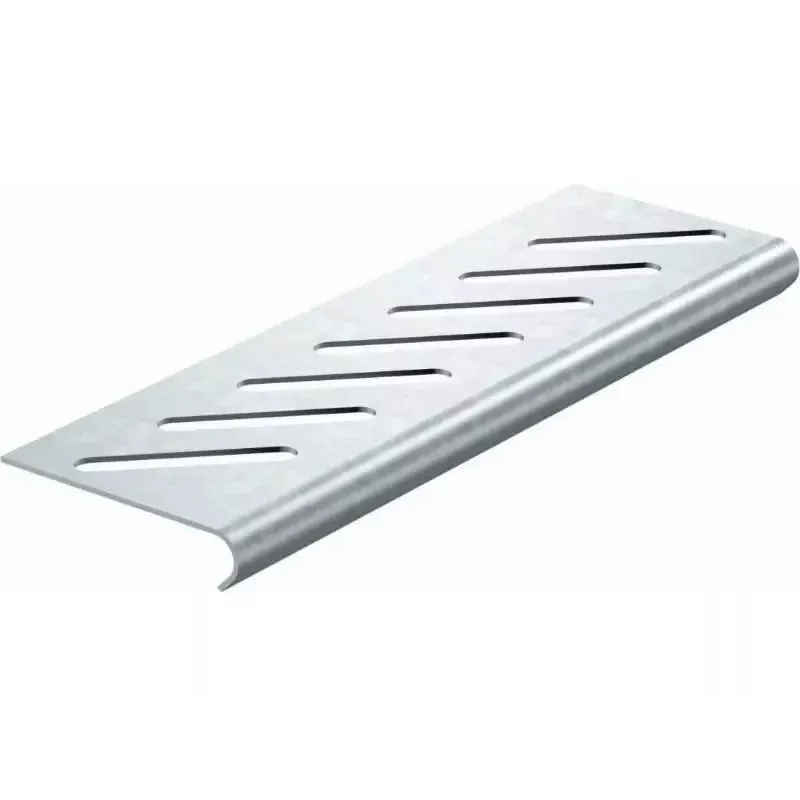

The OBO Bettermann Vertr Boden-Endblech BEB 200 FS is a solid steel end plate designed to close off screed-flush underfloor channels, providing a clean and secure system termination. Its pre-galvanised finish offers corrosion protection, ensuring durability in indoor installations.

Highlights

• Pre-galvanised steel construction for corrosion resistance
• Designed for screed-flush underfloor systems

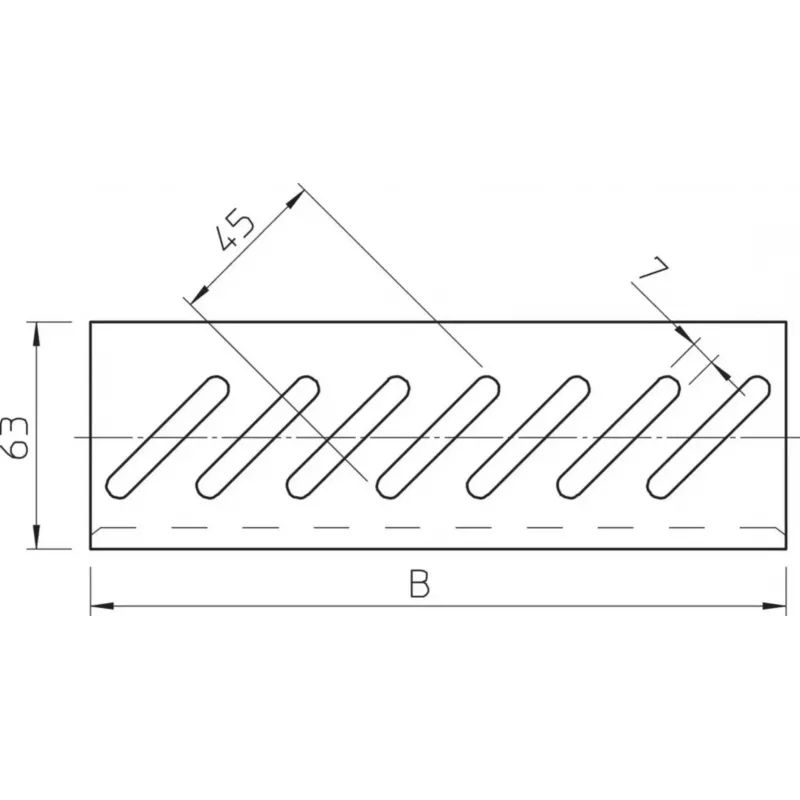

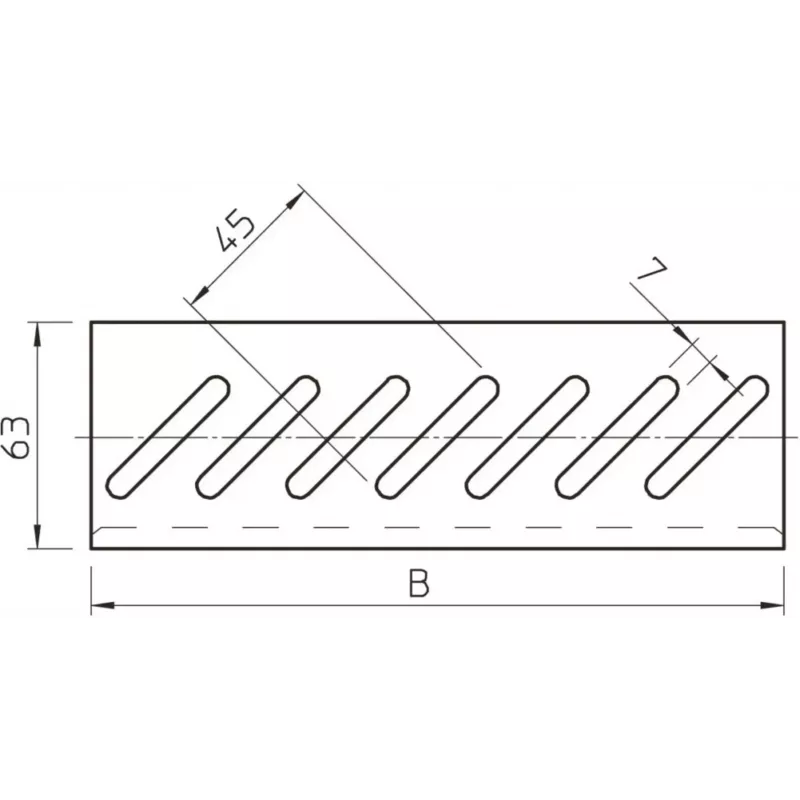

• Dimensions: 200 mm length, 100 mm width, 1.5 mm thickness
• Simple insert/fix installation into channel end

In daily use

This end plate is installed at the end of underfloor channels to close them off, preventing debris ingress and providing a finished appearance. Its galvanised surface blends with metallic channel systems and withstands the demands of indoor environments.

Full specifications

• Product Type: End Plate
• System Type: Screed-flush underfloor systems
• Material: Steel
• Surface Finish: Pre-galvanised
• Length: 200 mm
• Width: 100 mm
• Thickness: 1.5 mm
• Application: Closing off underfloor channels/ducts
• Installation Method: Screed-flush
• Compatibility: OBO Bettermann screed-flush underfloor systems
• Function: System termination
• Corrosion Protection: Yes (due to galvanisation)
• Colour: Metallic (Galvanised)
• Mounting Type: Insert/Fix into channel end
• Environmental Suitability: Indoor
• Construction Type: Solid plate

Final note

A reliable component for completing OBO Bettermann underfloor installations, offering both protection and a neat finish.
