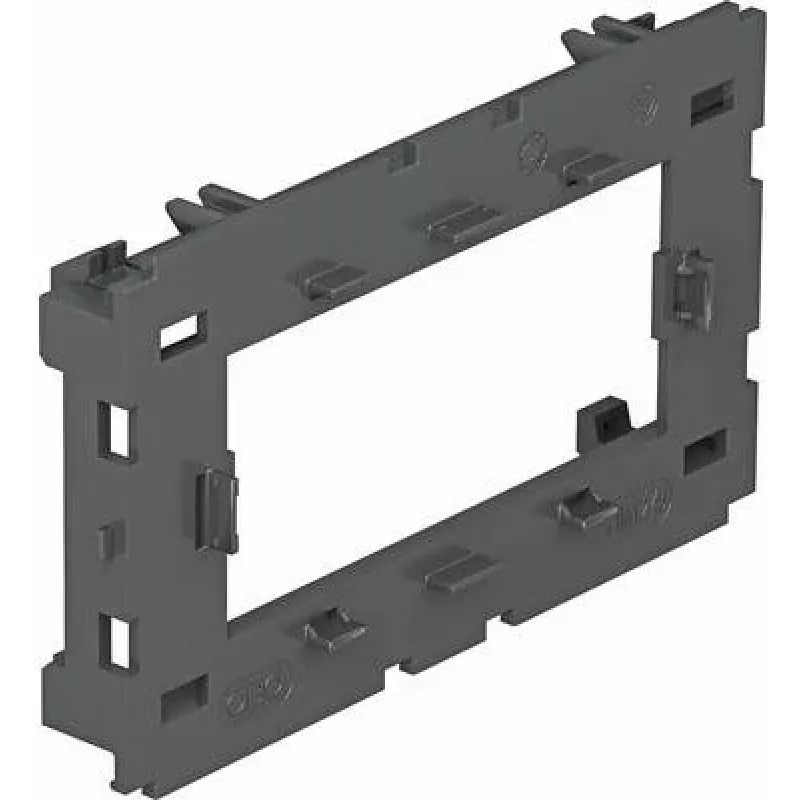

OBO Bettermann Βάση μονάδας για Modul 45, ανοιχτή, ανοιχτό γκρι (6288576)

Electricians and panel builders working with OBO Rapid 45 or ISS trunking systems often need a reliable way to mount a single Modul 45 device without extra hardware. This open mounting bracket snaps directly into the trunking profile, providing a secure base for one module in seconds.

Key specifications

• Product type: Module mounting bracket
• Design: Open
• Module system compatibility: Modul 45
• Trunking system compatibility: OBO Rapid 45, OBO ISS
• Material: PC/ABS (polycarbonate/acrylonitrile butadiene styrene)
• Colour: Light grey (RAL 7035)
• Halogen-free: Yes
• Surface protection: Untreated
• Mounting type: Snap-in
• Number of modules supported: 1
• Application area: Device installation trunking systems, underfloor systems
• Width: 71 mm
• Height: 45 mm
• Depth: 45 mm
• Operating temperature range: -5°C to +60°C

Why choose it

The bracket's halogen-free PC/ABS blend meets strict fire safety requirements in public buildings, while the snap-in design eliminates screws and reduces installation time. Its light grey finish matches standard trunking, and the open construction allows easy access for wiring and future maintenance.

Ideal use cases

• Mounting sockets, switches, or data outlets in OBO Rapid 45 trunking
• Retrofitting additional modules in existing installations
• Underfloor systems where a low-profile, tool-free mount is needed
• Projects requiring halogen-free materials, such as hospitals or schools

Good to know

The bracket is designed for one Modul 45 device and is compatible with all standard Modul 45 inserts. It is not suitable for high-vibration environments; for such cases, consider a closed or reinforced bracket. Always verify trunking dimensions before ordering.
