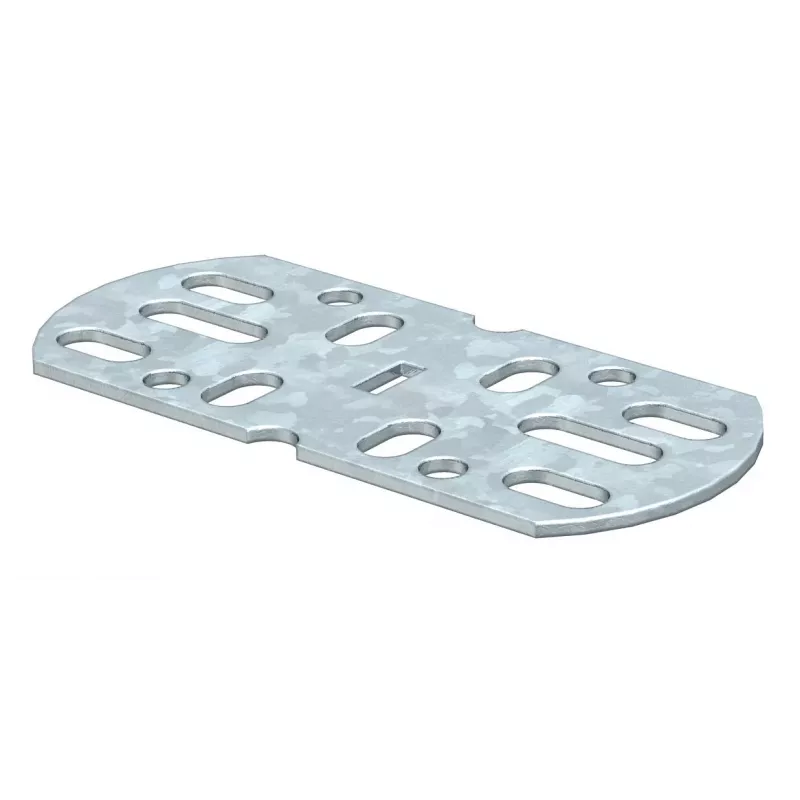

OBO Bettermann Σύνδεσμος κατά μήκος και γωνίας VF AZK 45x100 FT 6066550

For electricians and installers working with OBO Bettermann AZ-Kanal cable trunking, the VF AZK 45x100 FT connector provides a reliable way to join trunking sections end-to-end or at angles. It fits inside the 100 x 45 mm channel profile, maintaining a clean cable pathway.

Key specifications

• Type: Longitudinal and angle connector
• Compatible system: OBO Bettermann AZ-Kanal
• Compatible channel dimensions: 100 x 45 mm
• Material: Steel
• Surface treatment: Hot-dip galvanised (FT)
• Mounting: Internal
• Colour: Silver

Why choose it

Hot-dip galvanisation gives the connector long-term corrosion resistance, making it suitable for both indoor and outdoor trunking installations. Its internal mounting keeps the outer profile of the trunking smooth and unobstructed.

Ideal use cases

• Extending straight runs of AZ-Kanal 45x100 trunking
• Creating 90-degree bends or junctions in cable routes
• Industrial and commercial cable management systems

Good to know

The connector is sold individually and is a system component of the AZ-Kanal range. It is made from steel according to DIN EN 10346 for galvanised steel.
