OBO BETTERMANN PVG-C1000S110 λύση συστήματος PV σε θήκη (5088556)

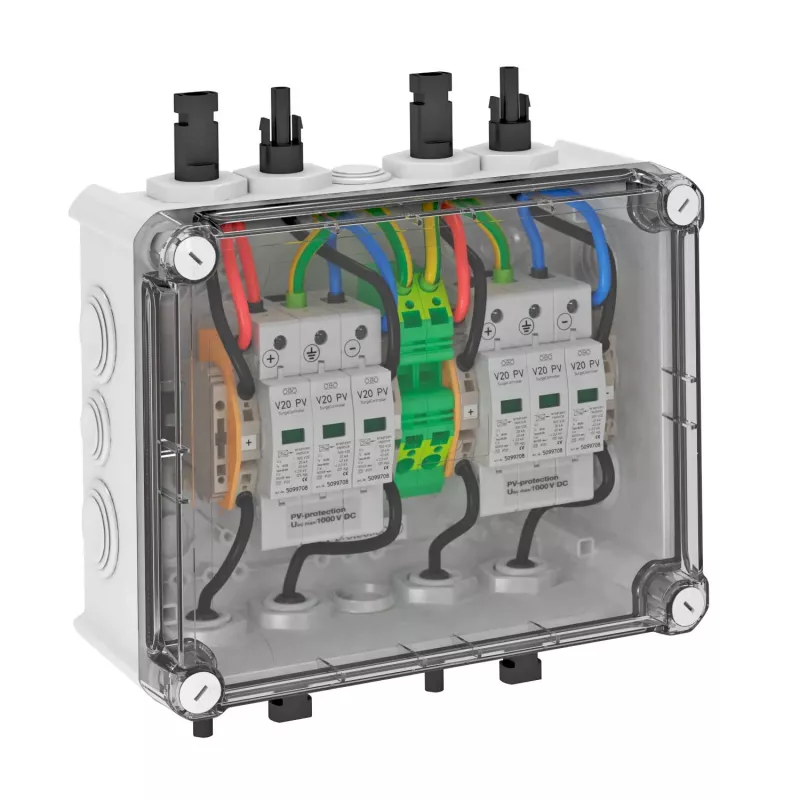

The OBO BETTERMANN PVG-C1000S110 is a pre-wired photovoltaic DC system solution housed in a robust polycarbonate enclosure, engineered for single-string PV installations up to 1000 V DC. Unlike generic combiner boxes, it integrates Type 2 surge protection directly into the enclosure, reducing wiring effort and ensuring consistent protection performance.

Highlights

• Integrated Type 2 surge protection with 40 kA max discharge current
• Supports one DC input and one DC output string
• Pre-wired internal connections for fast installation
• IP65-rated polycarbonate enclosure for outdoor use
• Wall-mounting design with included cable glands

In daily use

Designed for PV systems with a single string, this unit handles short-circuit currents up to 15 A per string and provides a low voltage protection level of under 4.0 kV. The screw terminals accept standard PV cable sizes, and the enclosure withstands temperatures from -25 °C to +60 °C, making it suitable for most climates.

Full specifications

• Max system voltage: 1000 V DC
• Number of DC inputs: 1
• Number of DC outputs: 1
• Max short-circuit current per string: 15 A
• SPD type: Type 2
• Nominal discharge current: 20 kA (8/20 µs)
• Max discharge current: 40 kA (8/20 µs)
• Voltage protection level: < 4.0 kV
• Short-circuit withstand capability: 1000 A DC
• Enclosure material: Polycarbonate
• IP rating: IP65
• Operating temperature: -25 °C to +60 °C
• Mounting: Wall mounting
• Cable entry: Cable glands included
• Standards: IEC 61439-2, IEC 61643-31
• Internal wiring: Pre-wired
• Terminals: Screw terminals

Final note

This product is identified by model PVG-C1000S110 and EAN 4012196816088.
