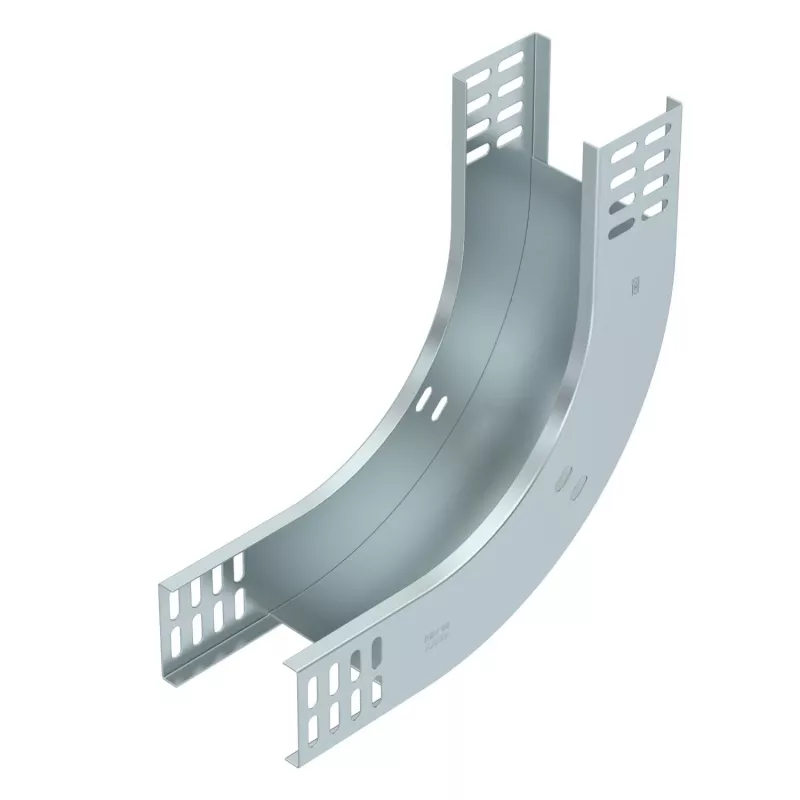

OBO Bettermann Κατακόρυφη καμπύλη RBV 610 S FS 90° ανερχόμενη 60x100 7007005

Electrical installers and panel builders use this OBO Bettermann vertical bend to route cable trays upward in industrial and commercial installations. The RBV 610 S FS changes the direction of a 60 mm high, 100 mm wide cable tray by 90 degrees, allowing cables to transition vertically without excessive bending.

Key specifications

• Accessory type: Vertical bend
• Bend angle: 90°
• Bend direction: Rising (upward)
• Compatible cable tray height: 60 mm
• Compatible cable tray width: 100 mm
• Inner bend radius: 100 mm
• Material: Steel
• Surface treatment: Hot-dip galvanized (DIN EN ISO 1461)
• Corrosion protection class: C3 (ISO 12944-2)
• Overall leg dimension: 160 mm
• Colour: Silver / Metallic

Why choose it

The hot-dip galvanized finish provides reliable corrosion protection for indoor and sheltered outdoor environments. The bend is designed for seamless integration with OBO Bettermann cable tray systems, ensuring a consistent installation.

Ideal use cases

• Routing cable trays vertically in electrical rooms
• Industrial machinery cable management
• Commercial building power distribution

Good to know

Mounting requires connectors, which are not included. The product complies with DIN EN 61537 for cable tray systems.
