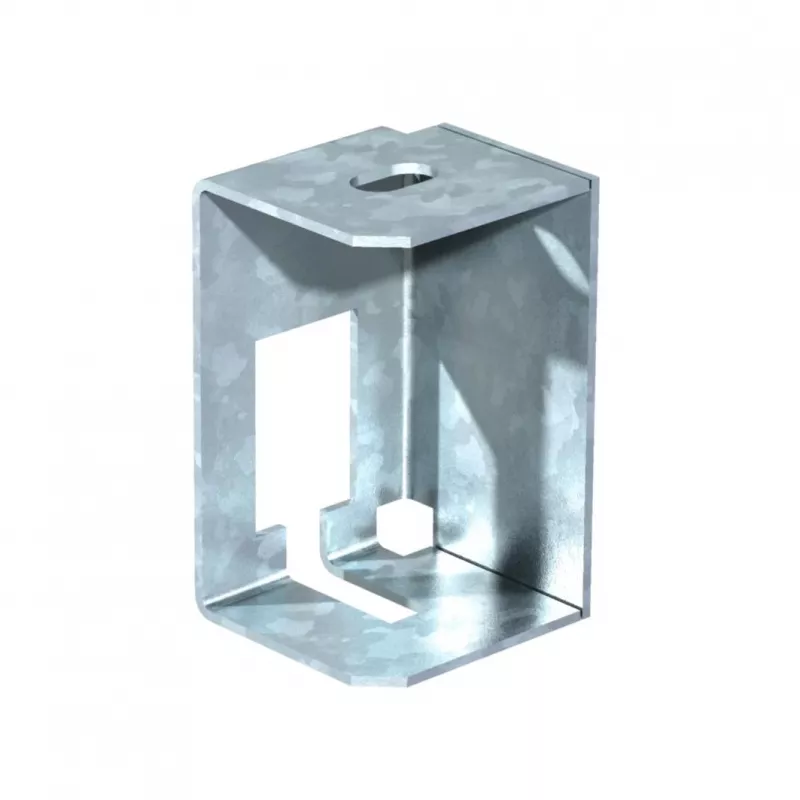

OBO Bettermann BSB κονσόλα πυροπροστασίας 105x50x54 mm (6418198)

The OBO Bettermann BSB fire protection bracket provides a reliable solution for maintaining the functional integrity of electrical installations during a fire. Unlike standard cable supports, this bracket is engineered specifically for fire-rated routing, ensuring that cables and conduits remain securely in place when it matters most.

Highlights

• Maintains functional integrity of electrical installations in fire conditions
• Electro-galvanized steel construction for corrosion protection
• Compact dimensions: 105 mm length, 50 mm width, 54 mm height
• Suitable for single cables, cable bundles, and electrical conduits
• Wall and ceiling mounting for flexible installation

In daily use

Install the BSB bracket on walls or ceilings to support fire-rated cable routes. Its steel body and electro-galvanized finish provide long-term durability in indoor environments. The bracket integrates with OBO Bettermann fire protection systems, contributing to fire resistance classes E30 to E90 depending on the overall system configuration.

Full specifications

• Product type: Fire Protection Bracket
• Series: BSB
• Material: Steel
• Surface treatment: Electro-galvanized
• Overall length: 105 mm
• Overall width: 50 mm
• Overall height: 54 mm
• Weight: 0.12 kg
• Application: Maintaining functional integrity of electrical installations in case of fire
• Fire resistance class: E30 to E90 (system dependent)
• Standard compliance: DIN 4102-12
• Mounting type: Wall and ceiling mounting
• Suitable for: Single cables, cable bundles, electrical conduits
• Corrosion protection: Yes
• Colour: Metallic
• Installation environment: Indoor
• System compatibility: OBO Bettermann Fire Protection Systems

Final note

For projects requiring certified fire protection routing, the BSB bracket offers a compact and robust component within the OBO Bettermann system.
