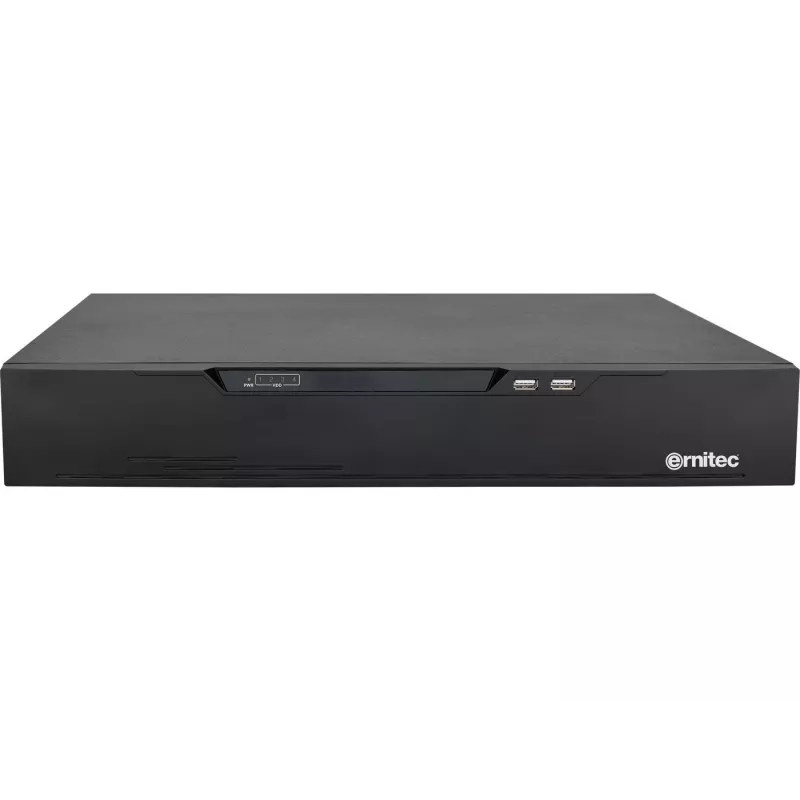

NVR Ernitec Cygnus 32 κανάλια 8MP 16TB SATA 1.5U

Video Input:
IP Camera Input - 32 Channel
Incoming Bandwidth - 320Mbps
Outgoing Bandwidth - 320Mbps
Video Output:
HDMI 1 Output - 3840×2160, 1920×1080, 1280×1024, 1024×768
HDMI 2 Output - 1920×1080, 1280×1024, 1024×768 VGA
Output - 1920×1080, 1280×1024, 1024×768
Different Source Output - Support
Decoding Capacity - 1ch 12MP, 4ch 4MP, 9ch 1080P, 16ch D1, 32ch D1
Dual Stream
Support - Multi-screen Display
1st Screen: 1/4/8/9/16/32/36
2nd Screen: 1/4/8/9/16 AI Recognition Face Comparison
Real-time captured and display faces comparison results (registrant (name and ID), stranger, channel, similarity)
Multi-objective
Real-time captured and display vehicle, human body, non-motor vehicle, license plates image, and faces comparison results (registrant, stranger, channel, similarity)
Smart Search
Time, Properties, Pictures, License plate
Trigger Events:
Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc.
Perimeter Protection
Intrusion support alarm triggering by specified target types (human and vehicle)
Recoding:
Resolution - 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc.
Recording Mode - Manual, Schedule (Regular, Continuous), Event
Trigger Events - Motion Detection, Video Loss, Alarm in, IVS
Playback and Backup:
Sync Playback
16/9/4/1
Search Mode:
Time /Date, Alarm, Picture grid, Event
Backup Mode
USB Device, Network, eSATA
Network:
Network Function - HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE
Remote Users - 8 users
Smart Phone - iPhone, iPad, Android
Interoperability - ONVIF, SDK, CGI Network Interface - 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Disk Array - Array Type
RAID 5, RAID 6, RAID 10 HDD - 4 SATA Ports, up to 16TB capacity for each disk
eSATA - 1 eSATA Interface
Interface - Audio In/Out 1/1
Alarm In/Out - 16/4
USB Interface - Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0
RS485 Interface - Support
RS232 Interface - Support
General:
Power Supply - AC100 ~ 240V
Power Consumption - 15 W (without HDD)
Operating Conditions - -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Conditions - Less than 90% RH
Certifications - CE/FCC
Dimensions - 440 × 368.3 × 70 mm (17.32 × 14.5 × 2.76 inch) Net Weight - 4.65 kg (10.25 lb) without HDD

Ernitec Cygnus 32 channel NVR - 1.5U. Video input channels: 32 channels, Supported resolutions: 8MP. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Audio output: 3.5 mm, Networking standards: IEEE 802.1x. Rack capacity: 1.5U, Product colour: Black. AC input voltage: 110/220 V

How to use

Install the NVR in a rack space of 1.5U and connect up to 32 IP cameras via the network. Fit up to four SATA hard drives and configure RAID according to your redundancy needs. Access the web interface or client software to add cameras, set recording schedules (manual, continuous, event) and enable AI functions such as face comparison and intrusion detection. Use HDMI or VGA outputs for live monitoring and configure user accounts and network settings for remote access from smartphones or client PCs.

Recommendations

For reliable continuous recording, use enterprise-class SATA drives and configure RAID 5/6/10 depending on your fault tolerance requirements. Ensure firmware is kept up to date via cloud upgrades and limit remote user accounts to essential personnel; enable HTTPS and network filtering for improved security.
