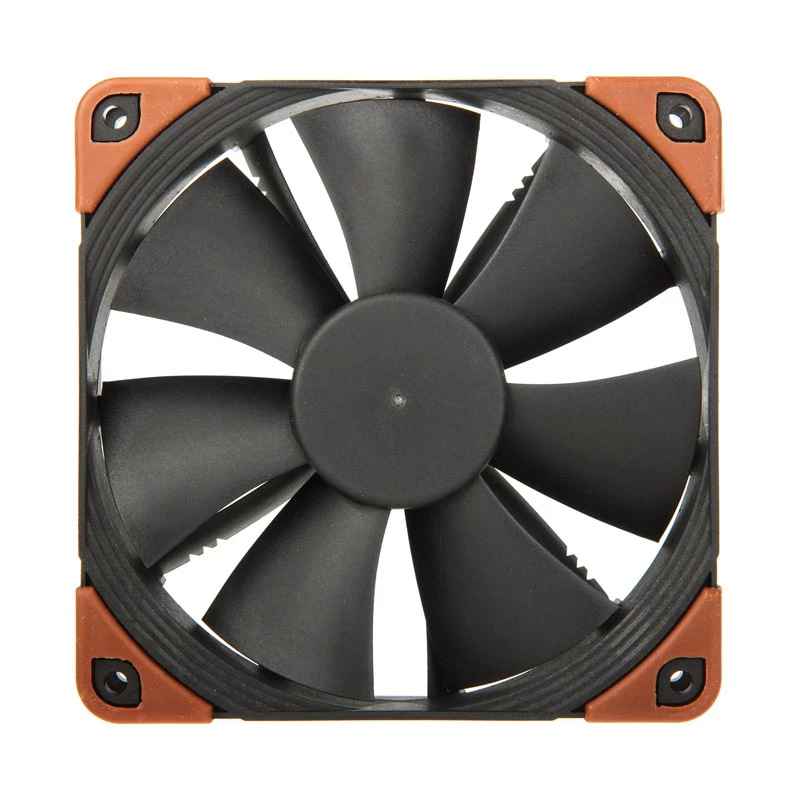

Noctua NF-F12 industrialPPC-2000

The Noctua NF-F12 industrialPPC-2000 is a rugged 120 mm cooling fan engineered for industrial heavy-duty applications that require enhanced cooling performance and strong ingress protection. It combines the NF-F12 aerodynamic blade design with a three-phase motor and fibre-glass reinforced polyamide construction to deliver high airflow and static pressure while remaining suitable for operation in dusty or wet environments. The fan runs at up to 2000 RPM, operates at 12 V, and measures 120 x 120 x 25 mm.

Advantages

The industrialPPC model offers superior airflow (121.8 m³/h) and increased pressure capacity (up to 3.94 mmH2O) compared with standard high-speed fans, while keeping noise and power consumption at moderate levels for its performance class. Water- and dust-resistant construction together with Noctua’s SSO2 bearing technology provide a high MTBF (>150,000 hours) and long-term reliability backed by a six-year manufacturer warranty.

Suitable for

• Industrial enclosures and control cabinets
• Cooling of power electronics and drives
• Server racks and telecommunications equipment in harsh environments
• Any application requiring 120 mm high-speed, high-pressure airflow with ingress protection

Key specifications

• Model: NF-F12 industrialPPC-2000
• Fan diameter: 120 mm (120 x 120 x 25 mm)
• Max speed: 2000 RPM
• Airflow: 121.8 m³/h
• Max air pressure: 3.94 mmH2O
• Rated voltage: 12 V
• Construction: Fibre-glass reinforced polyamide
• Bearing: SSO2
• MTBF: >150,000 hours
• Manufacturer warranty: 6 years

How to use

Mount the fan in a standard 120 mm cutout using appropriate screws or vibration-damping mounts, ensuring correct airflow direction for your cooling setup. Connect to a stable 12 V supply compatible with the device’s power and control requirements. Observe correct polarity when attaching the power connector and secure cables to prevent strain. If used in environments with liquid exposure, verify that external seals and enclosure ratings meet system-level ingress protection requirements.

Recommendations

For optimal lifespan and performance, keep the fan and surrounding area free of accumulated debris, verify the fan’s operating voltage and current in your system, and replace the unit if signs of mechanical wear or noise increase. Use the NF-F12 industrialPPC-2000 where sustained high airflow and pressure are required under challenging environmental conditions.
