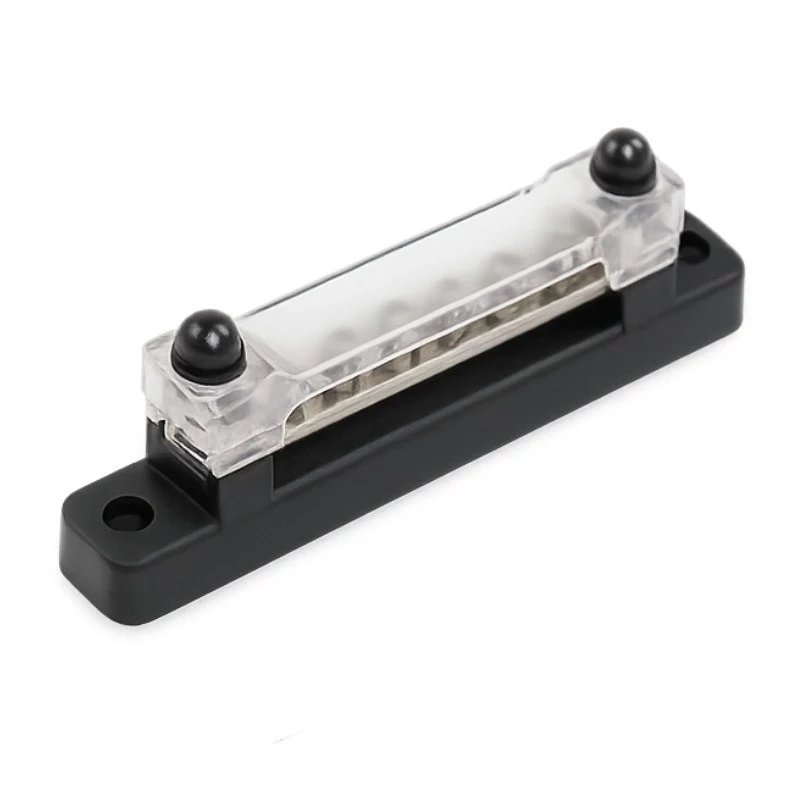

Busbar Solvian 150A 12P M4 με συνδέσεις

Managing high-current power distribution in control cabinets and electrical enclosures often becomes a tangle of cables, lugs, and potential hot spots. The Busbar Solvian 150A 12P M4 with Connectors replaces that clutter with a single, compact power distribution rail. It gives you twelve clearly defined connection points on a robust busbar rated for 150 A, so you can feed multiple loads from one source without custom busbar fabrication or risky daisy-chaining.

Who is it for

This busbar is built for panel builders, industrial electricians, and machine integrators who need a reliable, space-saving way to distribute DC or AC power inside enclosures. It suits automation systems, solar combiner boxes, battery banks, marine electrical panels, and any application where multiple circuits must branch from a common high-current feed. If you regularly mount DIN rail components and want a tidy, serviceable power node, this 12-position bar is a direct fit.

Main features

• 150 A continuous current rating for demanding branch circuits.
• 12 connection poles with M4 threaded studs or screws for secure ring-terminal or lug termination.
• Supplied with matching connectors, so you can wire immediately without sourcing separate hardware.
• Compact, low-profile design that saves rail space compared to individual terminal blocks.
• Solid copper or tinned copper conductor for low resistance and excellent conductivity.
• Insulated base or cover reduces risk of accidental shorts when mounted on metal panels.
• Pre-drilled mounting holes for easy installation on DIN rail adapters or backplates.

Specifications

• Brand: ELEKTROBOCK
• Model: EL-BR1503
• MPN: EL-BR1503
• EAN: 5906471108052
• Rated current: 150 A
• Number of poles: 12
• Terminal type: M4 threaded connection
• Included accessories: connectors
• Product category: Busbar / power distribution block

Tips

Before wiring, confirm that your total continuous load does not exceed 150 A and that each branch conductor is correctly sized for its own overcurrent protection. Use ring terminals that match the M4 studs and torque them to the manufacturer’s recommendation. For best long-term performance in humid or corrosive environments, apply a light coating of anti-oxidant compound to the contact surfaces. If the busbar will be mounted in a high-vibration area, consider adding a drop of thread-locking compound to the mounting screws.
