Niedax γωνία ανάρτησης RTU60.100-20, πυργαλβανισμένος χάλυβας, 100 mm προεξοχή

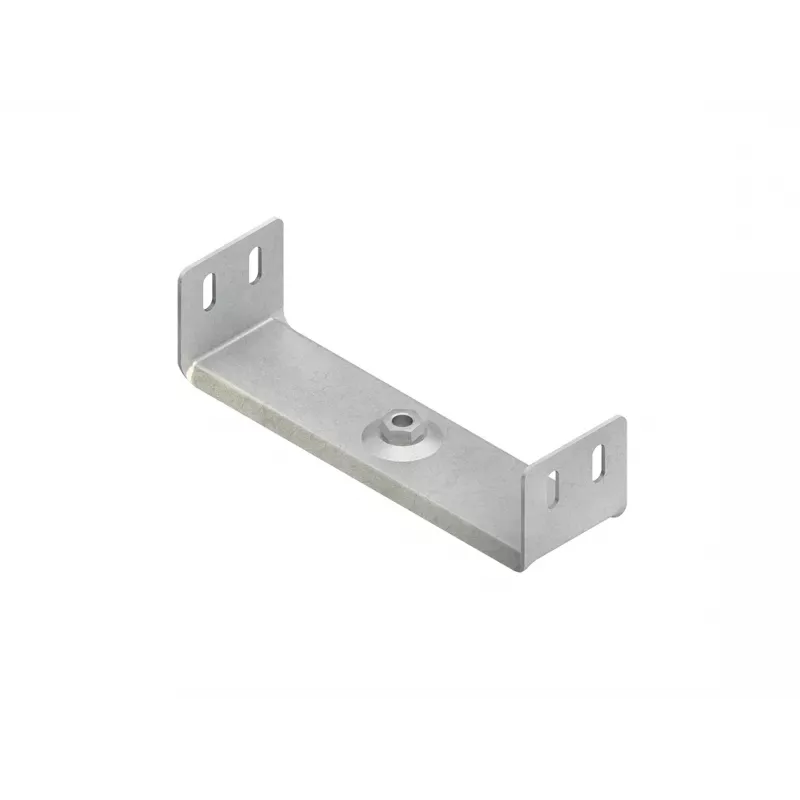

The Niedax RTU60.100-20 is a robust suspension bracket designed for secure mounting of cable trays and mesh trays in industrial, commercial, and infrastructure applications. Manufactured from high-quality steel with hot-dip galvanized surface treatment (FT), this bracket offers exceptional corrosion resistance, making it suitable for outdoor and harsh environments.

Advantages

Hot-dip galvanized finish ensures long-lasting protection against rust and corrosion. The bracket supports a maximum static load of 0.5 kN (approx. 50 kg) and features two mounting holes with 11 mm diameter for easy ceiling or wall installation. Its compact design with 60 mm internal width and 100 mm projection provides reliable support for cable management systems.

Suitable for

• Ceiling and wall mounting of Niedax cable trays and mesh trays
• Industrial, commercial, and infrastructure cable support systems
• Outdoor installations requiring high corrosion protection

Key specifications

• Product Type: Suspension Bracket
• Material: Steel
• Surface Treatment: Hot-dip galvanized (FT)
• Projection Length: 100 mm
• Bracket Width (Internal): 60 mm
• Overall Height: 60 mm
• Mounting Type: Ceiling / Wall Mount
• Mounting Hole Diameter: 11 mm
• Number of Mounting Holes: 2
• Max. Static Load: 0.5 kN (approx. 50 kg)
• Corrosion Protection: High
• Compatibility: Niedax cable trays and mesh trays
• Standard (Material): DIN EN 10346
• Standard (Galvanizing): DIN EN ISO 1461
• Colour: Metallic Grey

Recommendations

For optimal performance, ensure proper installation using suitable fasteners (not included). Verify load requirements and compatibility with your specific cable tray system before installation.
