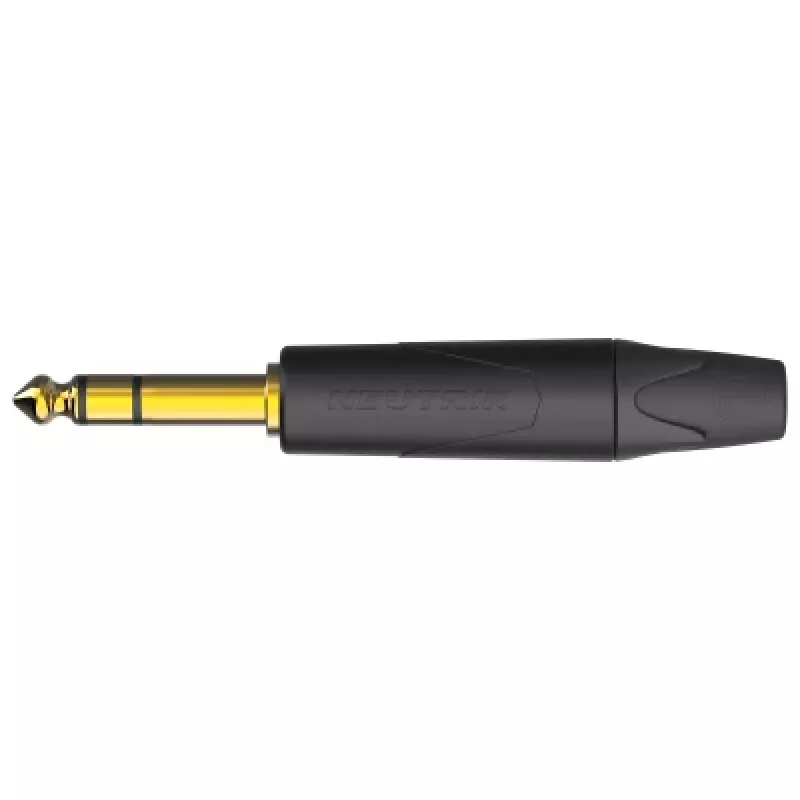

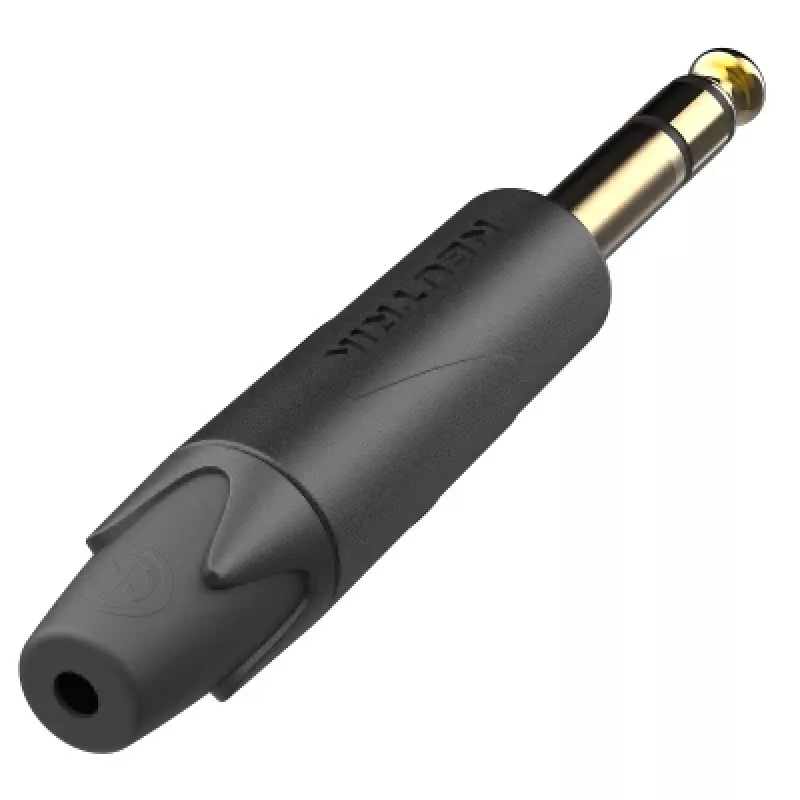

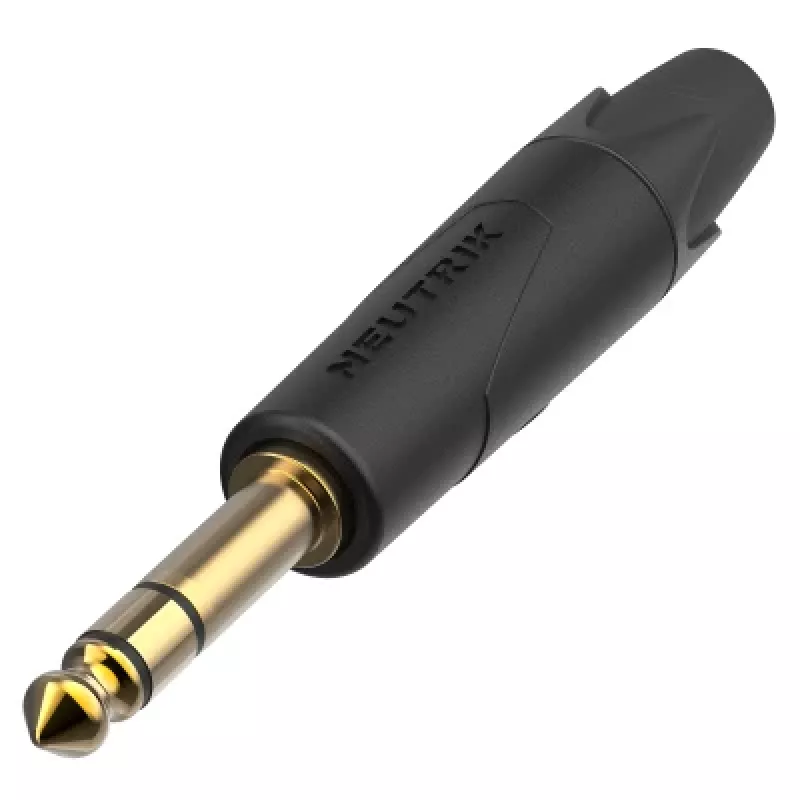

Neutrik NP3XX-AU-0 Βύσμα jack TRS 1/4 ίντσας με επιχρυσωμένες επαφές

Audio engineers and musicians rely on the Neutrik NP3XX-AU-0 when assembling or repairing balanced patch cables for studio patchbays, mixing consoles, and stage equipment. This 3-pole 1/4" phone plug features gold-plated contacts for reliable signal integrity in professional audio environments.

Key specifications

• Connector type: 1/4" (6.35 mm) phone plug
• Number of poles: 3 (TRS - Tip-Ring-Sleeve)
• Gender: Male
• Contact plating: Gold
• Shell material: Nickel-plated brass
• Cable O.D. range: 4.5 - 10 mm
• Termination method: Solder
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 GΩ
• Rated current per contact: 15 A
• Rated voltage: < 50 V
• Mating cycles: > 1000
• Strain relief: Chuck type
• Temperature range: -30 °C to +80 °C
• Standard compliance: IEC 60603-11 / EIA RS-453

Why choose it

The gold-plated contacts ensure low contact resistance and long-term reliability, while the chuck-type strain relief provides secure cable retention for demanding applications.

Ideal use cases

• Building custom balanced TRS cables
• Repairing studio patch cables
• Connecting professional audio equipment

Good to know

The NP3XX-AU-0 is designed for cable diameters from 4.5 to 10 mm and is terminated by soldering. It complies with IEC 60603-11 and EIA RS-453 standards.
