Neomounts PLASMA-C100 μαύρη οροφής οθόνης/τηλεόρασης 37-75 inch - Υ 67-107 cm

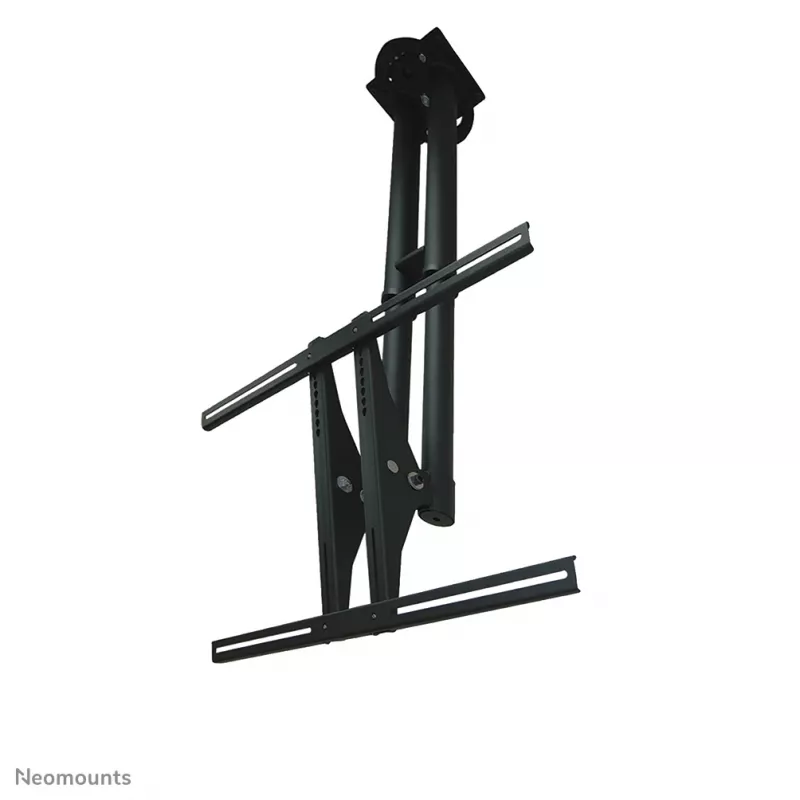

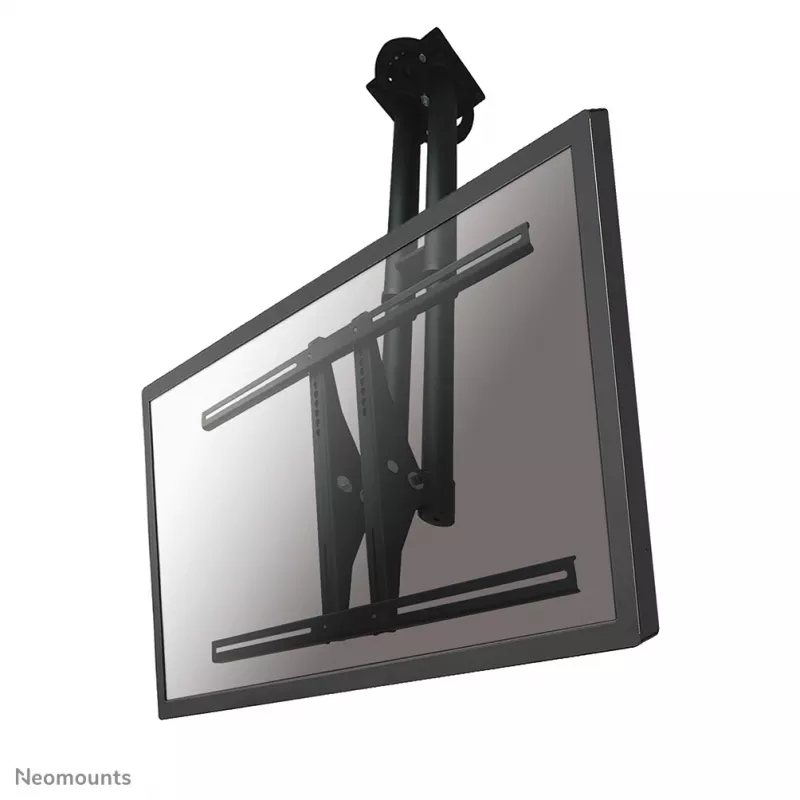

The Neomounts PLASMA-C100BLACK ceiling mount is a tilt- and swivel mount designed for flat screens up to 75" (191 cm). It provides a space-saving alternative when wall mounting or floor placement is not possible, supporting a single display with a maximum load of 50 kg and compatible with VESA patterns from 200 x 200 mm up to 800 x 450 mm. Height is adjustable between 670 and 1070 mm and cable routing is integrated into the column to maintain a tidy installation.

Advantages

The mounting system offers a tilt range up to 25° and a swivel range up to 60°, enabling flexible viewing angles. The support column is height adjustable (670–1070 mm) and extension poles are available if a greater height is required. The built-in cable management conceals cables from ceiling to screen. The mount accommodates one display and includes all installation hardware; Neomounts VESA adapter plates can be used to cover different hole patterns.

Suitable for

• Commercial and retail spaces where wall mounting is impractical
• Meeting rooms and classrooms requiring flexible screen positioning
• Home installations with limited wall space or high ceilings

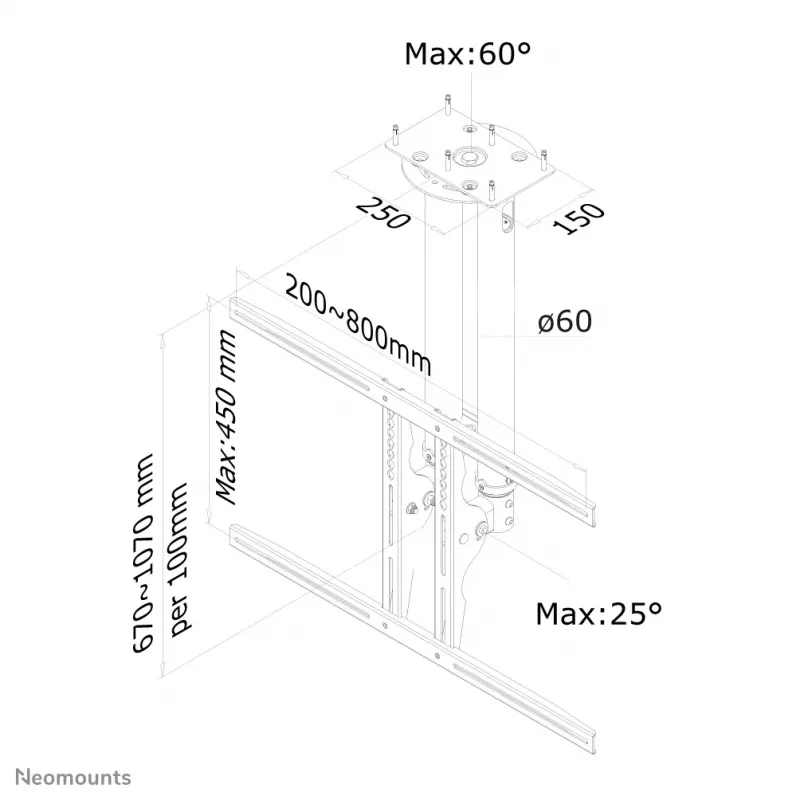

Key specifications

• Model: PLASMA-C100BLACK
• Maximum screen size: 75" (191 cm)
• Maximum weight capacity: 50 kg
• Height adjustment: 670–1070 mm
• Tilt: 0–25°
• Swivel: 60°
• VESA compatibility: 200 x 200 mm to 800 x 450 mm
• Colour: Black
• Displays supported: 1

How to use

Fix the ceiling plate to a suitable structural element according to local building regulations and the included instructions. Attach the VESA interface to the screen and hang the display on the mount, then secure according to the manual. Adjust the column height to the desired position within the 670–1070 mm range and set tilt and swivel to obtain the required viewing angle. Route the power and signal cables through the column to keep them concealed.

Recommendations

Ensure the ceiling structure can support the combined weight of the mount and display (up to 50 kg). Use appropriate anchors and follow the supplied installation guide. For non-standard VESA patterns use Neomounts adapter plates. If higher mounting is needed, install compatible extension poles and verify stability after installation.
