Multibrackets M βάση οροφής Pro MBC1U VESA 400

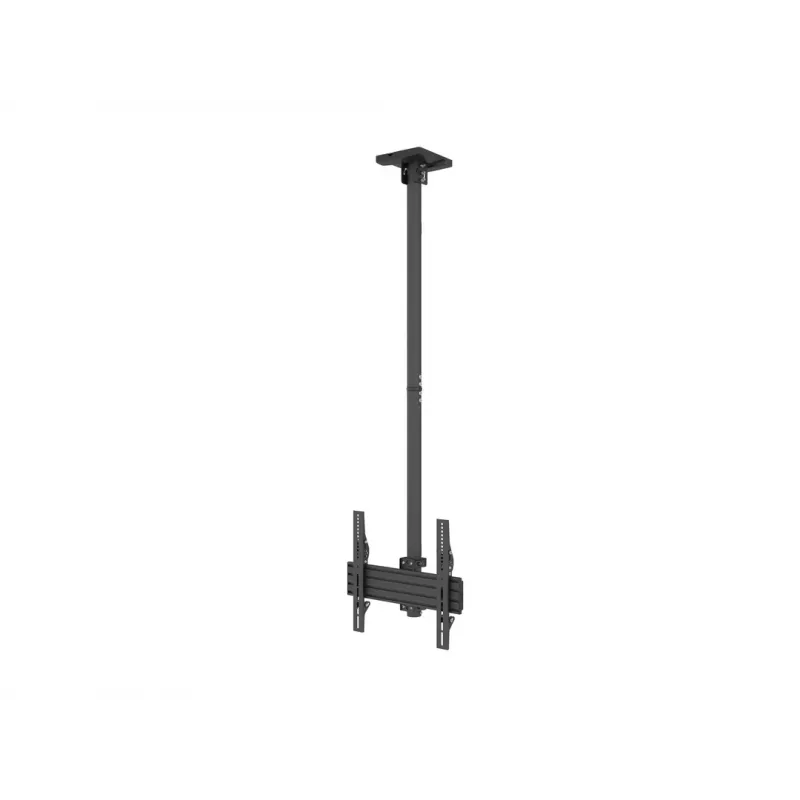

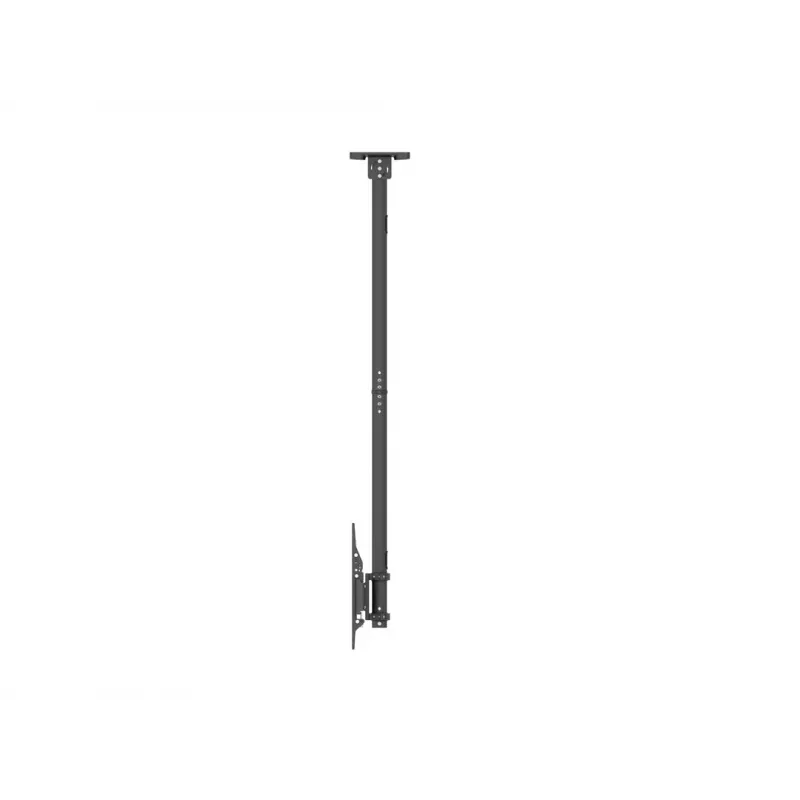

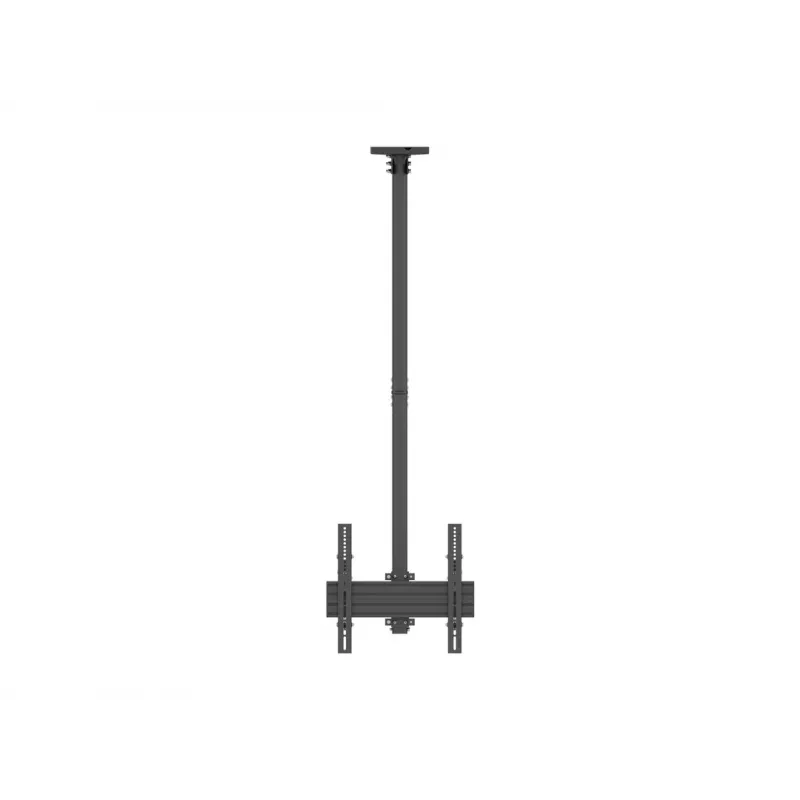

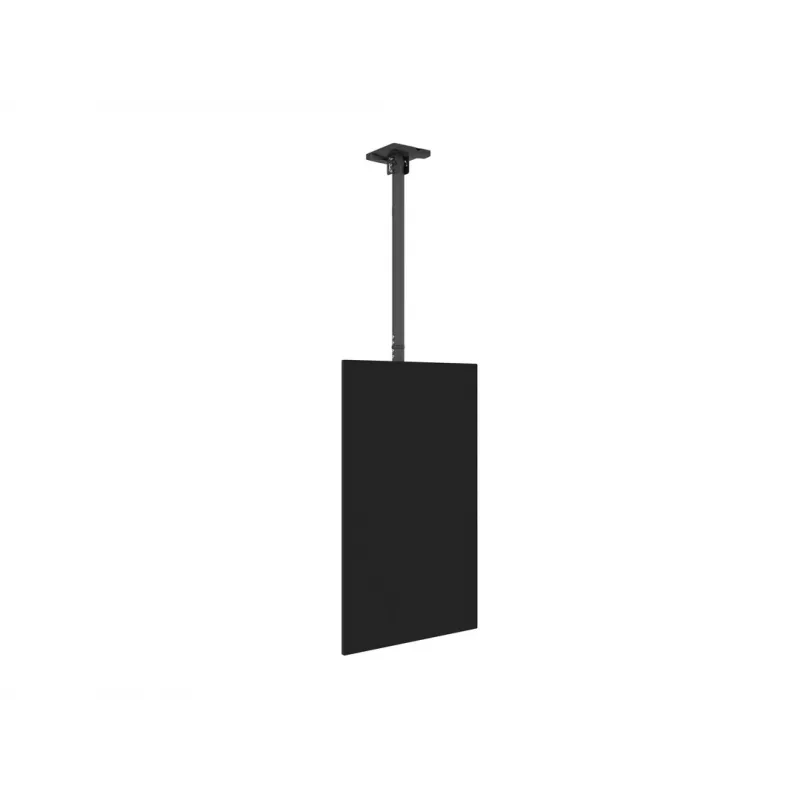

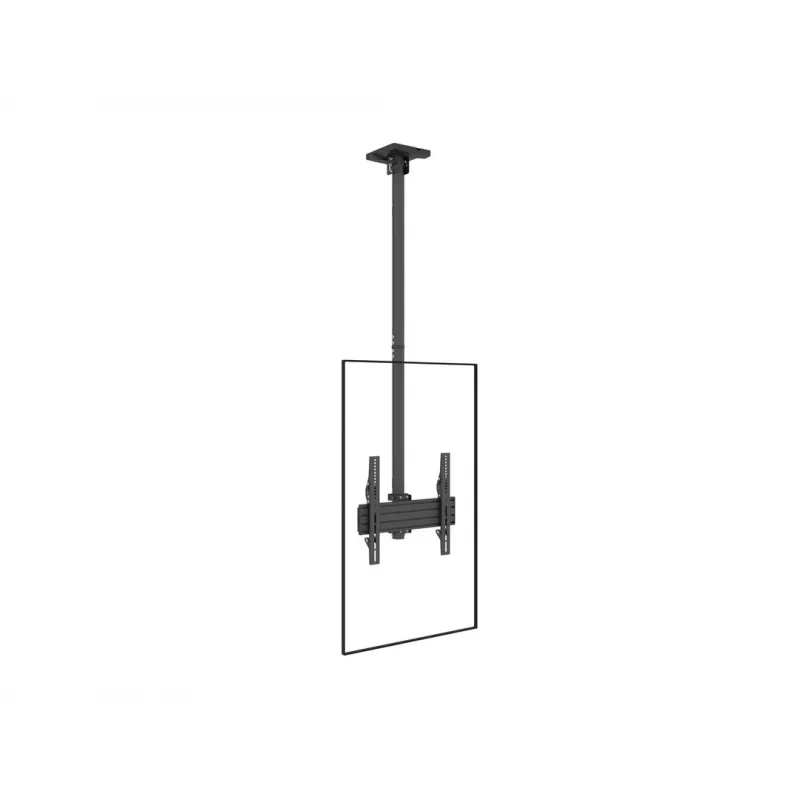

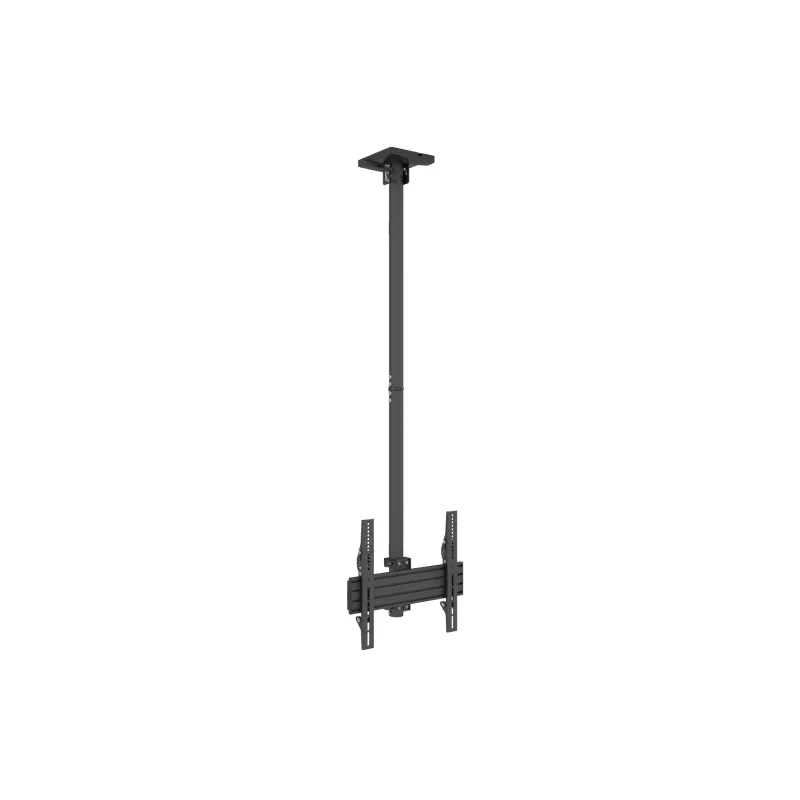

Ceiling Mount Multibrackets M Pro MBC1U VESA 400 is a single-display ceiling mount designed for professional installations. It supports screens from 32" to 65" with a maximum weight capacity of 35 kg and is compatible with VESA patterns from 100 x 100 mm up to 400 x 400 mm. The mount features a height adjustment range of 580–1550 mm, tilt from -6° to 15° and swivel up to 90°. Constructed on a modular aluminum rail with integrated cable management, it is intended for flexible, durable, and neat ceiling installations in a variety of public and commercial environments.

Advantages

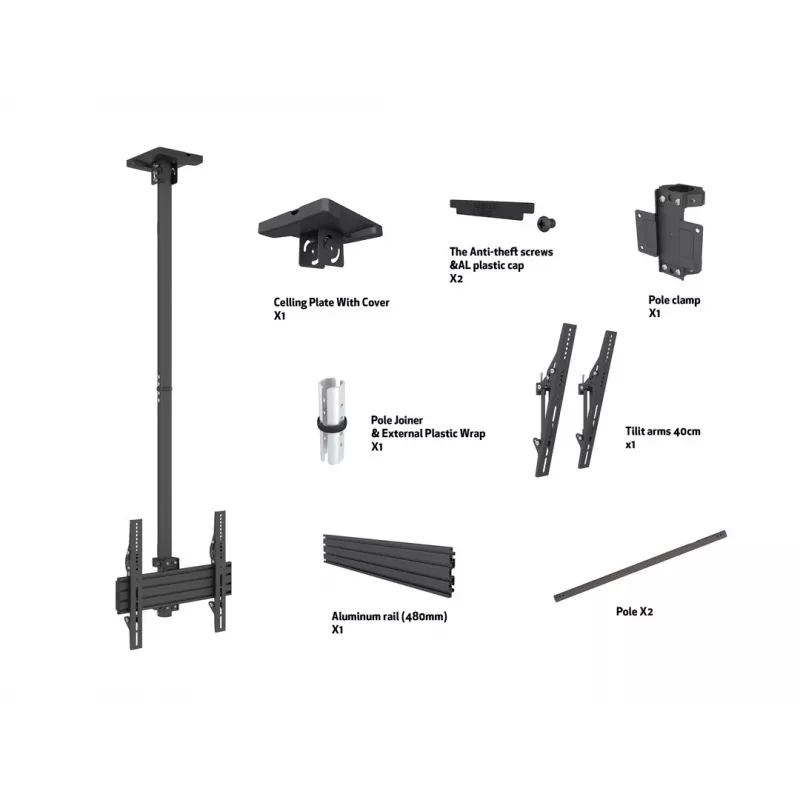

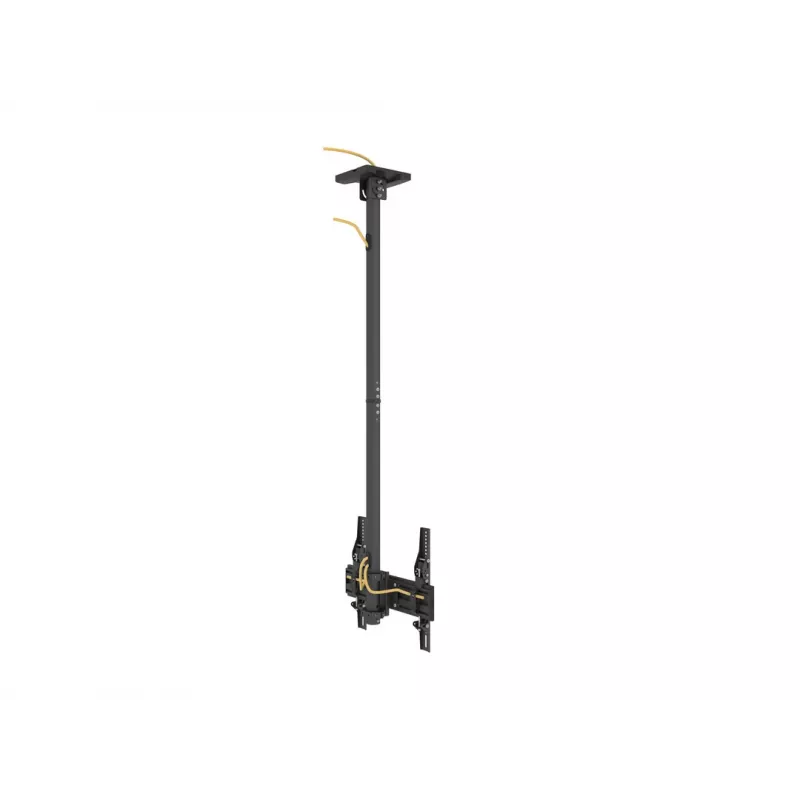

The Pro MBC1U VESA 400 offers a modular design that simplifies installation, maintenance and later reconfiguration. Built-in cable management runs through the entire solution to keep cables concealed and speed up setup. Its aluminum construction provides a stable but lightweight solution, while the adjustable height, tilt and swivel angles deliver flexible positioning for different viewing requirements. The product includes necessary hardware for a basic installation and is finished in black to fit common AV environments.

Suitable for

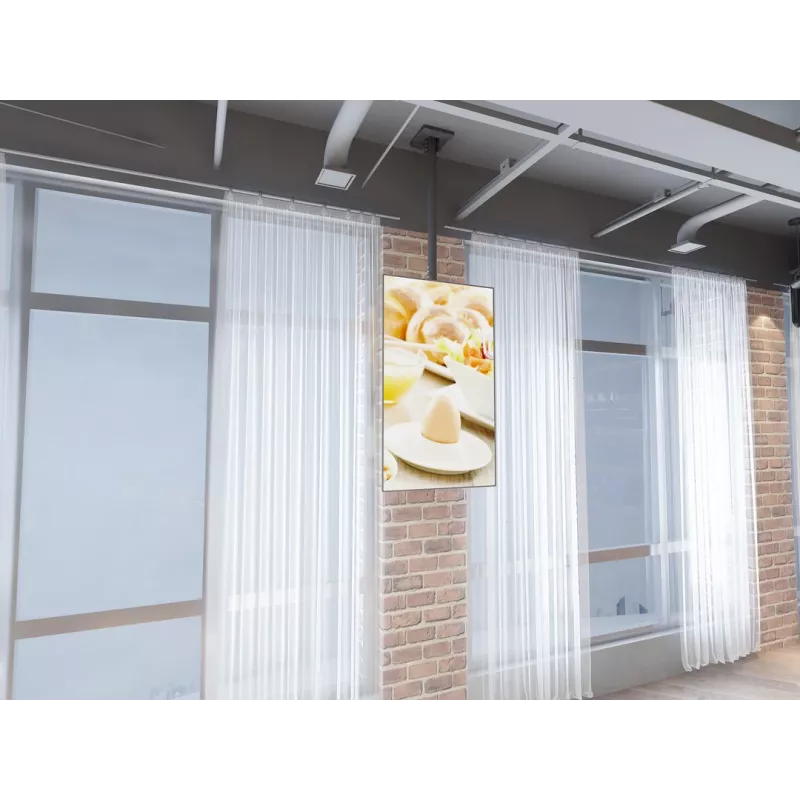

• Digital signage and large-screen displays in public spaces
• Retail stores, airports, hotels and corporate lobbies
• Conference rooms and auditoriums requiring ceiling-mounted screens
• Temporary installations where later reconfiguration may be needed

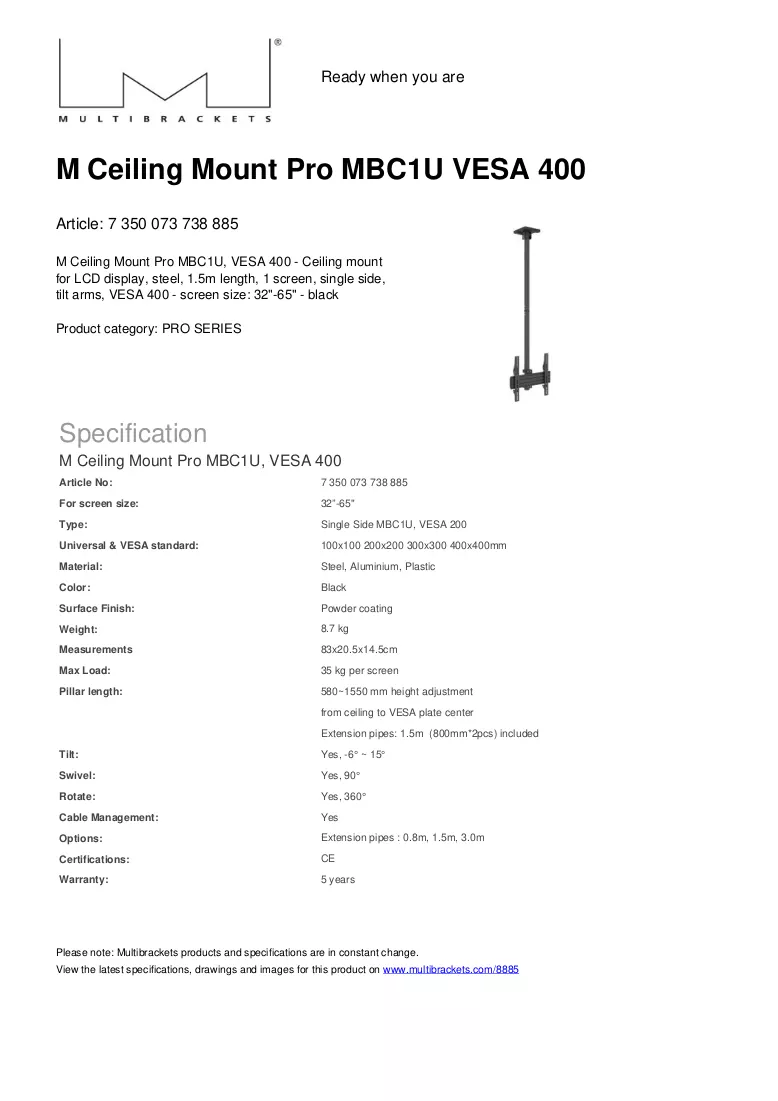

Key specifications

• Maximum VESA mount: 400 x 400 mm
• Maximum screen size: 65" (supports 32"–65")
• Number of displays supported: 1
• Maximum weight capacity: 35 kg

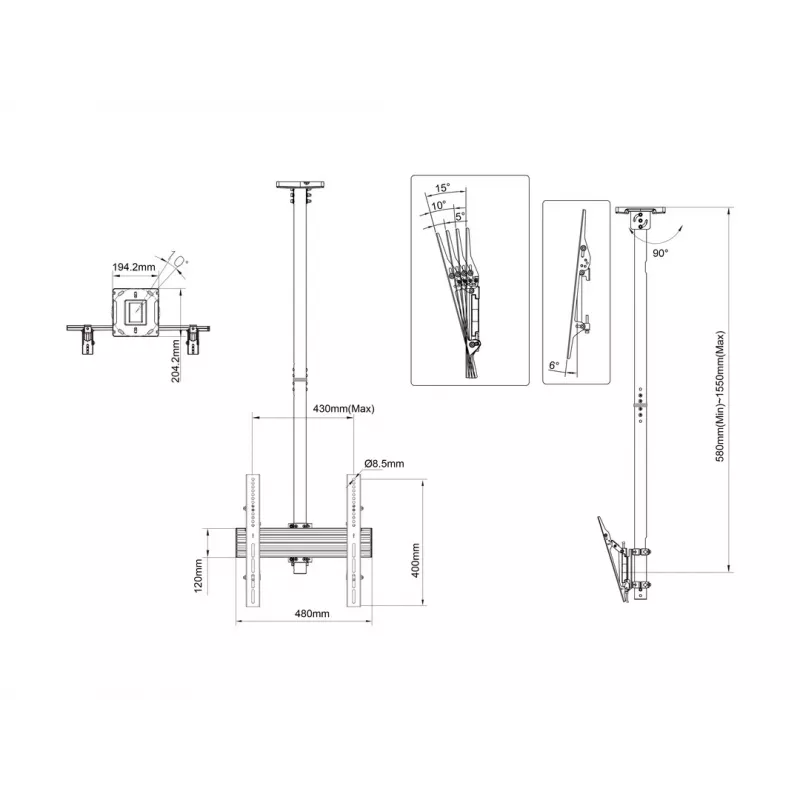

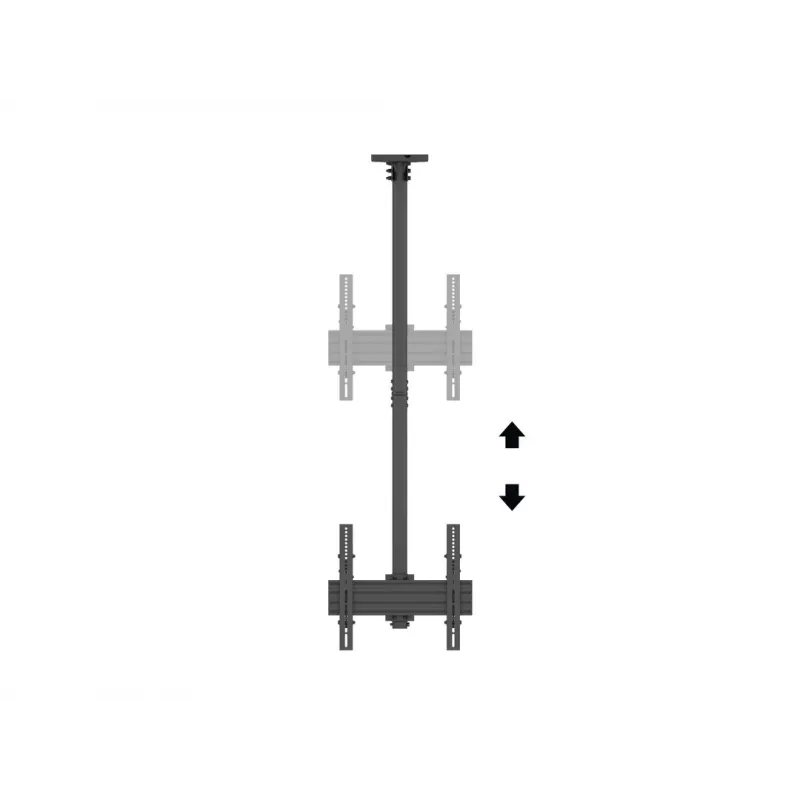

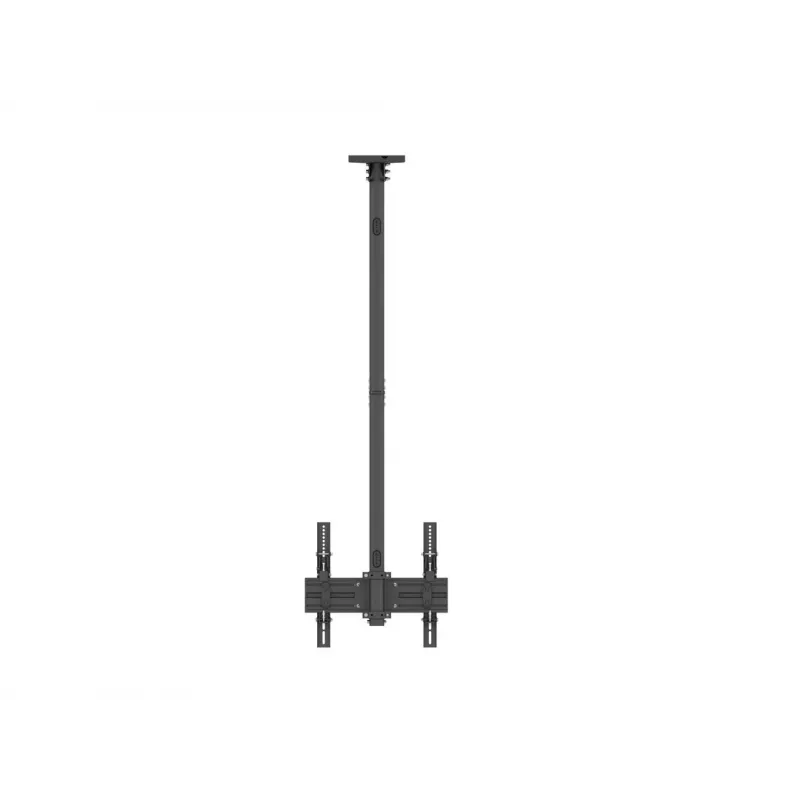

• Height adjustment: 580–1550 mm

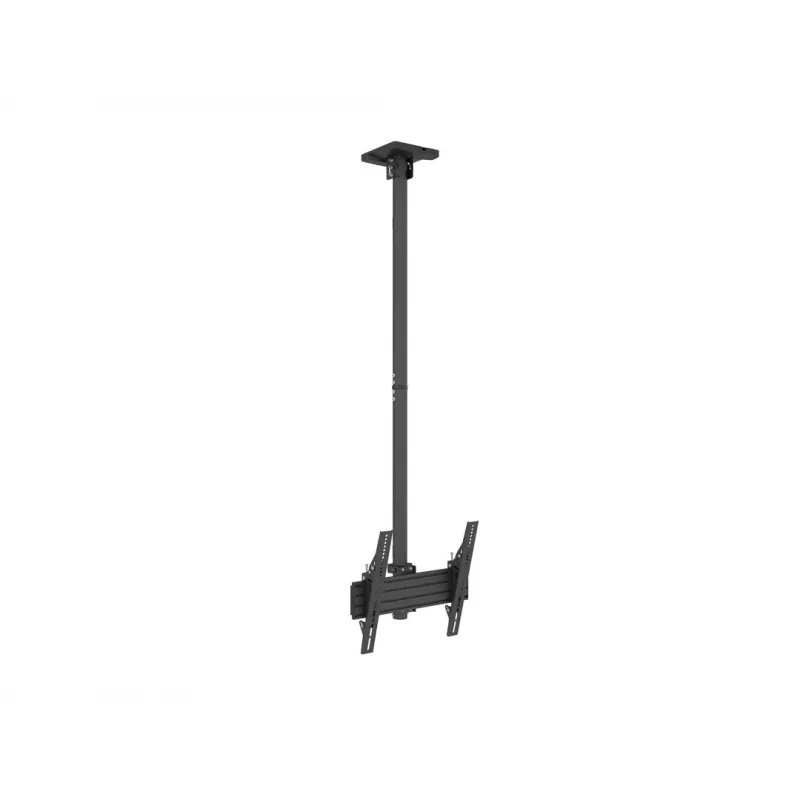

• Tilt range: -6° to 15°

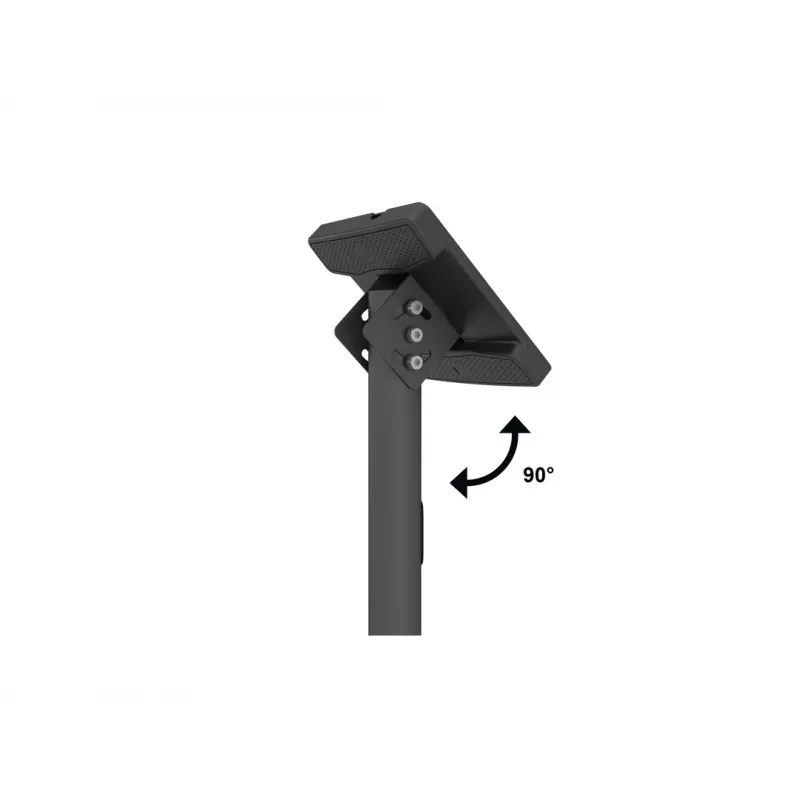

• Swivel: 90°
• Weight: 8.7 kg
• Colour: Black

How to use

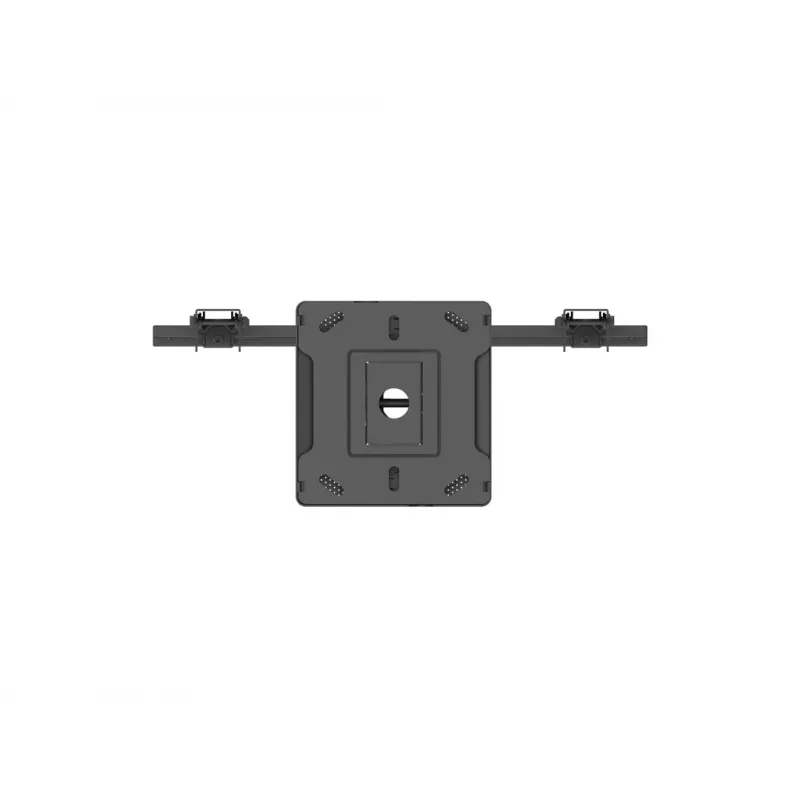

Mount the ceiling bracket to a suitable structural surface following local building and safety codes, then attach the modular aluminum rail and extend or shorten the pipe to the required height within the 580–1550 mm range. Fix the VESA-compatible display bracket to the display using the appropriate VESA holes, lift the display onto the mount and secure it with the provided hardware. Route all cables through the integrated cable management channel and adjust tilt and swivel to the desired viewing angle.

Recommendations

Verify that the ceiling structure and fixings can support the combined weight of the mount and display (maximum 35 kg). Use appropriate anchors and fasteners for the ceiling material, and perform adjustments and maintenance with two persons present for safety. Follow the display manufacturer’s mounting instructions and local installation standards.
