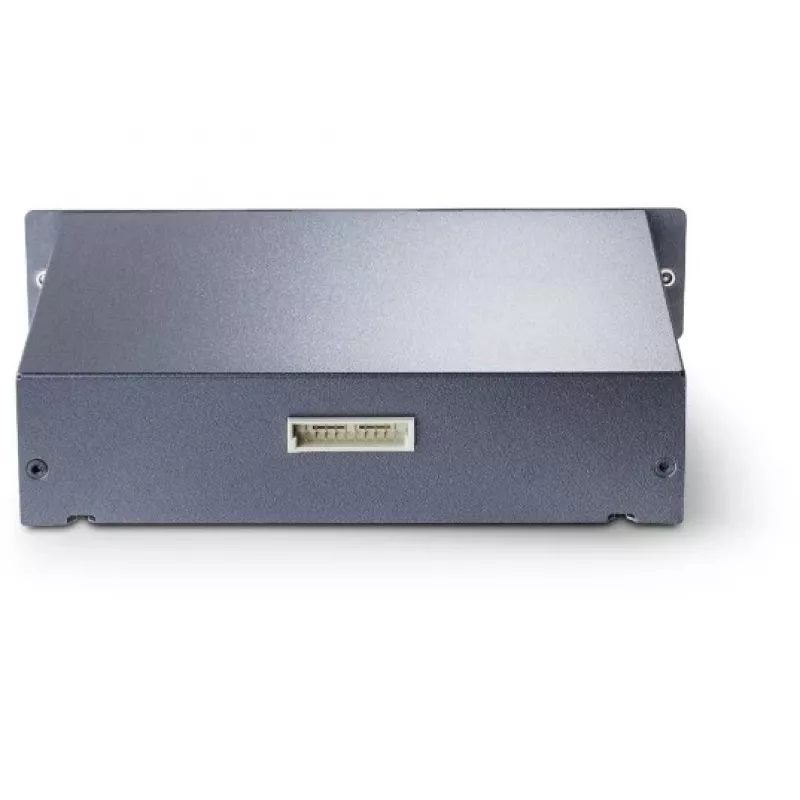

Μονάδα τροφοδοσίας TP-Link TL-MCRP100(UN) V2.0 75W

The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input, DC-output unit designed to provide stable 12VDC power for compatible rack devices. It accepts 100–240V AC at 50/60Hz and is compatible with the TL-MC1400 14-slot rackmount chassis. The module includes built-in protections against over-voltage, short circuit and over-current to help protect connected equipment.

Advantages

The TL-MCRP100 offers redundant power capability in a compact black enclosure with status LEDs for easy monitoring. It delivers reliable DC output for rack systems, supports universal AC input voltages, and integrates protection features to reduce risk to connected devices.

Suitable for

• Redundant power supply for TL-MC1400 14-slot rackmount chassis
• Small server rooms and network racks requiring 12V DC power
• Environments needing hot-swappable or replaceable PSU modules

Key specifications

• Total power: 75 W
• Input voltage: 100–240 V AC, 50/60 Hz
• Output: 12 V DC
• Protections: over-voltage, short circuit, over-current
• Colour: Black
• Manufacturer part number (MPN): TL-MCRP100(UN) V2.0
• EAN: 6935364099848
• Dimensions (approx.): 210 mm x 130 mm x 70 mm

How to use

Install the TL-MCRP100 into a compatible slot in the TL-MC1400 chassis following the chassis manufacturer’s instructions. Connect the AC mains input (100–240V AC) to the module and verify the green LED indicators show normal power status. Ensure the chassis is powered down or follow hot-swap procedures if supported before replacing the module. After installation, confirm connected devices receive 12V DC and monitor for any fault indications.

Recommendations

Use the TL-MCRP100 in a well-ventilated rack environment and ensure AC wiring complies with local electrical codes. For redundant configurations, install multiple compatible modules per the chassis manual and replace faulty modules promptly to maintain continuous power. Do not expose the unit to moisture or extreme temperatures.
