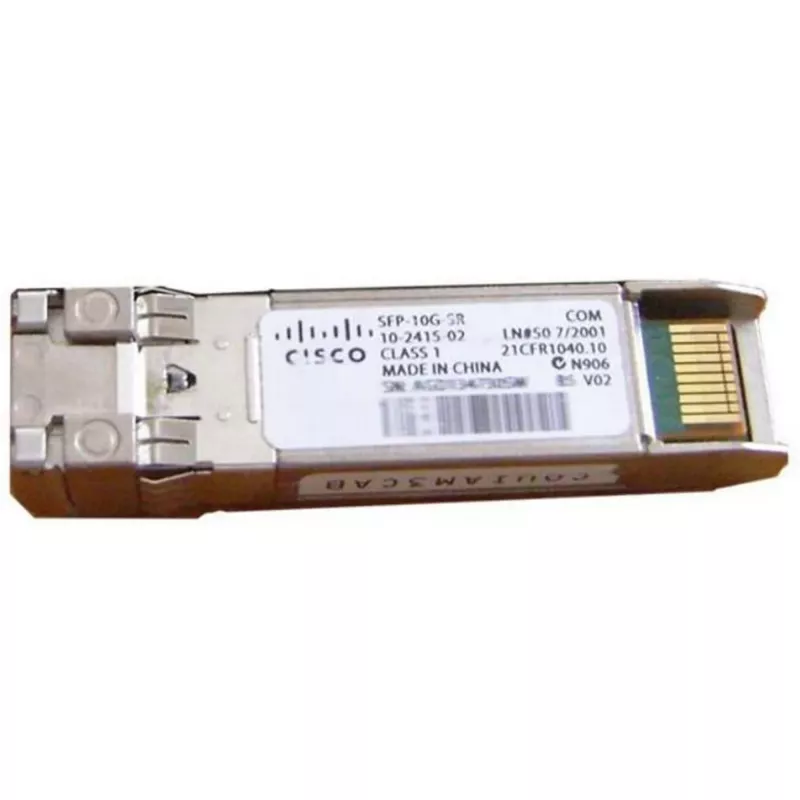

Μονάδα SFP Cisco 10GBASE-SR S-Class SFP-10G-SR-S=

The Cisco 10GBASE-SR S-Class SFP-10G-SR-S= is a hot-swappable fiber optic transceiver module for 10 Gigabit Ethernet networks. Designed for use in data centres, enterprise server rooms and service provider transport applications, it fits into an SFP+ port on compatible Cisco switches and provides optical interoperability with other 10GBASE form factors on the same link.

Advantages

This SFP module supports a 10,000 Mbit/s data rate and follows MSA specifications for interoperability. Its compact SFP+ form factor and hot-swappable design simplify installation and maintenance. The module’s physical dimensions (13.4 mm × 56.5 mm × 8.5 mm) and Cisco warranty coverage make it suitable for stable, long-term deployments.

Suitable for

• Data centre 10 Gigabit uplinks
• Enterprise server room connections
• Service provider short-reach optical links

Key specifications

• Manufacturer: Cisco
• Model (MPN): SFP-10G-SR-S=
• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gb/s)
• Form factor: SFP+ (hot-swappable)
• Dimensions: 13.4 mm (W) × 56.5 mm (D) × 8.5 mm (H)
• Warranty: 5-year standard warranty

How to use

Insert the SFP-10G-SR-S= module into an available SFP+ port on a compatible Cisco switch until it clicks into place, then secure the port according to the switch’s instructions. Connect the appropriate multimode fiber cable with compatible connectors to the module. The device is hot-swappable, so it can be installed or removed while the switch is powered on; follow standard handling procedures for fiber transceivers and observe electrostatic discharge precautions.

Recommendations

Use this module with MSA-compliant SFP+ ports and multimode fiber rated for short-reach 10 Gigabit applications. Verify compatibility with your specific switch model and firmware, and follow Cisco’s installation and safety guidelines to ensure reliable operation.
