Μονάδα πρίζας RJ-45 + HDMI Kindermann 7456 000 544

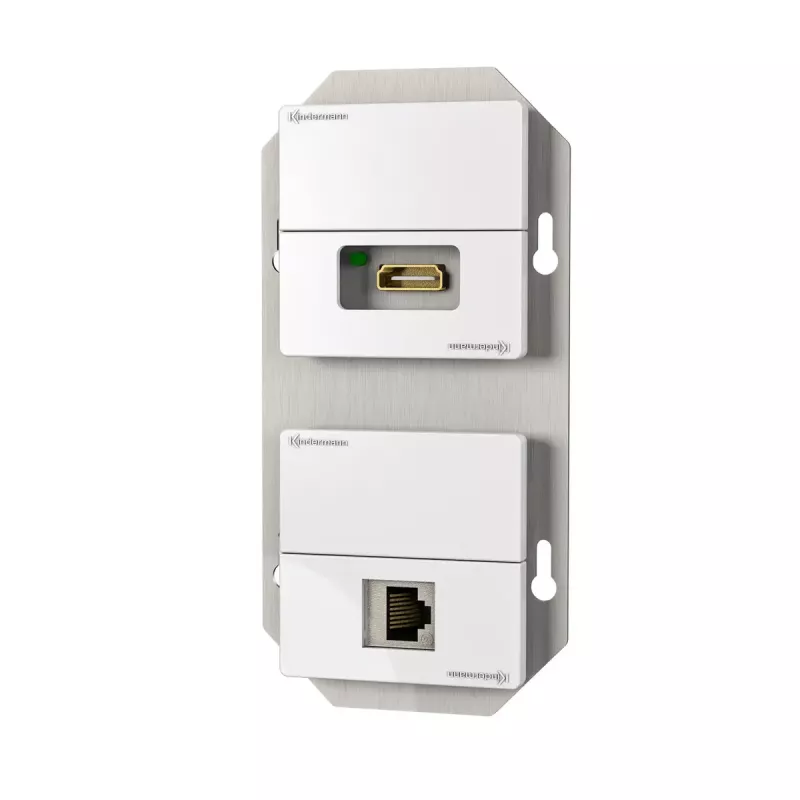

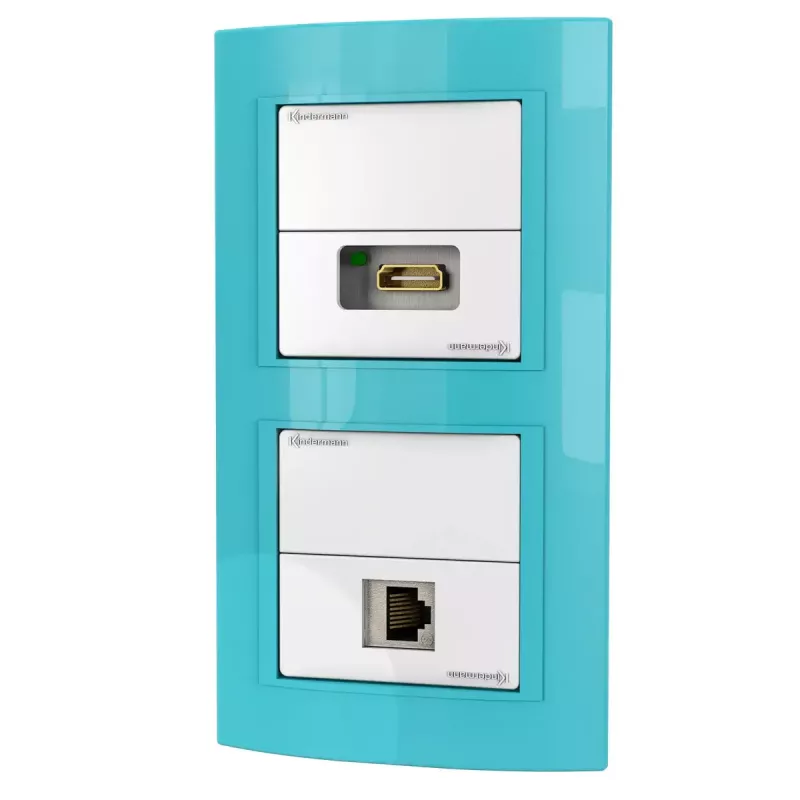

The Kindermann 7456 000 544 wall plate receiver combines an RJ-45 socket and an HDMI output in a double full-size plate with a white plastic cover (RAL 9010). It accepts an HDBaseT-compatible twisted-pair signal and outputs HDMI via Cat‑5E/6 cable over distances up to 70 m. The plate is designed for installations requiring a minimum mounting depth of 6 cm and provides a compact, installation-friendly interface for AV and data connections.

Advantages

This socket-outlet supports HDBaseT-compatible transmission, enabling HDMI output over standard Cat‑5E/6 cabling to distances up to 70 m. It integrates both RJ-45 and HDMI in a double full-size plate for a tidy, flush-mounted installation and comes with a white (RAL 9010) plastic cover that fits common wall-box depths with a minimum of 6 cm. The unit is suitable for structured cabling environments and reduces the need for long HDMI cables while maintaining clear signal routing.

Suitable for

Key specifications

How to use

Install the double full-size plate in a compatible wall box with at least 6 cm depth. Terminate the incoming HDBaseT-compatible twisted-pair cable (Cat‑5E or Cat‑6) to the RJ-45 connector on the plate and connect an HDMI cable to the HDMI output for the display or downstream device. Ensure polarity and cable standards are observed when terminating to maintain signal integrity. Use a compatible HDBaseT transmitter at the source to send HDMI over the twisted pair cable to this receiver plate.

Recommendations

For reliable operation, use quality Cat‑5E or Cat‑6 cable and keep cable runs under the specified 70 m where possible. Use an HDBaseT-compliant transmitter and verify HDMI cable quality between the plate and display. Avoid bending cables sharply and follow local installation standards for wall plates and data cabling.
