Μονάδα πρίζας 2 x XLR Kindermann 7444000579

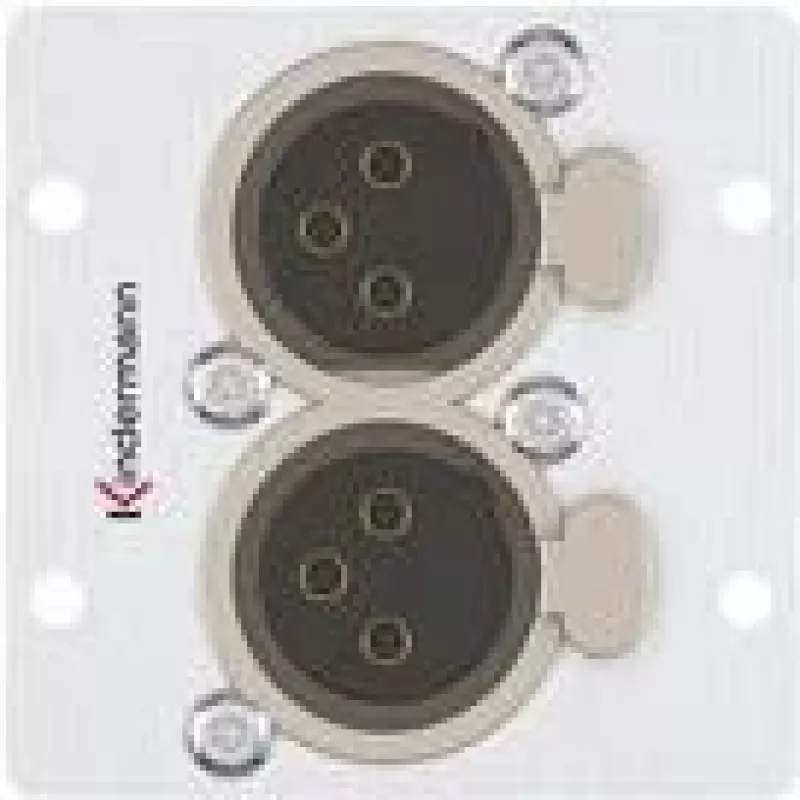

The Kindermann 7444000579 is a compact, full-size anodized aluminium plate with two XLR 3-pin female sockets. Designed for secure clamp connections, this aluminium socket outlet provides durable housing and a compact footprint (50 × 50 mm, minimum depth 50 mm) suitable for professional and installation audio environments.

Advantages

The aluminium construction ensures corrosion resistance and robust mechanical protection for the two XLR sockets. The clamp connection simplifies cable termination without soldering and the full-size plate format allows easy mounting in standard panel openings. Its compact dimensions make it suitable for installations with limited depth.

Suitable for

Key specifications

How to use

Mount the full-size plate into the corresponding panel or wall opening and secure it with appropriate screws. Terminate the incoming cables to the XLR sockets using the clamp connection according to signal polarity (pin 1 = ground, pin 2 = hot, pin 3 = cold). After cable termination, verify mechanical stability and test the audio connections before finalising the installation.

Recommendations

For reliable performance, use shielded audio cables and observe correct pin wiring for balanced signals. Allow at least 50 mm mounting depth and ensure the plate is grounded via the chassis if used in fixed installations.
