Μονάδα πομποδέκτη SFP28 BlueOptics 474900A-BO LC αλουμίνιο 20 g

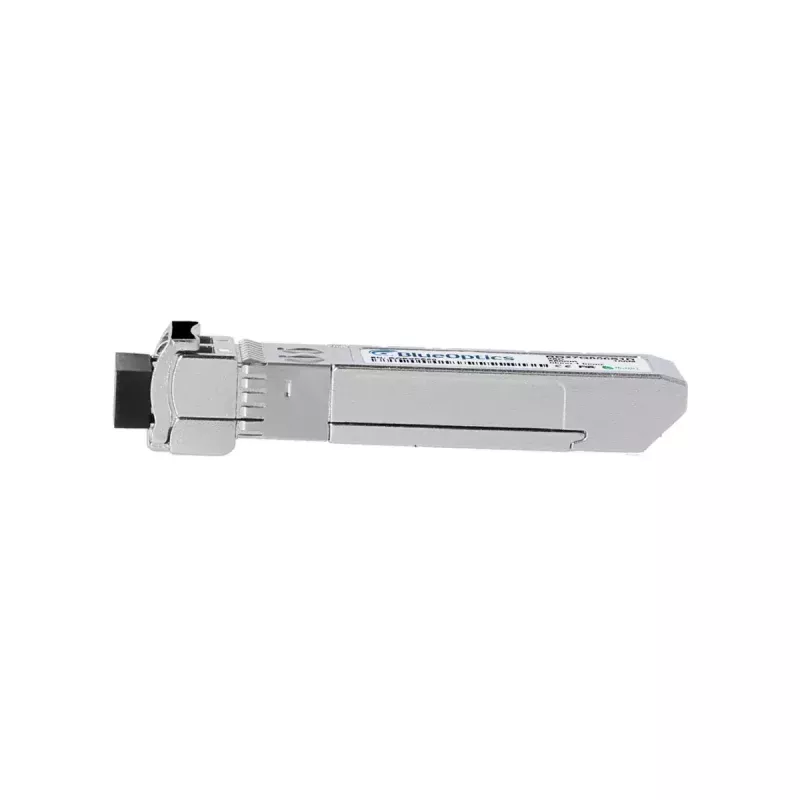

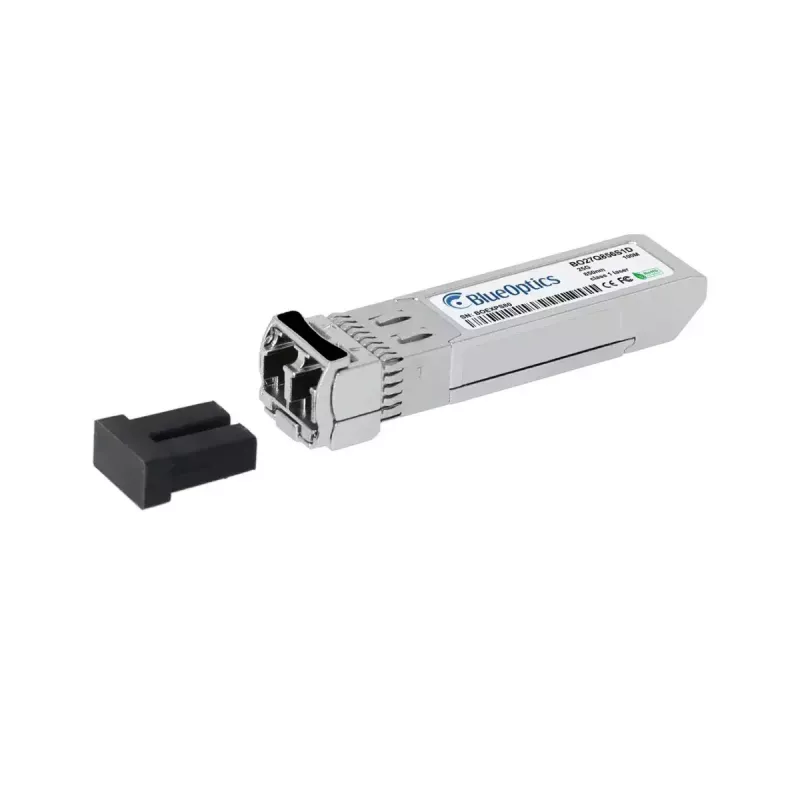

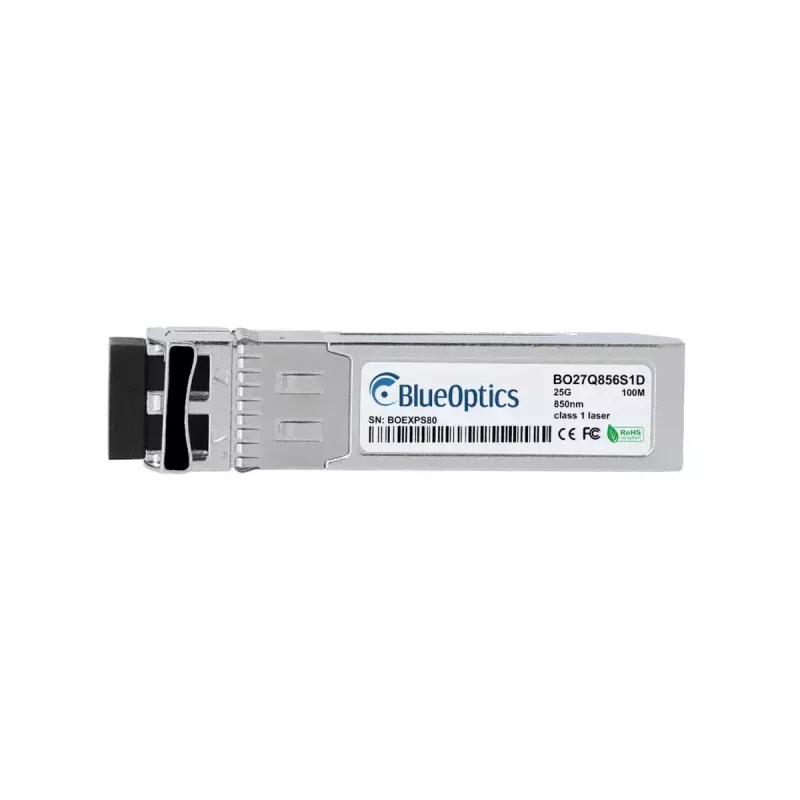

The BlueOptics 474900A-BO SFP28 transceiver module is a compact fiber optic module designed for 25G high-speed data transmission. It uses an SFP28 interface with an LC duplex connector and is housed in an aluminium enclosure weighing approximately 20 g. The module is intended for multimode fiber links and follows MSA form-factor compatibility for straightforward integration into supported network equipment.

Advantages

This SFP28 transceiver offers a lightweight aluminium housing and a standard LC connector for easy installation. Designed to comply with MSA specifications, it supports reliable optical signal transmission over multimode fiber and is suitable for high-throughput Ethernet and related protocols. The module is factory-tested for mechanical and electrical compatibility with systems that accept SFP28 form-factor transceivers.

Suitable for

• 25G Ethernet uplinks and server connections
• Switch-to-switch and switch-to-router multimode fiber links
• Data center aggregation and distribution layers
• High-speed storage networking and backup infrastructure

Key specifications

• Interface type: SFP28
• Connector: LC duplex
• Typical supported data rate: 25 Gbps
• Optical medium: multimode fiber
• Housing material and colour: aluminium
• Weight: approx. 0.02 kg

How to use

Install the transceiver into an SFP28-compatible port on network equipment while the device is powered down or as specified by the equipment maker. Connect an LC duplex multimode fiber patch cable to the module’s LC connector, observing correct transmit/receive orientation. Verify link status in the host device interface and, if applicable, enable any required port settings or profiles for 25G operation. Follow the host equipment documentation for hot-plugging, diagnostics, and firmware or driver requirements.

Recommendations

Use quality multimode fiber patch cords and adhere to recommended fiber connector cleaning procedures to ensure optimal optical performance. Confirm that the target hardware supports SFP28 modules and the intended 25G application; enable digital diagnostic monitoring (DDM/DOM) in compatible systems for real-time operational parameters if supported by the host.
