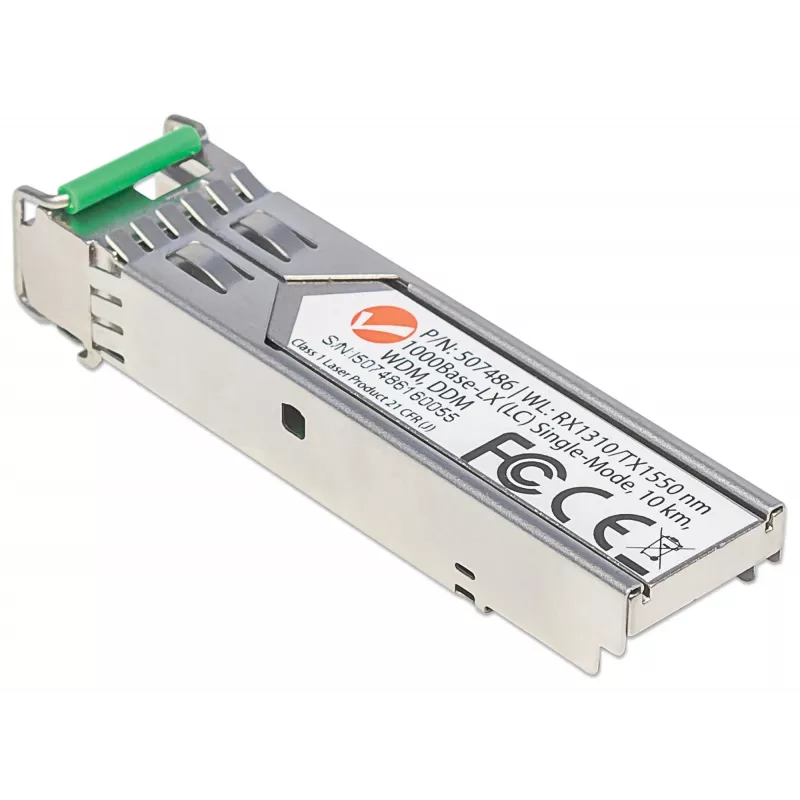

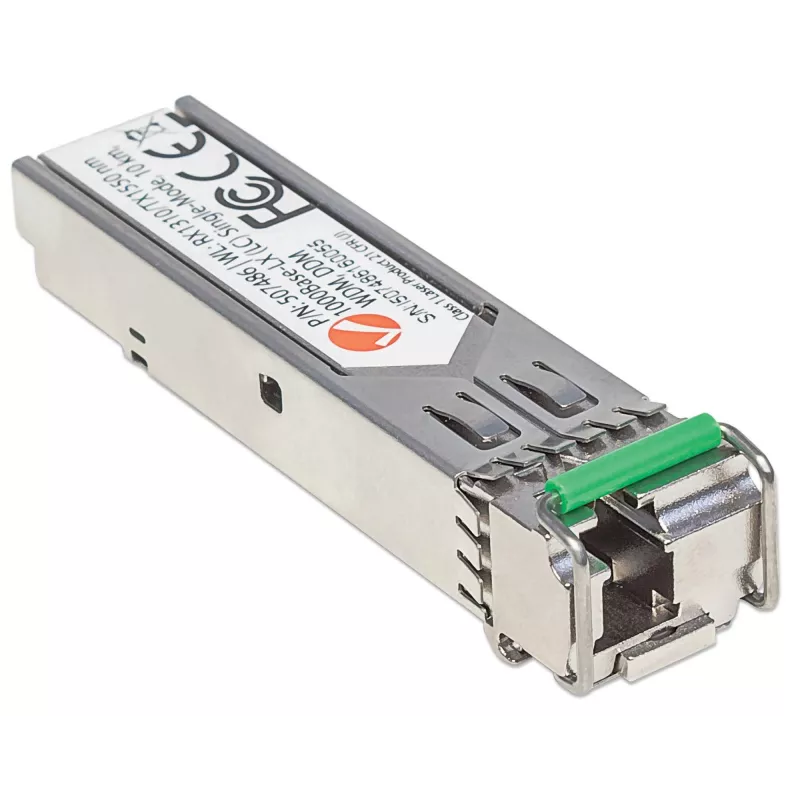

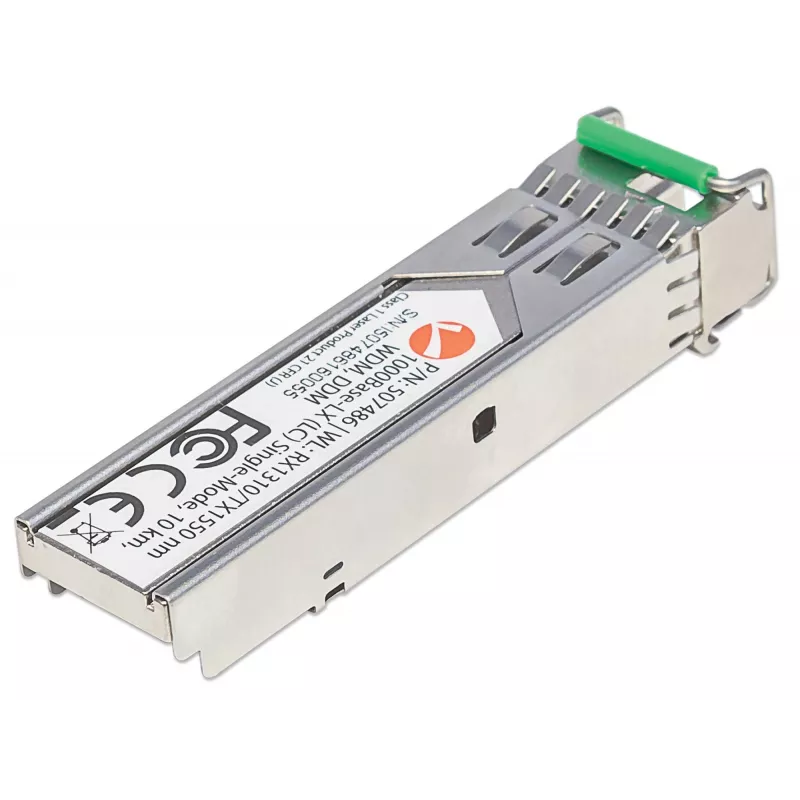

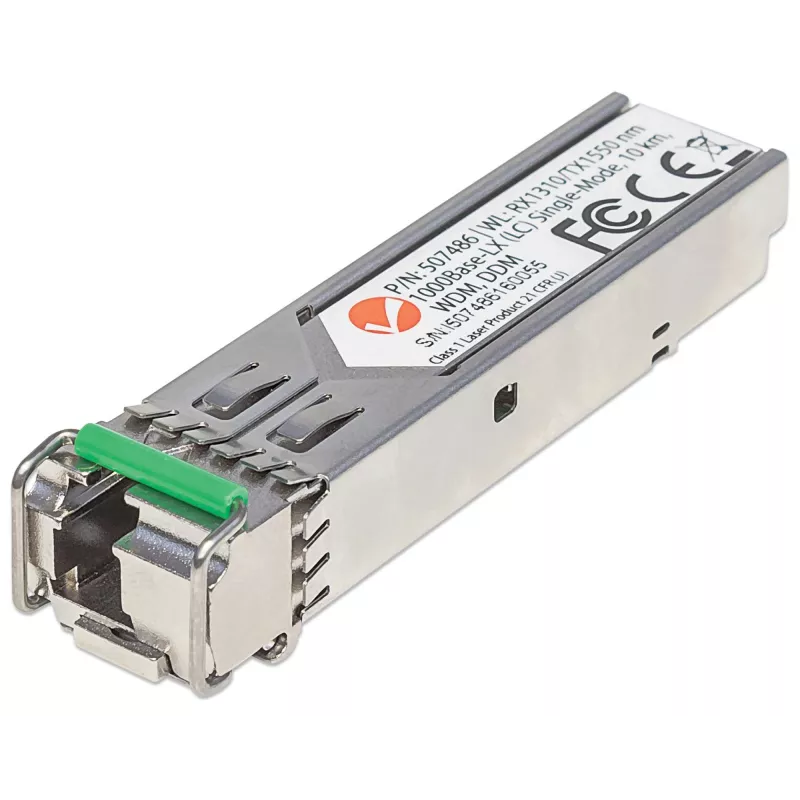

Μονάδα πομποδέκτη SFP Intellinet GLC-BX-D Equivalent

Gigabit Fibre SFP Optical Transceiver Module

The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability.

Small Size for High-Density Fibre Connections
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room.

Compatibility
Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 507486) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-BX-D, compatibility to your Cisco gear is provided.

Hot-Pluggable
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module (model 507486) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic.

Digital Diagnostics Monitoring (DDM)
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module (model 507486) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.

WDM (bi-directional wavelength division multiplexing) Technology Advantage
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without laying a second fibre cable. Note that this transceiver (model 507486) must be used in conjunction with item 507509.

Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelengths: receive (RX) 1310nm and transmit (TX) 1550nm, WDM (Rx1310/Tx1550), MSA Compliant, Equivalent to Cisco GLC-BX-D, Ethernet, Fibre. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Metallic. Power consumption (typical): 1 W. Compliance certificates: CE, RoHS, Federal Communications Commission (FCC). Width: 14 mm, Depth: 57 mm, Height: 12 mm

How to use

Insert the SFP transceiver into an empty SFP slot on a compatible switch or router while the device remains powered on; the module is hot-pluggable and does not require a system reboot. Connect an LC single-mode fibre cable to the transceiver. For WDM bi-directional links, install the complementary module with the matching opposite wavelength at the remote end. Verify link status and monitor DDM parameters through the switch management interface.

Recommendations

Use this module in pairs for WDM bi-directional operation and confirm that connected equipment accepts MSA-compliant SFPs or sensors broadcasting vendor PN GLC-BX-D. Keep fibre connectors clean and monitor DDM values to ensure stable optical performance.
