Μονάδα πομποδέκτη SFP BlueOptics SFPP-S13-40-BO 10000 Mbit/s

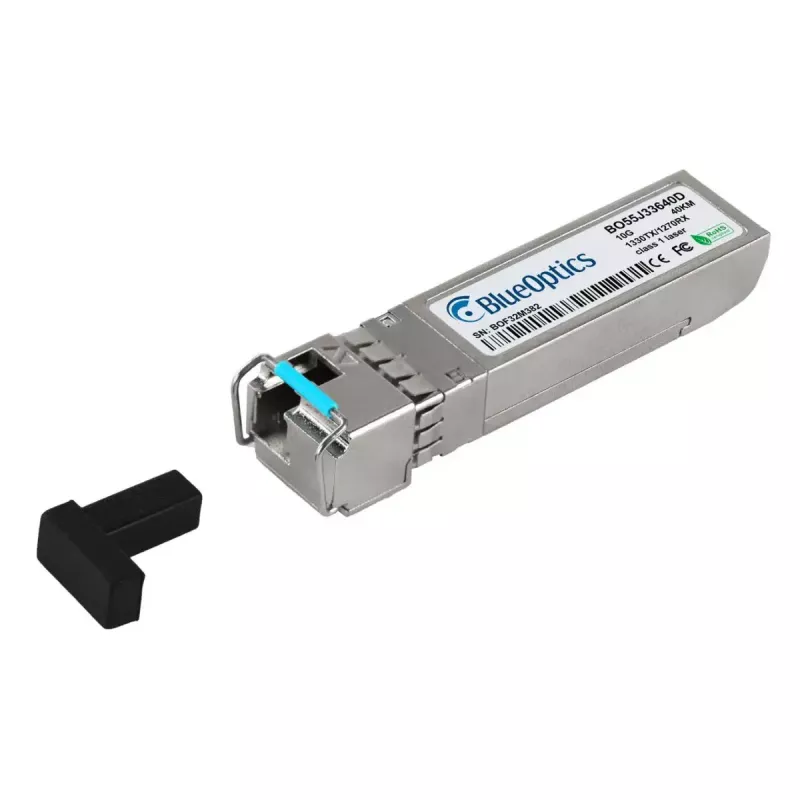

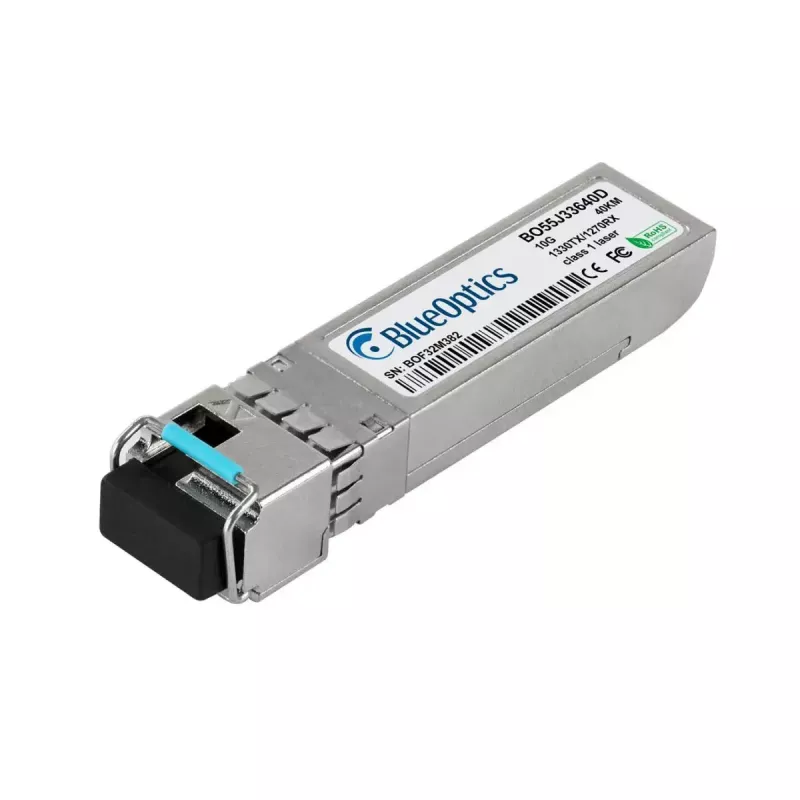

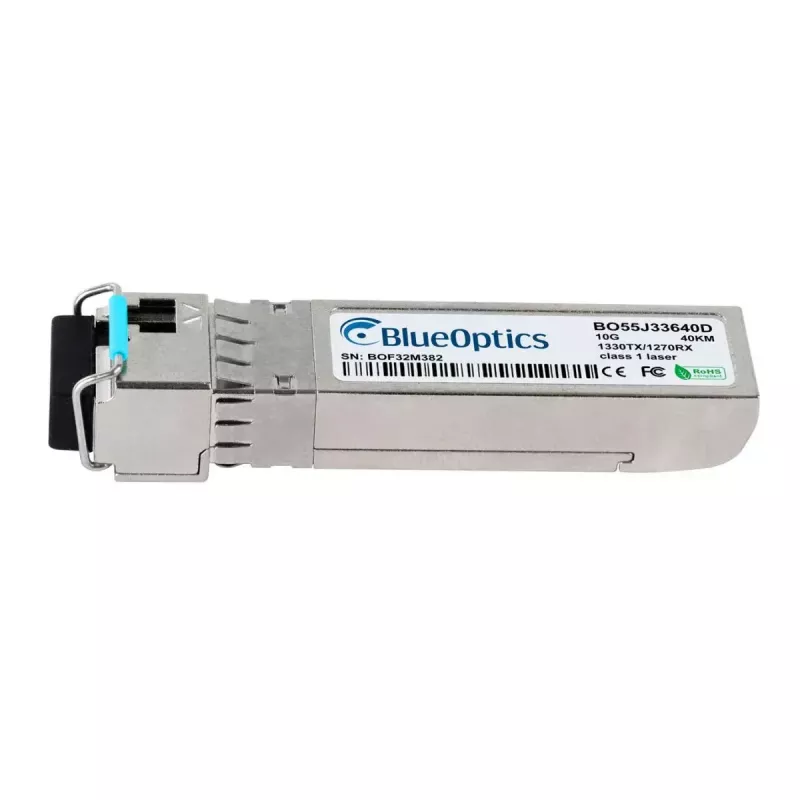

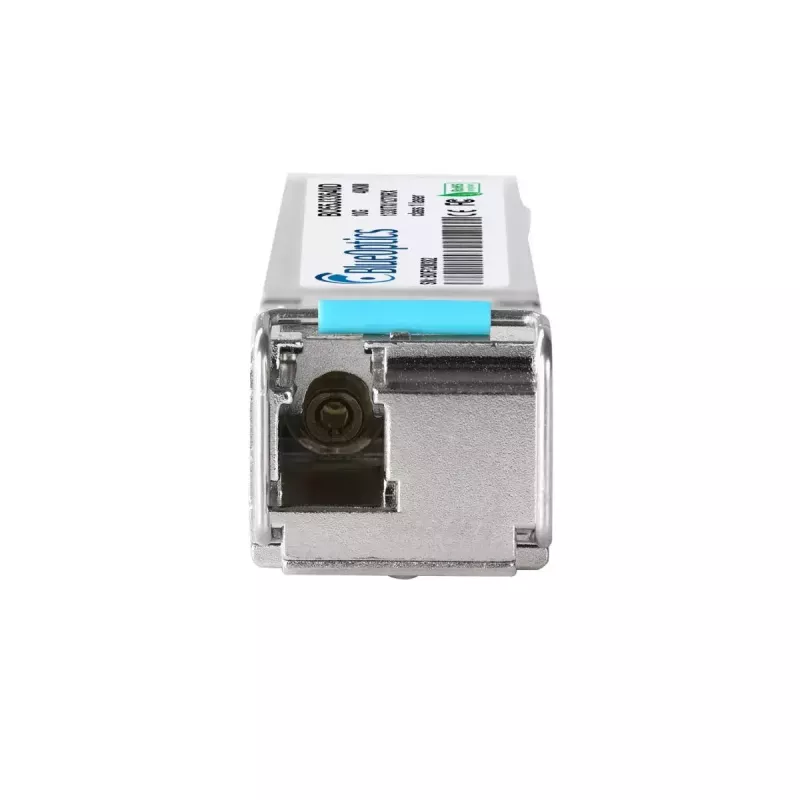

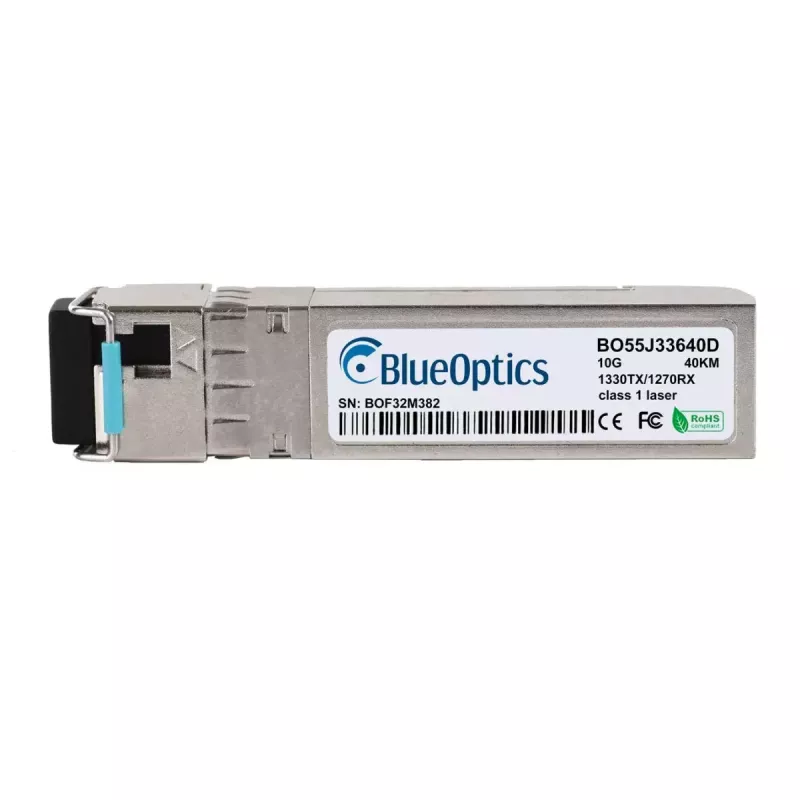

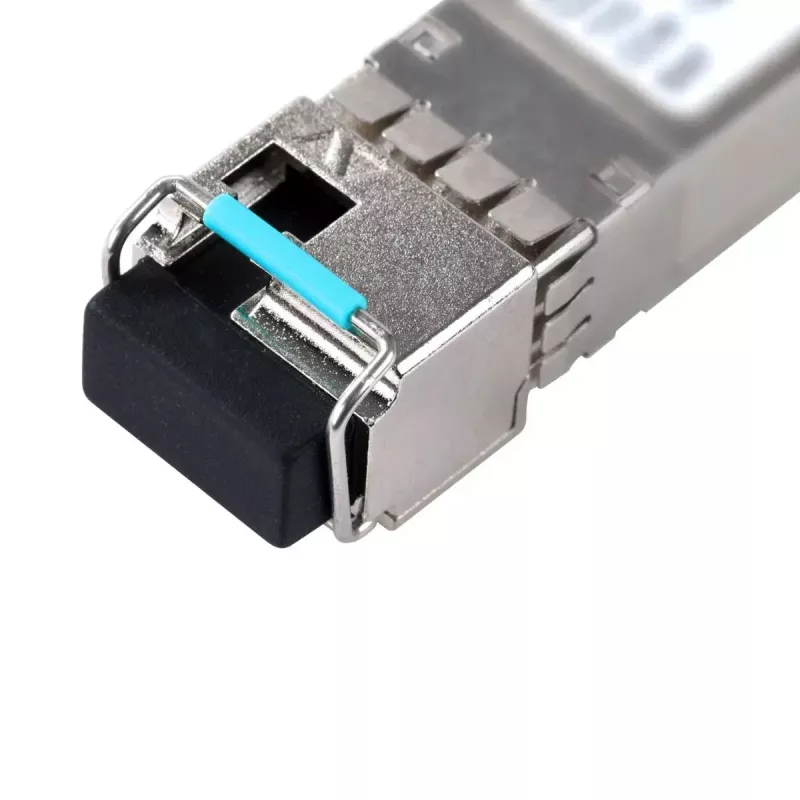

The BlueOptics SFPP-S13-40-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s Ethernet and other high-speed optical applications. Encased in a metal housing and operating from a 3.3 V supply, this compact SFP+ module weighs approximately 3 g and supports single-mode fiber links with a maximum transfer distance of up to 10,000 m. The module uses an SFP+ connector form factor and is offered in a silver finish suitable for data center and network-infrastructure installations.

Advantages

The BlueOptics SFPP-S13-40-BO provides a standardized SFP+ form factor for easy hot-plug installation and broad compatibility with equipment that supports SFP+ transceivers. Its metal housing offers mechanical robustness and thermal stability while the low weight facilitates handling and mounting. Supporting up to 10000 Mbit/s and long-range single-mode connectivity, the module is designed to deliver stable, interference-resistant optical links for backbone and aggregation layers.

Suitable for

Key specifications

How to use

Install the BlueOptics SFPP-S13-40-BO into any compatible SFP+ port while the host device is powered on or during maintenance windows to make use of hot-plug capability. Connect single-mode fiber with the appropriate LC simplex patch cords, ensuring correct transmitter/receiver alignment and clean fiber endfaces. Configure the host network equipment for 10 Gbit/s operation if needed and verify link status via the device management interface. Observe device and chassis manufacturer guidance for electrostatic discharge (ESD) precautions during handling and installation.

Recommendations

For best performance, use single-mode fiber certified for long-haul links and high-quality LC patch cords. Clean fiber connectors before mating, verify compatibility with the host device's SFP+ port, and enable any available digital diagnostic monitoring (DDM/DOM) on supported hardware to monitor supply voltage, optical power and temperature for proactive maintenance.
