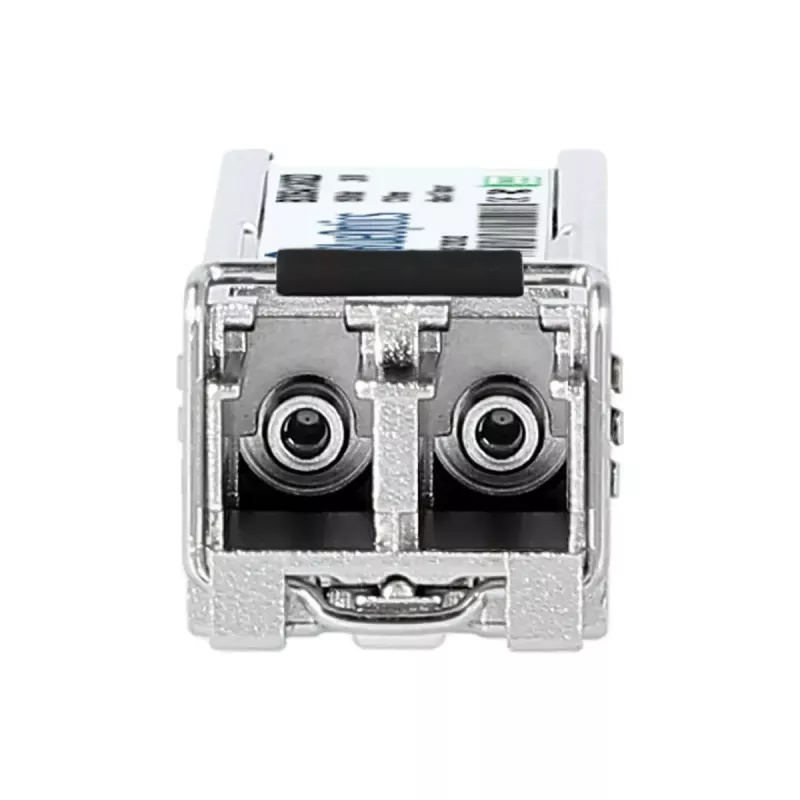

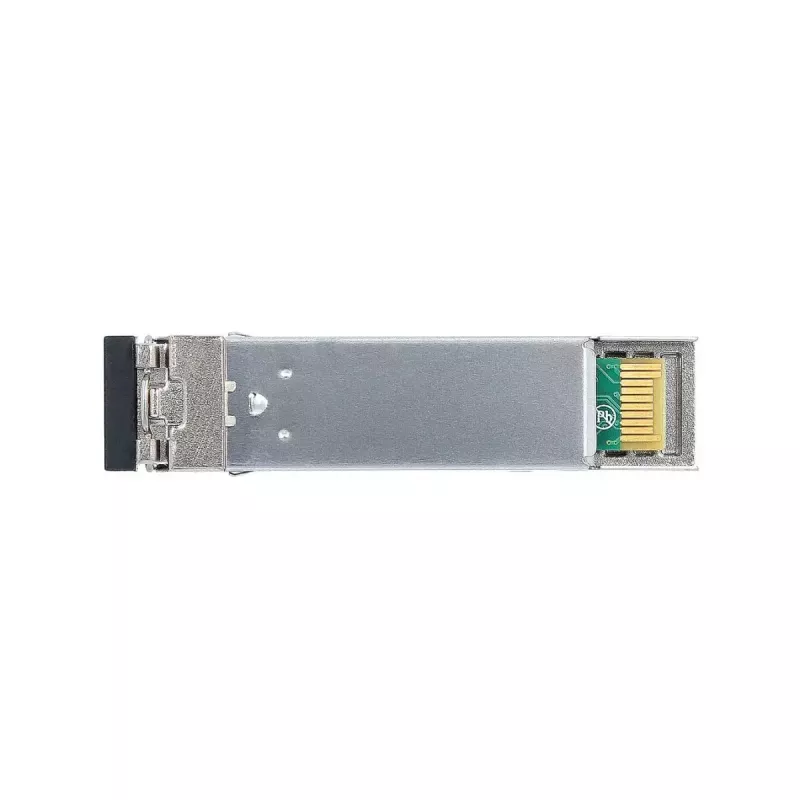

Μονάδα πομποδέκτη SFP BlueOptics SFP-100-MM-BO 155 Mbit/s ασημί

The BlueOptics SFP-100-MM-BO is a small form-factor pluggable (SFP) fiber optic transceiver module designed for multimode links with a maximum data rate of 155 Mbit/s. Housed in a metal enclosure and weighing approximately 20 g, the module follows MSA SFP mechanical and electrical form factors and provides a duplex LC optical interface for bidirectional multimode fiber communication. The transceiver is intended for use in network equipment that accepts standard SFP modules and supports 100BASE-FX or similar protocols operating up to the stated data rate and distance.

Advantages

The module’s metal housing contributes to mechanical robustness and thermal stability while its compact SFP form factor enables hot-pluggable installation in switches, routers and other compatible hardware. With an MTBF of around 1,000,000 hours and a lightweight build, the BlueOptics transceiver delivers long operational lifetime and low installation footprint. Compliance with common MSA SFP characteristics ensures interoperability with equipment that accepts standard SFP transceivers.

Suitable for

• 100BASE-FX and multimode fiber Ethernet links up to the supported data rate
• Hot-pluggable optical uplinks in switches and routers
• Storage and network devices that accept SFP transceivers with LC duplex connectors

Key specifications

• Interface type: SFP (small form-factor pluggable)
• Maximum data transfer rate: 155 Mbit/s
• Media: multimode fiber (LC duplex connector)
• Housing: metal enclosure
• Weight: 0.02 kg
• Mean time between failures (MTBF): approximately 1,000,000 hours
• Device colour: silver

How to use

Install the BlueOptics SFP-100-MM-BO by inserting it into an SFP-compatible module slot on the target device until it latches. Connect multimode LC duplex fiber patch cords to the module’s optical ports, observing transmit/receive orientation. After insertion and cable connection, configure the host device for the appropriate interface settings and verify link status via the device management interface. The module is hot-pluggable; remove it by releasing the latch or tab and pulling the transceiver straight out when the host indicates it is safe to remove.

Recommendations

Use high-quality multimode LC duplex patch cords and compatible SFP-capable hardware. Ensure the host device supports the required protocol and data rate, and verify optical link parameters after installation. Protect unused optical ports with dust caps and avoid bending fiber beyond its specified minimum bend radius to maintain link performance.
