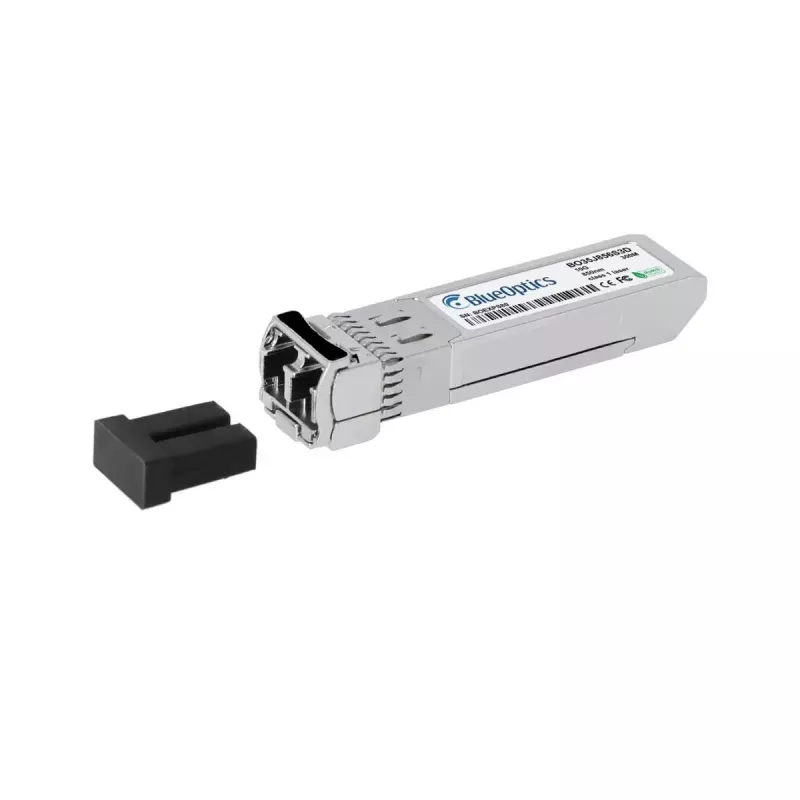

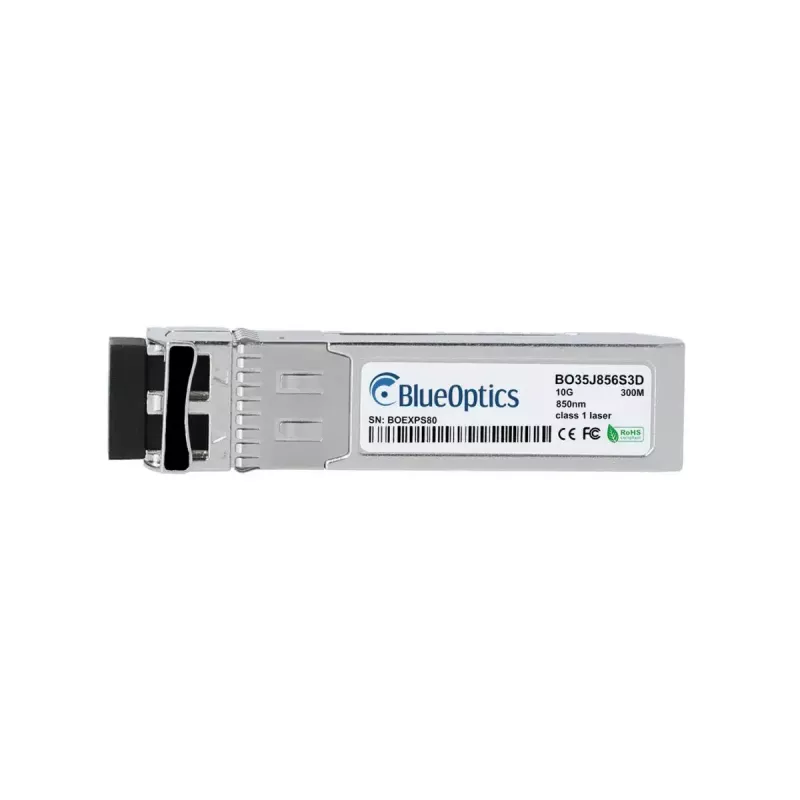

Μονάδα πομποδέκτη SFP+ BlueOptics BO35J856S3D 10000 Mbit/s

The BlueOptics BO35J856S3D SFP+ transceiver module provides 10 Gbit/s fiber-optic connectivity for networking equipment that supports SFP+ interfaces. Designed for multimode fiber with an LC duplex connector, this compact module (nickel coloured, weight 0.02 kg) implements the 10GBASE‑SR optical standard with 850 nm transmit and receive wavelengths and is suitable for short-range high-speed links. The module is RoHS, CE and FCC compliant and produced under ISO 9001 quality processes to ensure consistent manufacturing and reliability.

Advantages

The BlueOptics BO35J856S3D offers 10 Gbit/s data throughput in a small, hot‑pluggable SFP+ form factor compatible with devices that accept SFP+ modules. It supports standard LC duplex multimode fiber connections and includes digital diagnostics capabilities for monitoring supply voltage, laser current, transmit power, receive power and temperature when the host hardware supports DDM/DOM. The module is manufactured to MSA-aligned mechanical and electrical specifications for broad interoperability.

Suitable for

• 10G Ethernet links over multimode fiber within campuses and data centers
• High-speed connections between switches, routers and storage systems
• Short-range fiber optic aggregation and uplink ports

Key specifications

• Interface type: SFP+
• Nominal data rate: 10000 Mbit/s (10 Gbit/s)
• Optical standard: 10GBASE‑SR
• Wavelength: 850 nm (Tx/Rx)

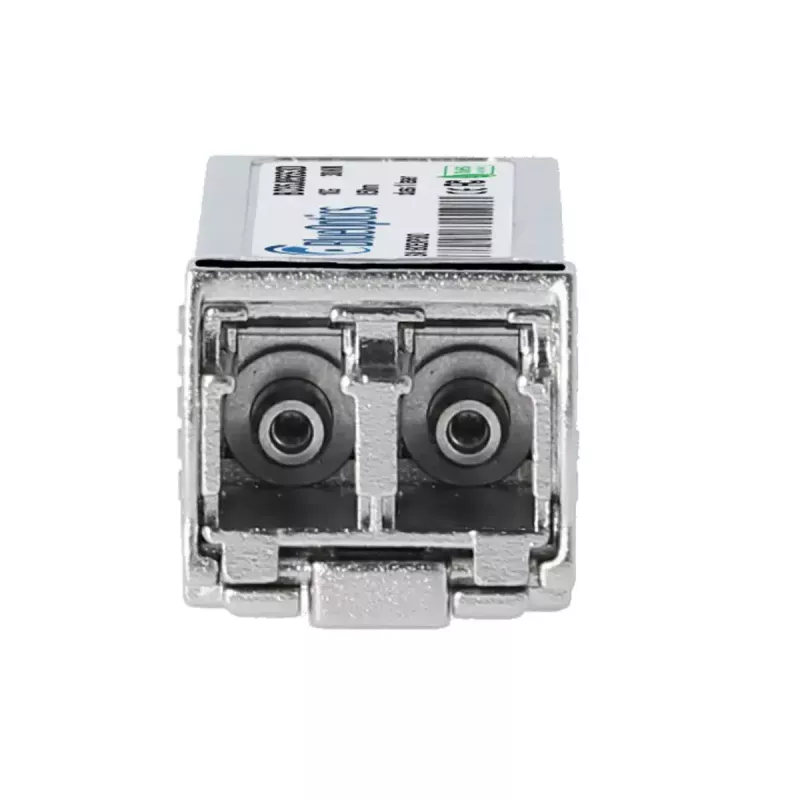

• Connector: LC duplex
• Fiber type: multimode fiber (MMF)
• Typical reach: short-range multimode links (manufacturer data: up to ~300 m depending on fiber type)
• Product colour / finish: nickel
• Weight: 0.02 kg

How to use

Insert the SFP+ module into a compatible SFP+ port on the network device while the device is powered according to the vendor's guidelines for hot-pluggable optics. Use an LC duplex multimode patch cord to connect to the corresponding transceiver on the remote device, observing correct Tx-to-Rx polarity. If the host device supports digital diagnostics (DDM/DOM), enable or query the diagnostics interface through the device management to monitor module parameters. Follow the equipment manufacturer's instructions for firmware or compatibility settings when installing third-party SFP+ modules.

Recommendations

Use OM3/OM4 multimode fiber and quality LC duplex patch cords for optimal short‑range 10GBASE‑SR performance. Confirm host device compatibility with third‑party SFP+ modules and enable digital diagnostics only if supported by your hardware to access real‑time module status.
