Μονάδα πομποδέκτη SFP+ BlueOptics AFBR-709JAMZ-BO 10000 Mbit/s

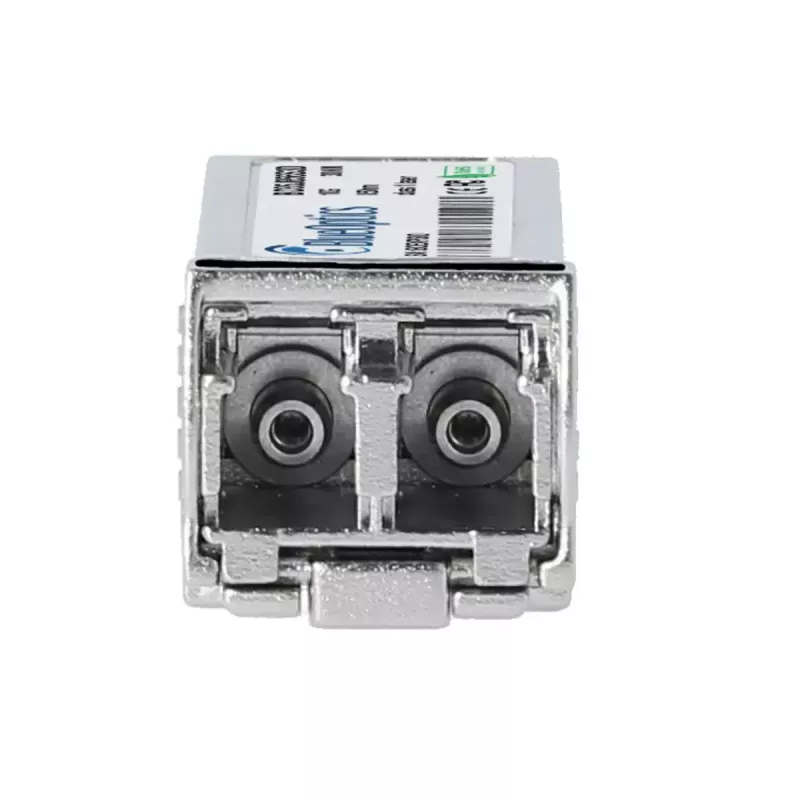

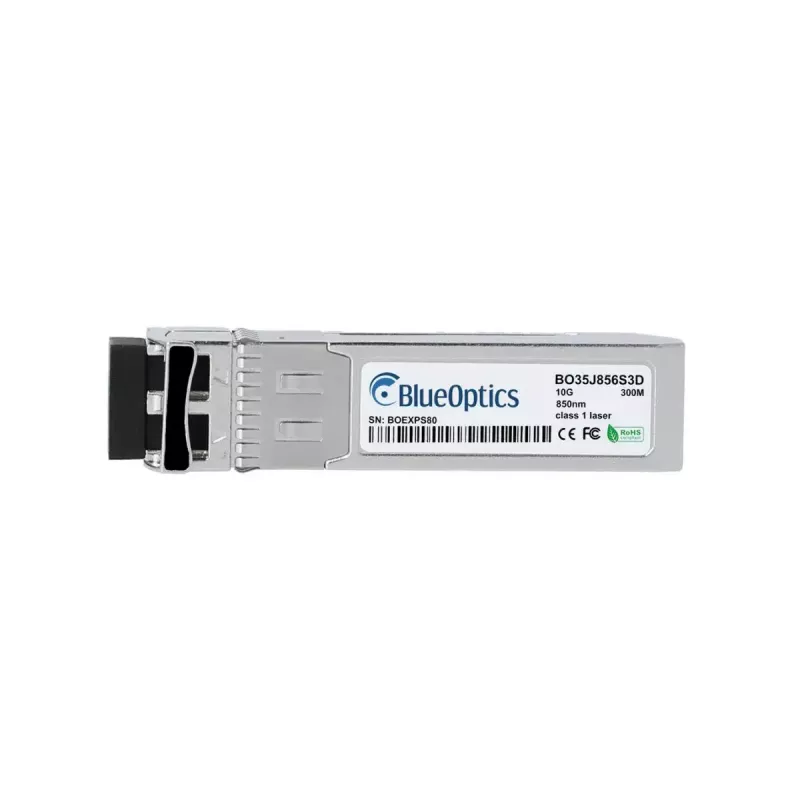

The BlueOptics AFBR-709JAMZ-BO SFP+ transceiver module is a compact fiber optic interface designed for 10G networks. Supporting a maximum data transfer rate of 10000 Mbit/s, the module comes in a metal housing that provides mechanical durability while keeping weight to just 20 g. It implements the SFP+ electrical and mechanical form factor and is intended for short-range multimode fiber connections with LC duplex termination.

Advantages

This SFP+ transceiver offers a standardized form factor compatible with MSA-compliant SFP+ slots and typical enterprise networking equipment. The metal housing improves heat dissipation and mechanical protection while the lightweight design simplifies installation and handling. A rated mean time between failures (MTBF) of 1,000,000 hours indicates long operational life and reduced maintenance intervals for stable network links.

Suitable for

• 10 Gigabit Ethernet links over multimode fiber (short range)
• Data center uplinks between switches and servers
• High-speed interconnects in campus and enterprise networks
• Compatibility testing and module replacement in SFP+ ports

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Form factor: SFP+ pluggable transceiver
• Connector type: LC duplex (for multimode fiber)
• Housing: metal
• Weight: 0.02 kg
• Typical application: short-range multimode fiber optical links
• Reliability: MTBF approximately 1,000,000 hours

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on a switch, router or server until it clicks into place, then secure any retention mechanism per the host device instructions. Connect both fibers of an LC duplex patch cable to the module—observe transmit/receive orientation—and route the cable to the peer transceiver or patch panel. Ensure the host device is powered and supports SFP+ modules; verify link speed and status via the device management interface. For initial commissioning, perform link testing and check that signal levels and errors are within acceptable ranges.

Recommendations

Use high-quality multimode LC duplex patch cords and maintain proper fiber polishing and connector cleanliness to achieve optimal performance. Verify that the host equipment supports SFP+ modules and, if available, enable and monitor digital diagnostic functions to track supply voltage, temperature, transmit and receive power for proactive maintenance.
