Μονάδα πομποδέκτη SFP+ BlueOptics 9370CSFP10G-0010-BO 10000 Mbit/s

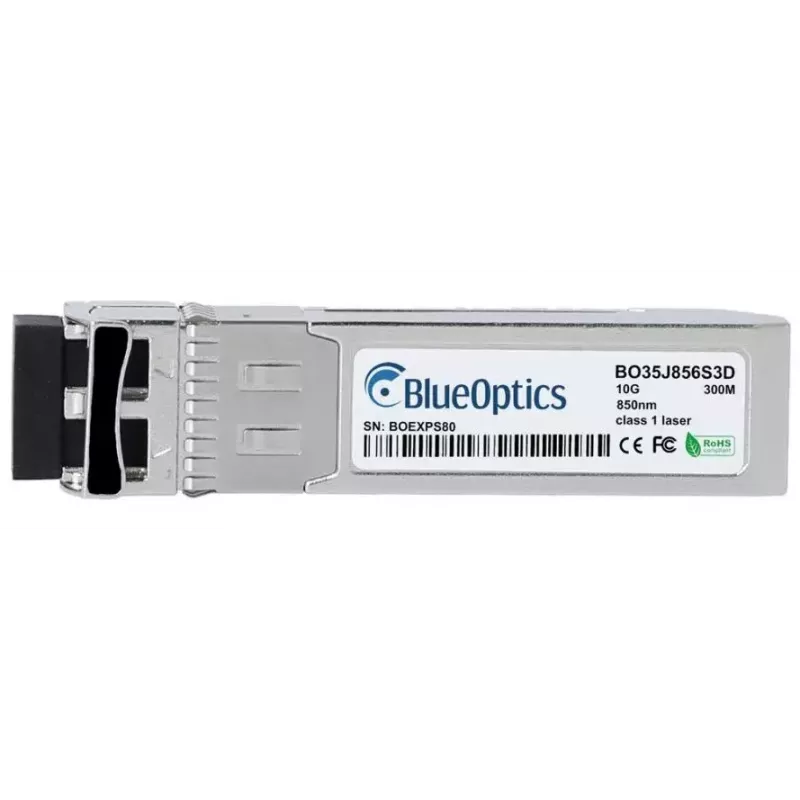

The BlueOptics 9370CSFP10G-0010-BO SFP+ transceiver module is a compact fiber optic module designed for 10GBASE-SR links and compatible systems supporting SFP+ form factor. It supports a maximum data transfer rate of 10,000 Mbit/s over multimode fiber using an LC duplex connector. Housed in a metal casing and weighing approximately 20 g, the module is intended for high-density network equipment where small size, conformity to MSA standards and reliable optical performance are required.

Advantages

This SFP+ transceiver provides 10 Gbit/s optical connectivity with a standardized SFP+ electrical and mechanical interface for interoperability with a wide range of switches, routers and storage platforms. The metal housing offers mechanical robustness and electromagnetic shielding while the compact SFP+ form factor enables high port density. A long mean time between failures (reported at 1,000,000 hours) indicates designed durability for continuous operation in network environments.

Suitable for

• 10G Ethernet uplinks and server connections over multimode fiber
• High-speed storage area network (FCoE / Fibre Channel over Ethernet) links
• Data center spine/leaf or aggregation switch deployments
• Patch panel and optical interconnects using LC duplex connectors

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)

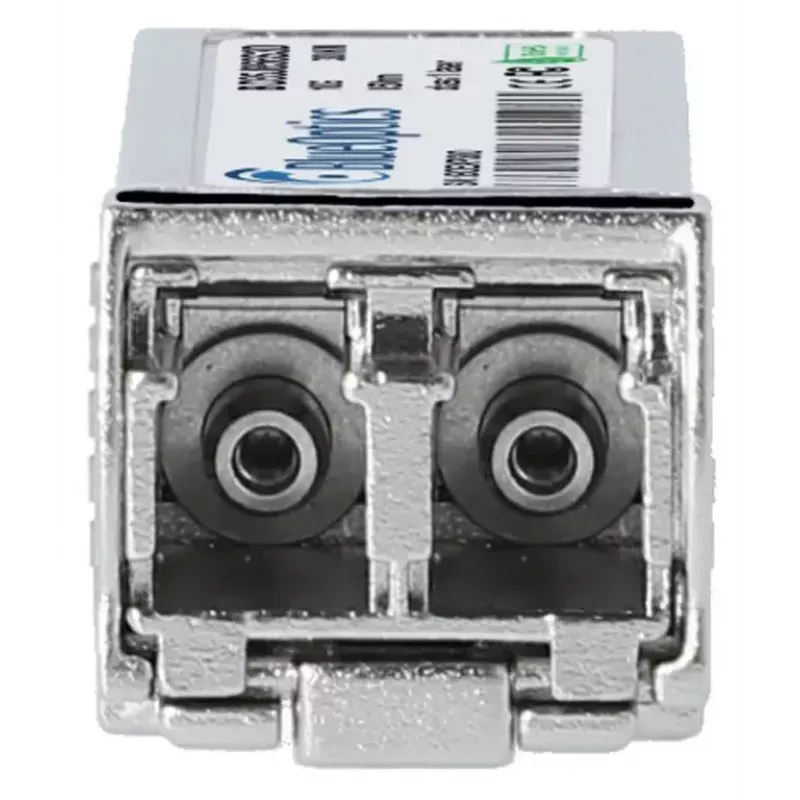

• Connector: LC duplex (for multimode fiber)
• Optical wavelength: multimode short-range (850 nm typical for SR modules)
• Housing material: metal
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Install the transceiver by sliding it into an SFP+ port until the module latches securely; observe equipment manufacturer instructions for hot-plugging. Connect LC duplex multimode fiber patch cords to the transceiver, ensuring correct transmit/receive orientation. Verify link status and speed in your switch or host adapter management interface and confirm that the remote end uses a compatible short-range 10G SFP+ transceiver. If digital diagnostics (DDM/DOM) are supported by the host hardware, monitor operating parameters such as optical power and temperature through the device management system.

Recommendations

Use high-quality multimode fiber patch cords and proper LC connectors to maintain signal integrity. Ensure the host equipment supports third-party SFP+ modules and DDM/DOM features if remote diagnostics are required. Observe ESD precautions during handling and avoid bending fibers beyond recommended radii to preserve optical performance.
